KT-289G UHF 128 channels walkie talkie ham radio

QYT KT-289G UHF 128 channels professional walkie talkie.

Using traditional ships, it has a good performance in terms of quality and call performance.



KT289 is a professional walkie talkie using traditional chips. To compared with the integrated chip walkietalkie, it has greater advantages, more stable reception and transmission of signals. It is very suitable for the use of military, police and rescue teams.

Black simple appearance without screen, mature and stable and revealing elegance, is the best choice for commercial use.

It provide 128 channels of memory, 5W output power and 400-470KHz frequency, can satisfy most of the groups and scenarios.

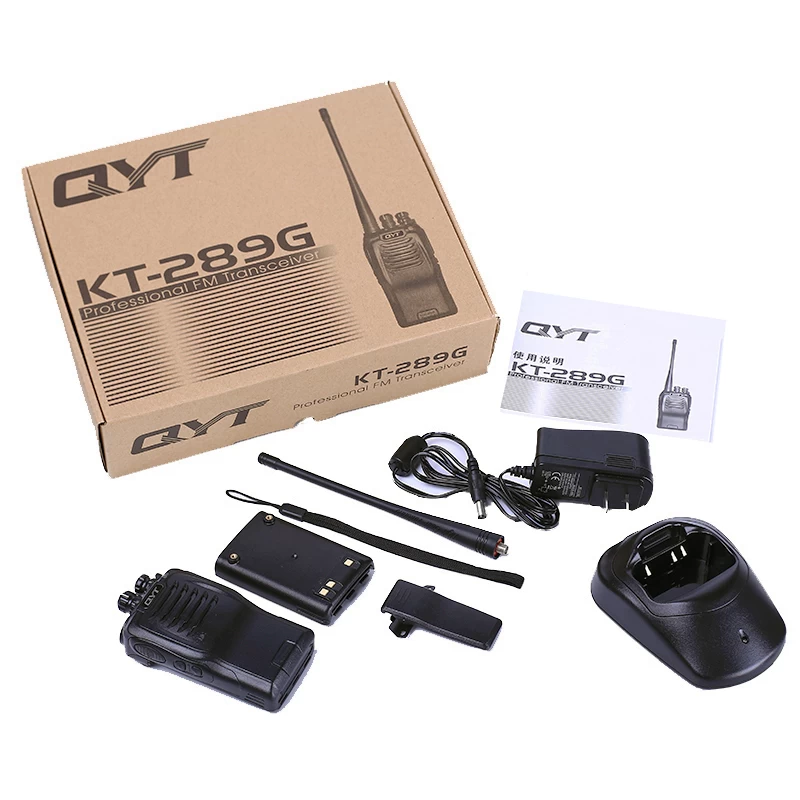

The KT-289G Kit includes:

  • Radiostation
  • 2000mAh battery pack
  • Charger base
  • AC/DC power cable
  • Battery belt clip
  • Strap

  • User's manual

General Specifications

Frequency Range

UHF: 400-470MHz

Channel Capacity

128channels

Channel Spacing

25KHz, 20KHz, 12.5KHz

Channel Step

5KHz, 6.25KHz

Working Voltage

7.4V DC ±15%

Frequency Stability

±2.5ppm

Operating Temperature

-20℃~+55℃

Dimension(mm)

260(W)*60(H)*35(D) (with antenna)

Weight

208g

Receiver (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Sensitivity

≤0.25μV

≤0.35μV

Channel chioce

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Signal to noise ratio

≥40dB

≥36dB

Audio distortion

≤5%

Audio output power

100mW/10%

Transmitter (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Output power

5W/2W/0.5W (Settable)

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60dB

Signal noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.25KHz)

Audio distortion

≤5%
