| Product name |
L Feet Color Steel Tile Roof System |
| Model Number |
EG-TR04 |
| Installation Site |
roof mounting system |
| Surface Treatment |
Sanblasted |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| Specification |
Normal，Customize |
| OEM Service |
Avaliable |

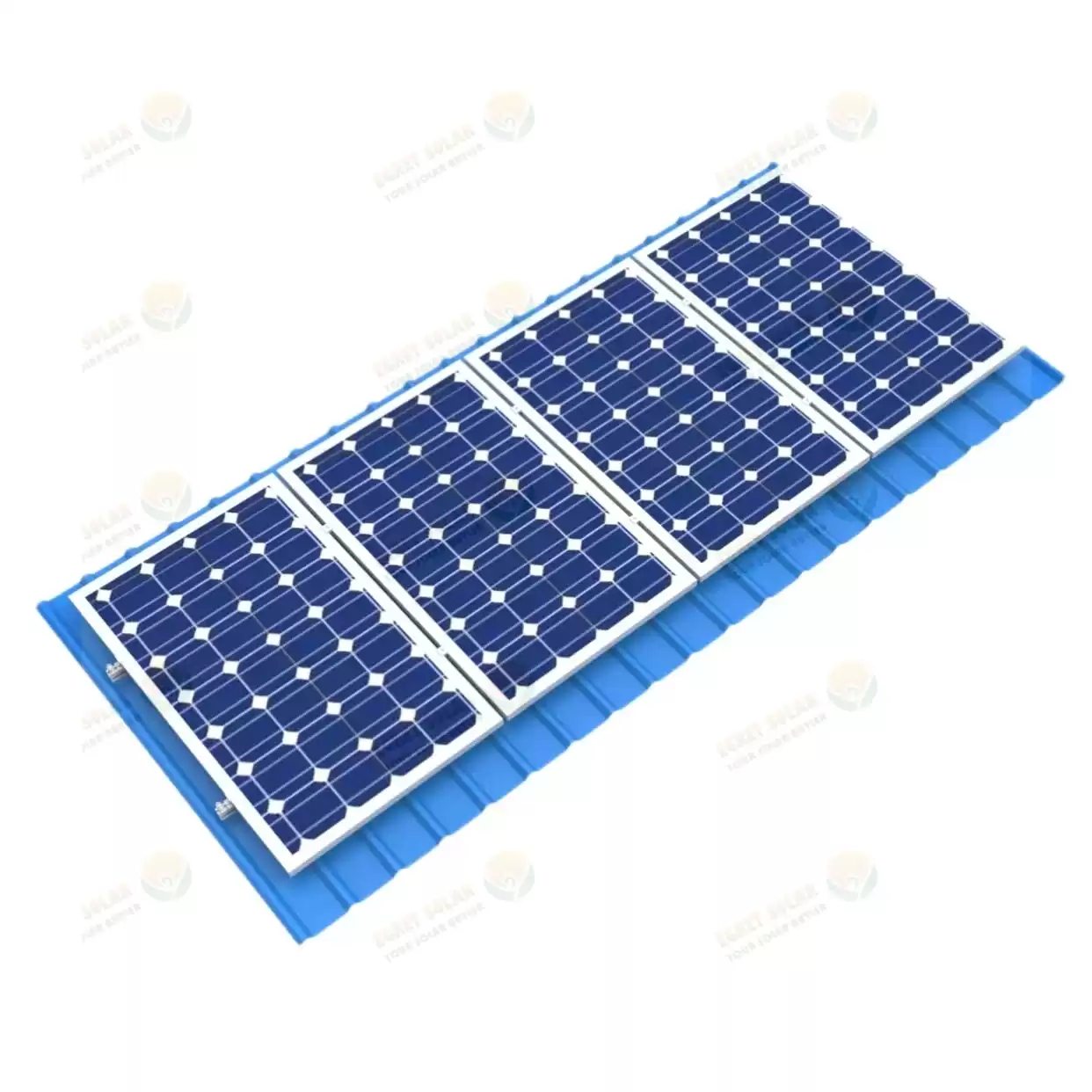

Product Description
The L Feet Color Steel Tile Roof System can be used for the installation of the color steel tile roof of the solar photovoltaic power station.No fixture required, providing a more convenient, economical and safe installation solution for solar photovoltaic power plants.

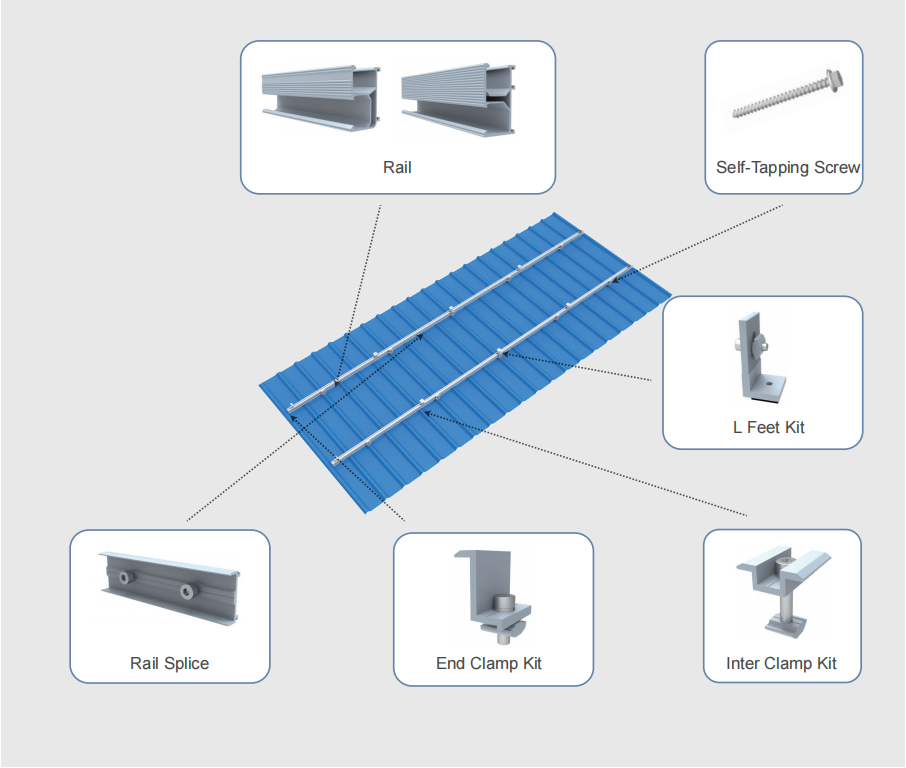

Exploded View

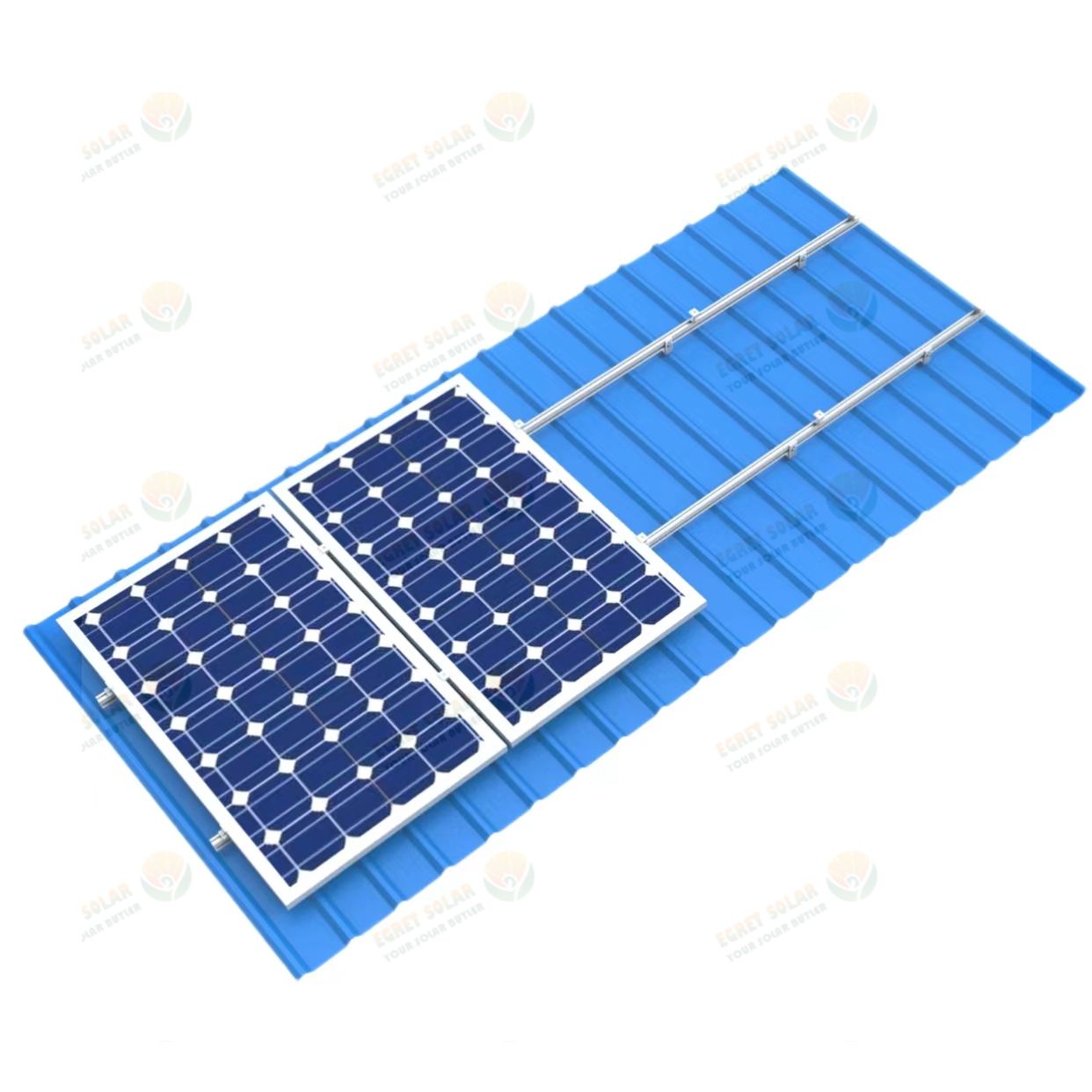

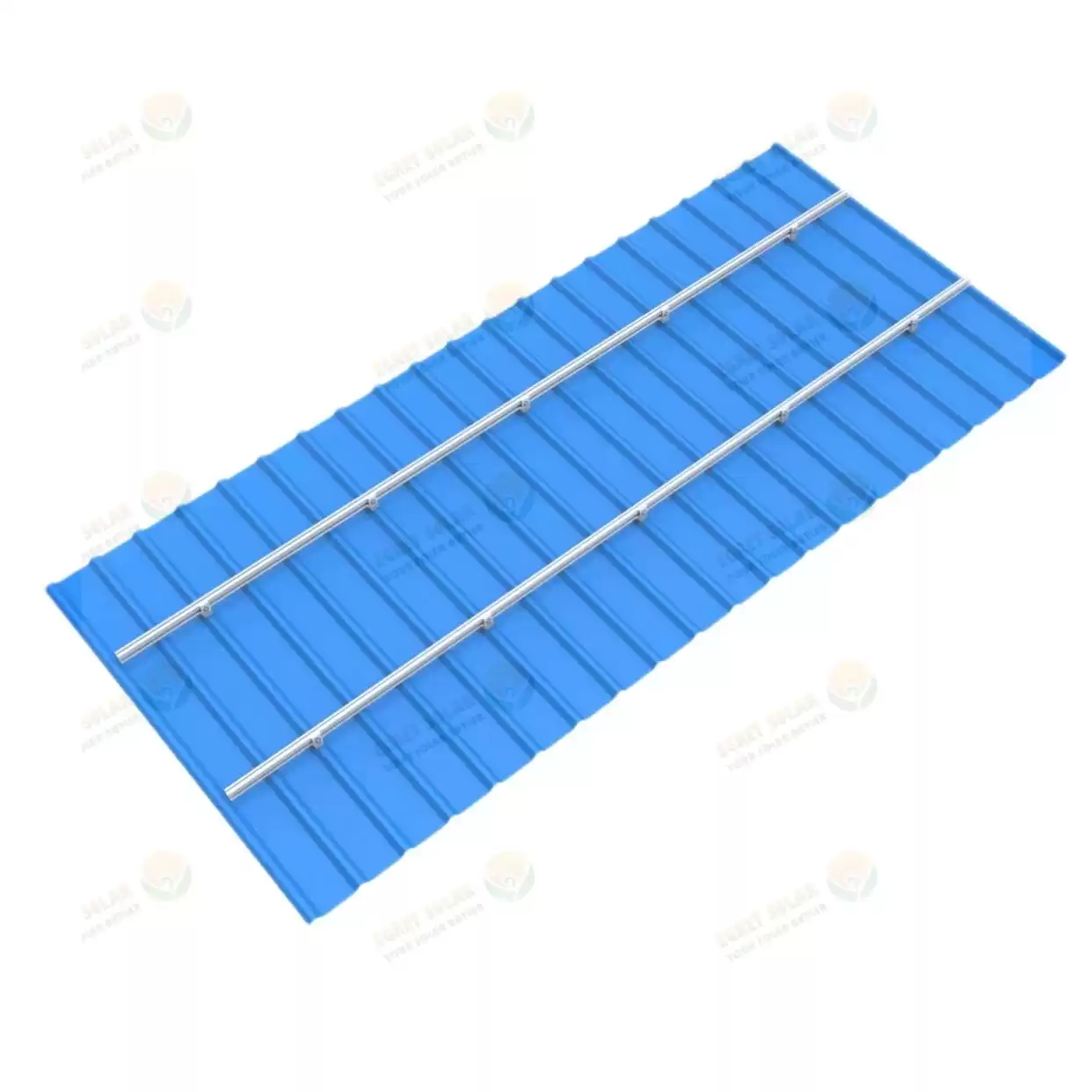

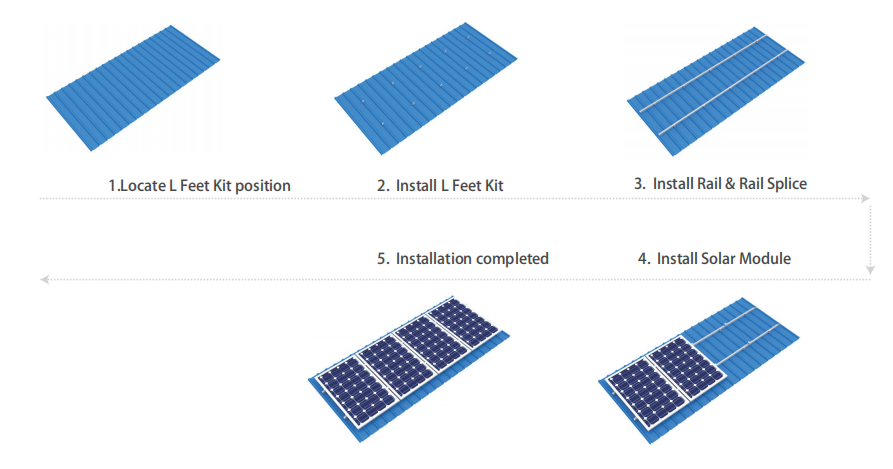

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
