Model
|
OLT-FD-10PT
|
|
Type
|
Stoppering
chamber with 8 port manifold
|
|
Freeze Drying Area
|
0.09 m2
|
|
Tray
|
3 pcs
|
|
Cold Trap Temperature
|
≤-60℃
|
|
Vacuum Degree
|
<10 Pa
|
|
Water Capture Capacity
|
3 Kg/24h
|
|
Tray Size (D*H)
|
Φ200*20mm
|
|
Freeze Drying Time
|
18-24h
|
|
Loading Capacity/Shelf (Liquid)
|
0.3L
|
|
Total Loading Capacity (Liquid)
|
0.9L
|
|
Total Qty. Of Vial Φ22
|
195
|
|
Total Qty. Of Vial Φ16
|
360
|
|
Total Qty. Of Vial Φ12
|
690
|
|
Power Supply
|
220V/50Hz,60Hz (single phase)
110V/60Hz (single phase)
|
|
Standard Accessory
|
Vacuum pump 2L/S, 8m³/h (for all models)
Conical-mouth flask 500ml*8 pcs (only for model MKFD10P/PT)
|
|
Optional Function & Accessory
|
Tray heating (for all models)
Cold trap defrosting (for all models)
Conical-mouth flask and wide-mouth flask (for MKFD10P/PT)
Import vacuum pump
|
|
External Size (W*D*H)
|
582*541*374/684mm
|

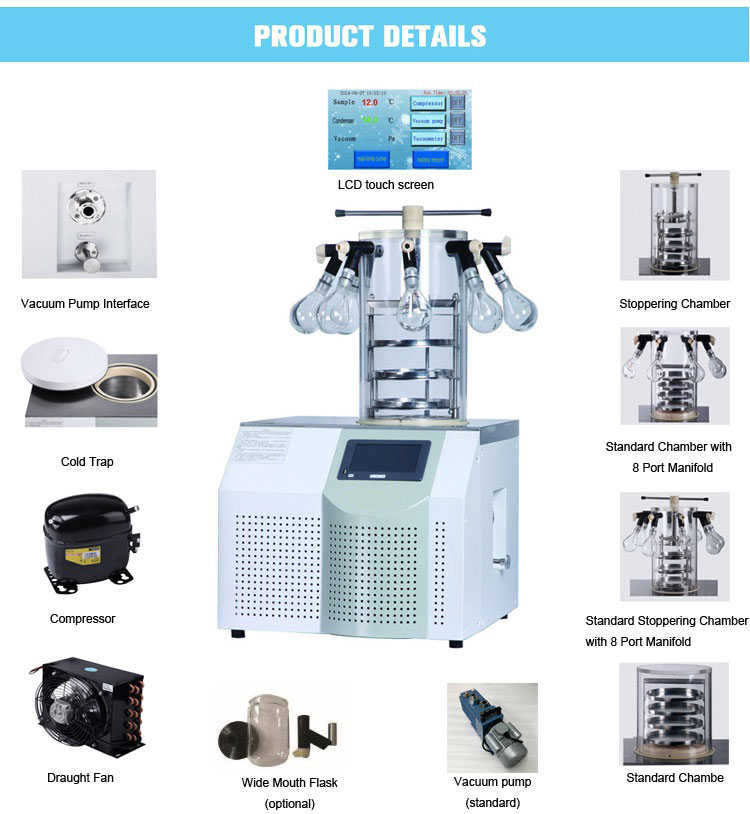

1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
