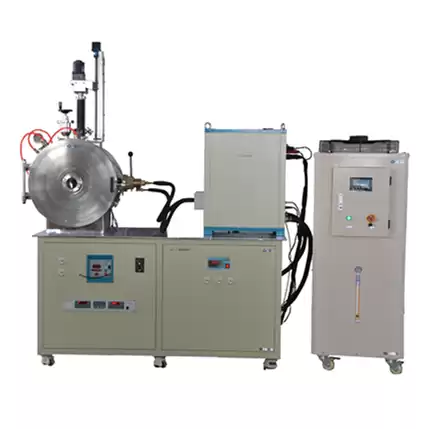

Lab 1-5 KG Vacuum Melting Furnace With Molecular Pump
Vacuum induction levitation melting furnace is to split water cooled copper crucible put in a strong alternating magnetic field, using induction eddy current heating the water cooled copper crucible metal melting, rely on electromagnetic force makes the molten metal does not have close contact with water cooled copper crucible.
This prevents the crucible from being contaminated with the smelting materials, which can melt the highly purified metal.
The liquid alloy in the water-cooled copper crucible can also be injected into the ingot mold by rotating the molten metal.
The vacuum suspension melting furnace is suitable for the smelting of active metals such as titanium zirconium and rare earth materials, and the smelting and precision casting of titanium alloys.
It is mainly used in the production of high purity metal materials, semiconductor monocrystalline materials, high melting point alloys and 3D printing.
Detailed technical parameters
|
ZLF Vacuum Induction Melting-VIM
|
Model
|
VIF-1
|
|
Maximum melting weight (calculated by iron liquid)
|
500G
|
|
Maximum heating temperature
|
2200 ℃
|
|
Floating power supply
|
oscillation frequency
|
15-30KHZ
|
|
Max Input/ Output Power
|
60KW/ 54KW
|
|
PSU
|
Suspended special power supply
|
|
Cooling water requirement
|
PSU≥0.2MPa crucible≥≥0.35MPa
|
|
melting rate
|
10-15min
|
|
induction coil
|
Special coil for suspension furnace
|
|
input voltage
|
3 PHASES 380V 50 HZ
|
|
crucible
|
Suspended special water-cooled copper crucible
|
|
Cavity vacuum degree (molecular pump unit)
|
< 5X10 -3Pa
|
|
Broken even protection and display
|
Yes
|
|
over-temperature protection
|
Yes
|
|
Over-current protection
|
Yes
|
|
Under pressure protection (Water pressure)
|
Yes
|
|
Temperature Stabilizing
|
PID
|
|
Temperature detection mode
|
infrared thermometer
|
|
Crucible can dump rotation Angle
|
0-360°
|
|
Whether the vacuum chamber can be connected with water cold crucible
|
yes
|
|
Observation window size
|
Dia 90mm
|
|
Vacuum Unit
|
Unit input voltage
|
380V /220V
|
|
Bellow
|
KF40X1000
|
|
Vacuum baffle valve
|
KF40
|
|
vacuum pump TRP24
|
Power
|
0.75KW
|
|
Voltage
|
380V
|
|
rotate speed
|
1450rpm
|
|
Inlet Diameter
|
KF25/KF40
|
|
pumping rate of the front pump(L/S)
|
6
|
|
ultimate pressure
|
4X10 -2Pa
|
|
compound vacuum gauge
|
Model
|
ZDF
|
|
PSU
|
220V 55W
|
|
control precision
|
± 1%
|
|
pressure range of vacuum gauge
|
10-5 -10 5 Pa
|
|
diffusion pump TK200
|
Voltage
|
220V
|
|
Power
|
1500W
|
|
Extreme vacuum (when it's not leaking)
|
10E-5
|
|
Inlet interface
|
DN200
|
|
Outlet interface
|
DN40
|
|
Injection of oil
|
0.5L
|
|
pumping rate(N2)
|
1500L/S
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
