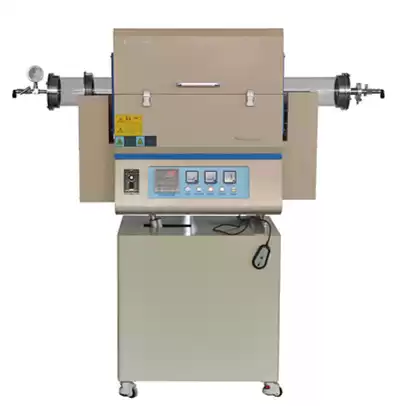

Lab 1200C Single Zone Rotary Tube Furnace

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • Warranty Two years limited warranty with lifetime technical support

Lab 1200C Single Zone Rotary Tube Furnace

Detailed technical parameters

Model

RTL1200-I

  RTL1200-II

Power

3.5  KW

   4 KW

Chamber size(mm)

Dia 60(OD) X1200

   Dia120(OD)X1200

Overall size

580X370X1050

600X440X1100

Input voltage

220V

Phase

                 Single

Heating element

              Resistance wire

Control system

Using the yu electric program control thermometer (standard)

1. 30 program control temperature intelligent PID adjustment.

2, over temperature protection is broken accidentally protection with a temperature or broken

accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature

of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay

will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the

limited protection electric furnace).

3. With 485 communication interface (standard and standard for choosing software)

4. It has the function of power failure protection, that is, when the power is off, the program will

not start up from the beginning temperature, but the furnace will start to rise when the power is off.

5. The instrument has the function of temperature self-tuning



(Optional)



FP93 temperature

control instrumentSHIMADEN       EUROTHERM                Touch screen instrument

Chamber   materials

 1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction

and filter molding.

2. Adopt Japanese technology to form.

3. The spacing and pitch of the resistance wire in the furnace are arranged according to the

best thermal technology of Japan, and the temperature field is simulated by thermal software

control precision

                                       +/- 1℃

 Tube rotation speed

With the infinitely variable speed motor, the rotational speed can be adjusted between (1-20 RPM)

 Rotary motor power

                                   40W

The Angle of inclination range of the furnace

                                    0-30°

Electric lifting support frame power

                                       40W

Trigger

                             Phase-shifted trigger

 electric appliance

                                 Zhejiang chint

silicon controlled rectifier

                    106/16E SEMIKRON

maximum temperature

                                   1200℃

rated temperature

                                   1100℃

heating rate

                          ≤30℃/ Min(adjustable)

Recommended heating rate

                               ≤20 ℃/ Min

Thermocouple Type

                                     K

heating-length

                                  400mm



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
