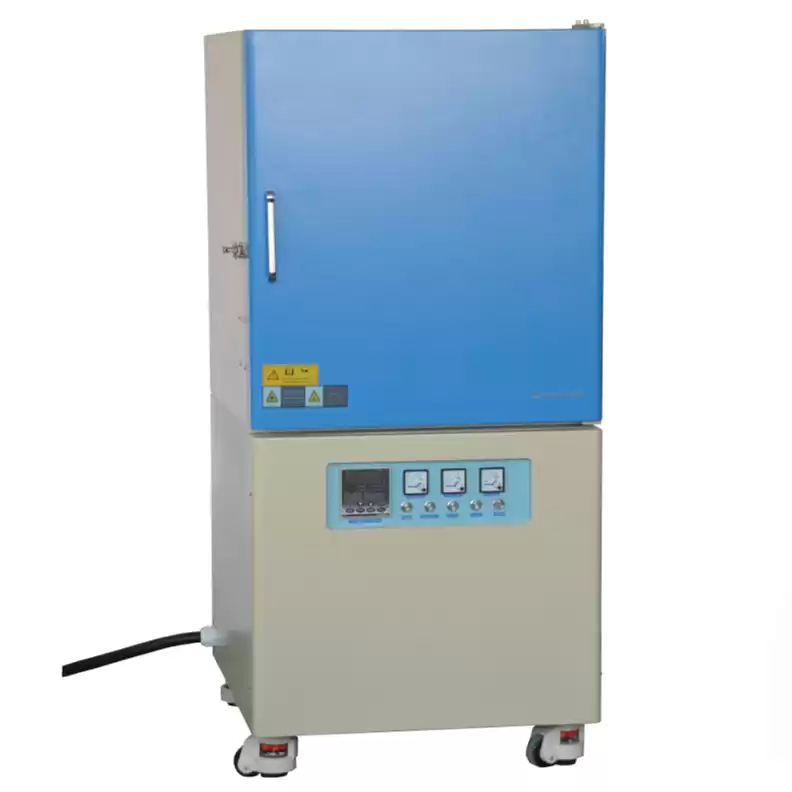

Lab 1600C High Temperature Muffle Furnace with MoSi2 Heating Element

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

Lab 1600C High Temperature Muffle Furnace with MoSi2 Heating Element


Detailed technical parameters

Model

1600-I

1600-II

1600-III

1600-IV

1600-V

1600-VI

Power

3 KW

5 KW

7KW

9 KW

12KW

21KW

Chamber size(DXWXH)

160X150X150mm

200X200X200mm

300X200X200mm

300X250X250mm

400X300X300mm

 500X400X400mm

Dimensions

520X490X880

564X530X930

600X630X970

620X630X1020

670X760X1450

 840X870X1740

Supply voltage

220V

220V

220V

380V

380V

380V

Phase

                                        single phase

three phase

Heating element

                                  1700 Type MoSi2 heating element

Control mode

UAV program temperature control instrument


1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1620 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

Heating rate

                                        ≤30℃/ Min

Recommended rate of temperature rise

                                      15℃/ Min

Chamber material

                Model 1700 alumina polycrystalline fiber

Control precision

                                         +/- 1℃

Maximum temperature

                                       1600℃

Rated temperature

                                        1550℃

Peripheral surface temperature

                                        ≤35℃

Thermocouple Type

                                            B

Trigger

Phase shift trigger (with soft start and current limit function)

Current limiting function: No matter how to adjust the heating time, the secondary current of our electric furnace after being passed through the transformer is limited to 160A, which effectively protects the equipment. No matter how you operate, it will not burn out the equipment if the current is greater than the set current 1.5. When the time is exceeded, the trigger will automatically stop the trigger, thus protecting the device.

Soft start function: the current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element.

Electric appliance

                                                   Zhejiang chint

Silicon controlled

                                           106/16E SEMIKRON

  Travel switch

 A travel switch is installed on the furnace door. When the furnace door is opened, the power supply is automatically cut off to prevent the electric shock from being caught when the heating element is hit.



1700C muffle furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
