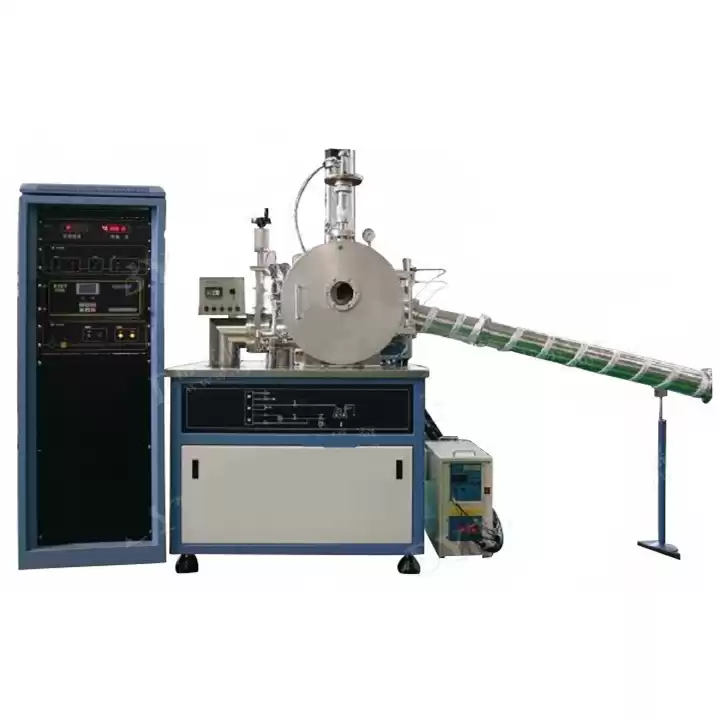

Lab 1900C Vacuum Sling Furnace With Single Roll Quenching Device


The amorphous materials were prepared by using the melt single roll quenching method, as well as the vacuum spraying casting method.


Detailed technical parameters

ZIF vacuum induction melting furnace









Model

VIBF-1

Sample weight

10G pure iron sample

Quartz smelting crucible heating zone

 Dia15X50mm

Rotating target suppor

 Roller rotating device 1 set of surface linear speed 0-50m/S inverter speed adjustment

 Vacuum injection device

 Vacuum injection grinding tools

Maximum heating temperature

 1900℃

heating electric power

Power supply

high frequency induction power supply

oscillation frequency

30-80KHZ

Max Input Power

15KW

heating current

200~1000A

Cooling water requirement

≥0.2MPa 2~5L/min

power weight

30KG

duty cycle

80%

Input voltage

three-phase   380V   50/60HZ

Heating Method

induction heating

Temperature Stabilizing

PID

Cavity vacuum degree (molecular pump unit) Plan A

 < 5X10 -4Pa

Cavity vacuum (diffusion pump unit) Plan B

< 5X10 -3Pa

Air pressure of the cavity

< 0.5MPa

rate of pressure rise

<4Pa/hr

Broken even protection and display

 Yes

Over-temperature protection

 Yes

Over-current protection

  Yes

 Undervoltage protection (water pressure)

  Yes

Control precision

+/-  1~ 5 ℃(>600 ℃)

Temperature detection mode

infrared thermometer

Max. Heating Rate

100℃/Min

Main vacuum chamber dimensions

Dia500X400

Viewing window size

Dia 90mm

Cold water machine (optional)

CW-6100AH

Vacuum Unit



Unit input voltage

380V /220V

Bellow

KF40X1000

Vacuum baffle valve

KF40

      vacuum pump RVP-6

Power

 0.75KW

Voltage

380V

rotate speed

1450rpm

Inlet Diameter

 KF25/KF40

pump extraction rate(L/S)

6

ultimate pressure

4X10 -2Pa

    Diffusion pump TK150



  (Plan B)

Voltage

220V

Power

1000W

Inlet interface

DN150

Outlet interface

DN40

Injection of oil

0.3L

pumping rate(N2)

1000L/S

compound vacuum gauge

Model

ZDF

 Power supply

220V   55W

 control precision

± 1%

 pressure range of vacuum gauge

10-5 -10 5 Pa

Vacuum Unit





















input voltage

380V /220V

Bellow

KF40X1000

Vacuum baffle valve

KF40

  molecular pump Plan A

 Molecular pump model

  FJ620

  input voltage

 220V

  Molecular pump inlet flange

  DN160

Molecular pump pumping rate L/S (for air)

  600

Molecular pump limit pressure(Pa)

6×10-7

Cooling mode

Water cooling

ooling water pressure(MPa)

 0.1-0.2

cooling water temperature

<25℃< p="">
