Lab Automatic Mini Tablet Coating Film Bar Coater Machine For Battery Electrode Coating

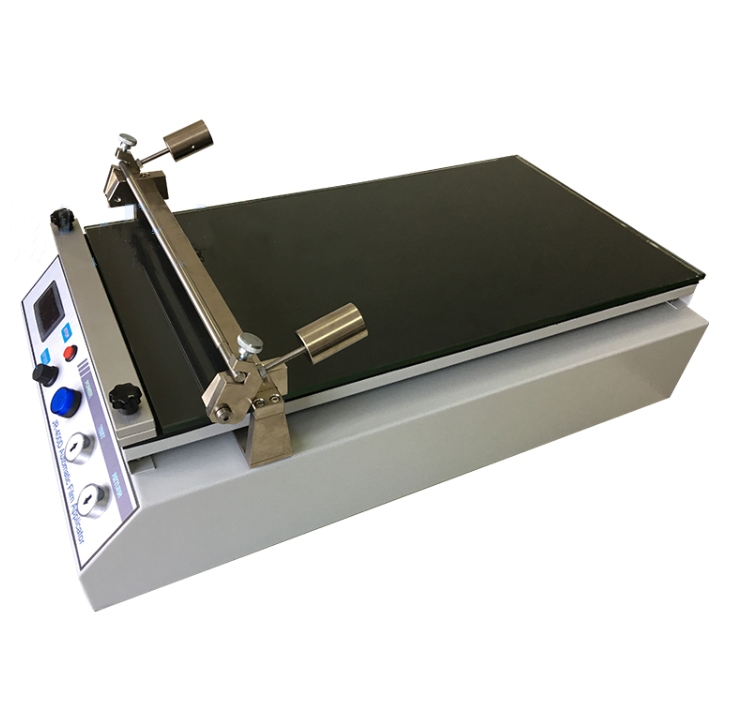

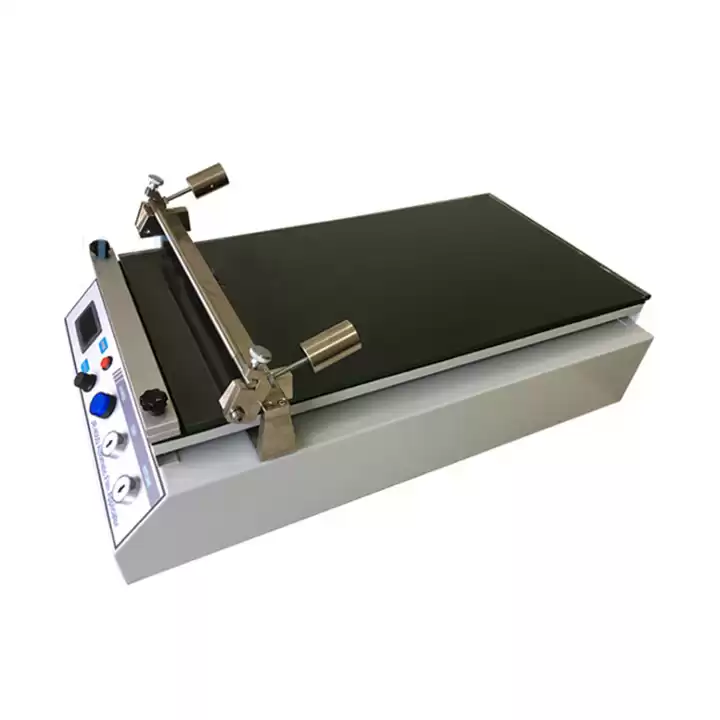

TMAX-XT-200CA Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.



This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.

This model is without heating function, Heating lid is available at extra cost for drying . please select model TMAX-TMH if we need hot function.




Model

Film Coating Machine TMAX-XT-200CA

Working Voltage

110V AC or 208 - 240V AC 50/60Hz Single Phase

Power

200W

Traverse Speed

0 - 200 mm/sec variable

Max. Coating Dimensions

430*300mm (L*W)

Coating base size

570*340mm (L*W)

Platform

Glass bed for coating

Coating thickness

Coating film by precision wire bar(Thinnest coating film thickness

 up to 1.5um)

Coating wire bar size

Diameter : 10mm, Length: 400mm,Effective coating width:300mm

Product Dimensions

570mm(L) *340mm(W) * 100mm(H)

Net Weight

20kg

Warranty

One year limited warranty with lifetime support

Application Notes

Rolling is absolutely necessary to ensure good density and

adhesion of electrode materials to the current collector substrate

after coating. Please select a rolling press from here.

You may need a vacuum oven to dry the films after coating

You may need a vacuum mixer to remove air bubbles inside

the slurry and to make all coatings uniform

You may need a Slurry Viscosity Tester to make coatings consisten




Coin Cell Line

Cylindrical Cell Line

Pounch Cell
