Lab DZF-6020 Vacuum Drying Oven
Product Specification
1 The laboratory vacuum oven is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.
2 The laboratory vacuum oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.
3 Use laboratory vacuum oven for material heating drying under vacuum states has advantages:
3.1 Can reduce the drying temperature
3.2 Avoid some objects heating to oxidation
3.3 Avoid heating air to kill living cells
3.4 No dust damage
|
Model
|
DZF-6020 Vacuum Oven TOB-DZF-6020
|
|
Source voltage
|
AC220V/110V,50HZ
|
|
Power
|
500W
|
|
Warranty
|
One Year Limited Manufacture Warranty with Life Time Support
|
|
Temperature range
|
RT+10-250℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Vacuum degree
|
-0.1MPa
|
|
Inner box size(L*W*H)
|
300*300*270mm
|
|
Dimension(L*W*H)
|
580*450*450mm
|
|
Package size
|
650*850*700mm
|
|
Temperature controller
|
1.High precision microcomputer temperature controller, accurate temperature control
2.Working temperature can be set and working time can be set, error alarm function
|
|
Inner box material
|
304 stainless steel
|
|
Outside shell material
|
High quality cold-rolled steel plate electrostatic spray
|
|
Box door
|
Toughened bulletproof double glass door
|
|
Safety device
|
With over temperature protection, grounding etc
|
|

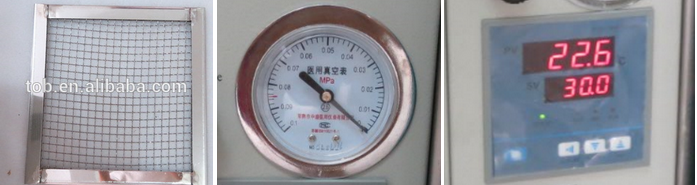

Shelf
|
1pcs
1 Solid stainless steel shelf, guarantee the oven temperature
2 Mesh stainless steel shelf for air cycle
|

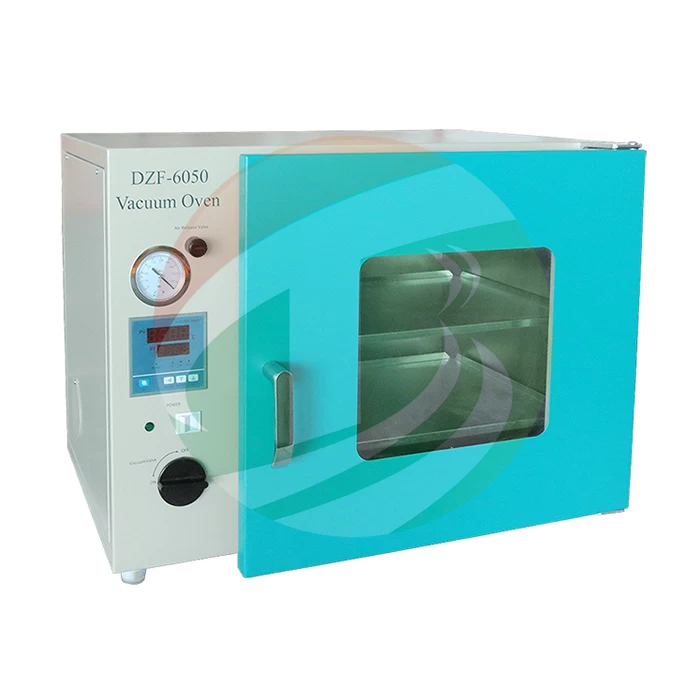

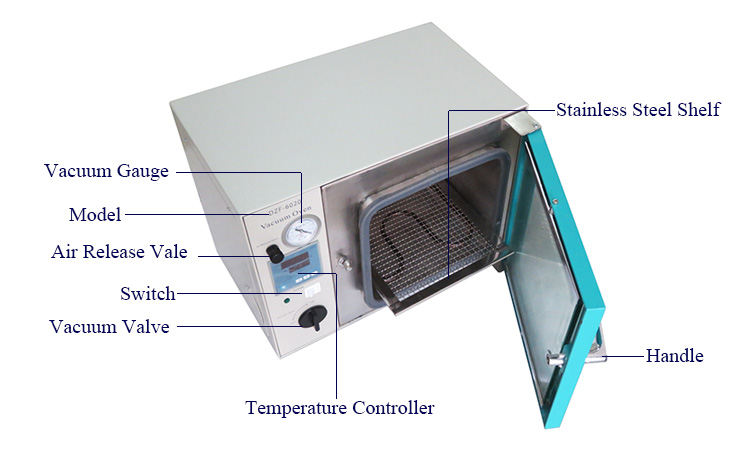

Product Images
Product Packing
