Lab High Temperature 1700C Single Zone Tube Furnace with MoSi2 Heating Element


This tube furnace uses a silicon-molybdenum rod as a heating element, and adopts a double-layer shell structure and a temperature-controlled instrument, which can perform 30-stage program temperature control, phase shift triggering, and thyristor control. The furnace is made of alumina polycrystalline fiber material, and the ends of the furnace tube are sealed by stainless steel flanges. Gas nozzles, valves and pressure gauges are mounted on the stainless steel flange. The vacuum can reach 10-3 Pa when vacuuming. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving. It is an ideal product for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.


Detailed technical parameters

 Model

1700-I

1700-II

1700-III

Power

5KW

   5KW

6kw

Tube size(OD)(mm)

High purity corundum tube :60/80/100*1000mm(tube diameter optional)

Two furnace plugs are placed on each side, the plug can block the heat radiation in the center of the tube, and must be placed in the correct position of the furnace before heating

Dimensions

1120X490X855

1120X490X855

1120X520X945

Supply voltage

                                                           220V

Phase

                                                      single phase

Heating element

                                        1800 typeMoSi2 heating element

Temperature control type


UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning


(you need to pay extra for the replacement of imported instruments, optional)



 FP93 temperature controller (shimashima, Japan) EUROPEAN instrument Touch screen instrument


Chambermaterial

1. Furnace material, using high quality alumina polycrystalline fiber

2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.

Valve and flange

Control precision

                                                            +/- 1℃

Trigger

                                               Phase-shifted trigger

Electric appliance

                                                       Zhejiang chint

Silicon controlled

                                                 106/16ESEMIKRON

Maximum temperature

                                                           1700℃

Rated temperature

                                                           1650℃

Heating rate

                              ≤20℃/ Min(it can be modified as required)

Recommended rate of temperature rise

                                                       ≤10  ℃/ Min

Thermocouple Type

                                                         B Type

Heating length

                                                       300mm

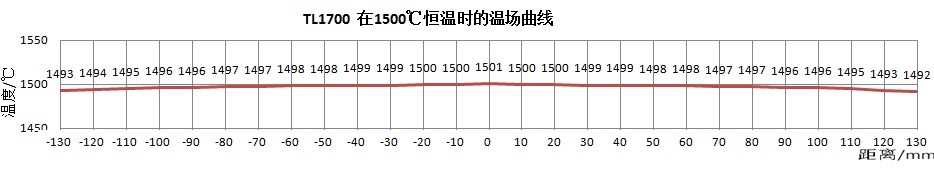

Temperature curve



Peripheral surface temperature

                                                       ≤45℃

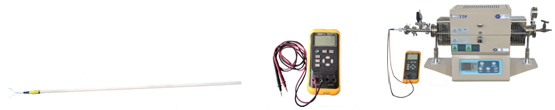

Temperature calibration (optional)

Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this task. The complete calibration kit includes standard thermocouples, temperature calibrators, and compensation leads.







 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
