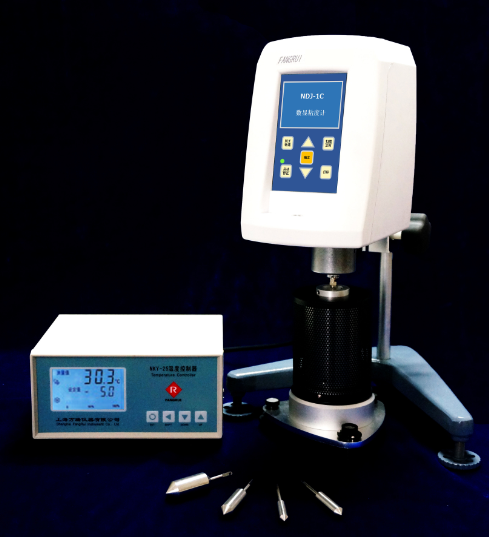

Lab High Temperature Brookfield Viscometer with PC Interface
The high temperature viscometer adopts coaxial center structure, using small sample adapter, the sample quantity required for each measurement is very small, and the temperature control is quick and accurate. Full range, all the linearity through the PC interface, with different viscosity of the standard sample measurement correction, to ensure that the instrument has high accuracy and repeatability. The measuring range is wide, suitable for the testing of all kinds of samples that need to be heated and melted, such as asphalt, rosin, hot melt adhesive, etc.
Main features:
1. Horizontal bubble front, sit Adjust the level is OK, very convenient.
2. with timing measurement function. most of our measured samples are typical non-newtonian liquids, and their viscosity is not only related to temperature, shear rate, but also to the length of time measured. In order for the measured data to be comparable, the measured time must be consistent.
3. The accuracy of the measured data is two decimal places.
4. Using a small sample adapter, the sample size required for testing is very small, as long as 15-20 ml;
6. Temperature Control Range: Room temperature plus 10°C -250°C (optional 300°C heating furnace)
7. Viscometer with RS232 interface to connect micro printer and computer
Detailed technical parameters:
|
model
|
RV-SSR
（NDJ-1C、NDJ-1D）
|
HA-SSR
|
HB-SSR
（NDJ-1F）
|
|
display
|
liquid crystal
|
|
speed（r/min）
|
0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 Total 18
|
|
rotor
|
21、27、28、29# (standard configuration)
Ultra-low viscosity adapter (rotor No.0) with separate heating furnace (optional)
|
|
measuring range
（mPa.s）
|
6.4 – 2M
rotor No.0: 6.4-1K
rotor No.21: 50-100K
rotor No.27: 250-500K
rotor No.28: 500-1M
rotor No.29: 1K-2M
|
12.8 – 4M
rotor No.0: 12.8-1K
rotor No21: 100-200K
rotor No.27: 500-1M
rotor No28: 1K-2M
rotor No.29: 2K-4M
|
51.2 – 16M
rotor No.0: 51.2-2000
rotor No.21: 400-8M
rotor No27: 2K-4M
rotor No.28: 4K-8M
rotor No.29: 8K-1.6M
|
|
Test error
|
±2% (Newtonian liquid)
|
|
repetitive error
|
±1% (Newtonian liquid)
|
|
repetitive error
|
Room temperature plus 10°C -250°C (300°C optional)
|
|
Temperature Control Precision
|
0.1℃
|
|
Print interface
|
have
|
|
computer interface
|
have
|
Note: K = 1000; M = 1000000; 1Pa.S= 1CP
Our company also has a number of non-polar speed-regulating touch-screen high-temperature viscometer model, the maximum range of 80 million, optional data software, showing shear rate and viscosity rheological curves.
Standard Configuration:
|
main engine
|
1
|
rotor
|
21,27,28,29
|
|
Container
|
2
|
processing software
|
1
|
|
temperature regulating device
|
1
|
furnace
|
1
|
|
instructions
|
1
|
certificate
|
1
|
|
warranty card
|
1
|
|
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
