Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
|
Item
|
Unit
|
OLT-SD-15
|
OLT-SD-30
|
|
Max capacity
|
ml/h
|
1500-2000
|
3000
|
|
Temperature range of inlet air
|
℃
|
40℃ ~ 300℃
|
30℃ ~ 300℃
|
|
Temperature range of outlet air
|
℃
|
40℃ ~ 140℃
|
30℃ ~ 140℃
|
|
Spray system
|
/
|
Two-fluid nozzle
|
Two-fluid nozzle
|
|
Precision of temp
|
℃
|
±1
|
|
Dryer time
|
S
|
1.0 ~ 1.5
|
|
Speed of squirt pump
|
ml/h
|
50 ~ 2000
|
3000
|
|
Nozzle size
|
mm
|
0.5/0.7/0.75/1.0/1.5/2.0
|
|
Spray direction
|
/
|
Downwards co-current
|
|
Heater Power
|
/
|
3500W
|
4500W
|
|
Total power
|
/
|
4500W 220V
|
5500W 220V
|
|
Heat source
|
/
|
Electric
|
|
Air compressor
|
/
|
Built-in oil-free air compressor
|
|
Dried powder restoring rate
|
%
|
≥92 (Maltodextrin>92)
|
|
Dimension
|
mm
|
940*850*1500
|
1700*1100*150
|
|
Maximum moisture evaporation
|
Kg/h
|
2
|
3
|

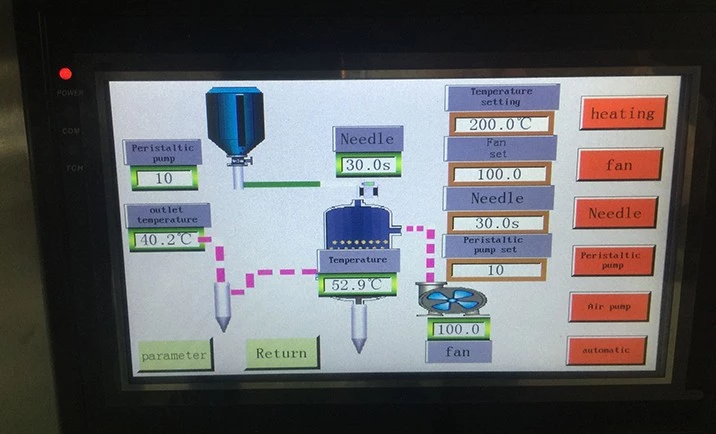

1. LCD control system, language can customize your local langage:

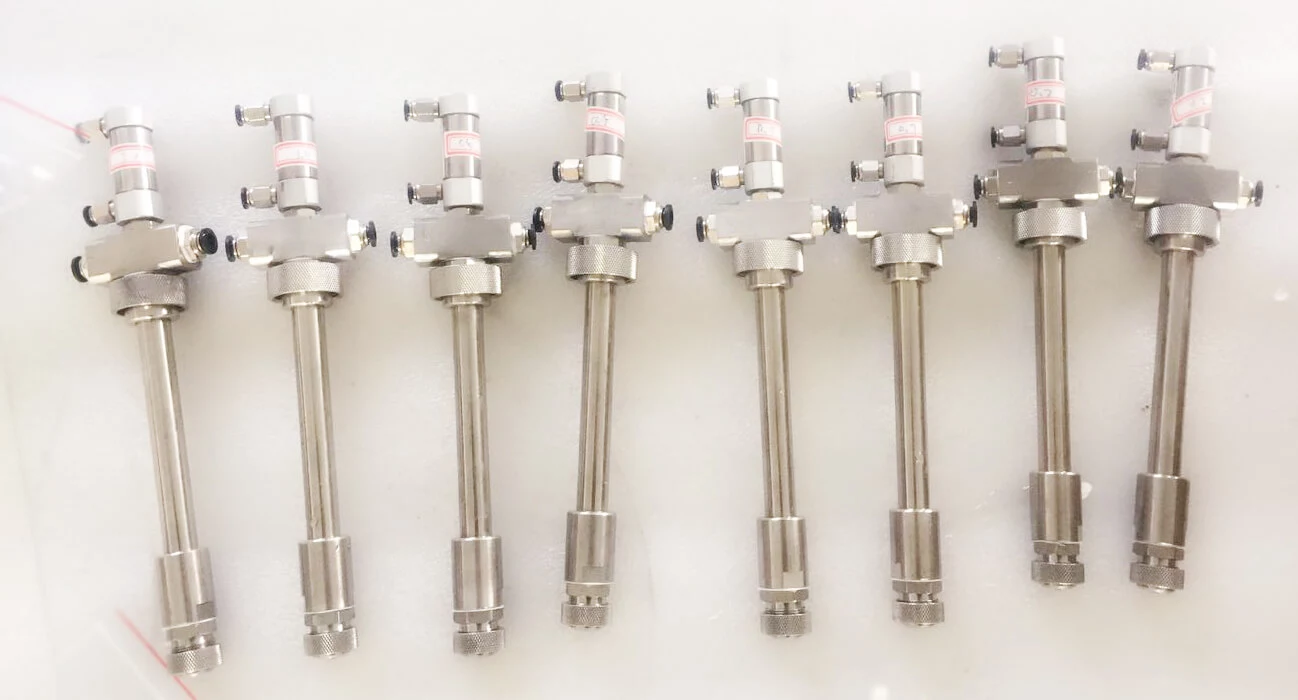

2. Two fluid spray drying nozzle can buy separately:
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
