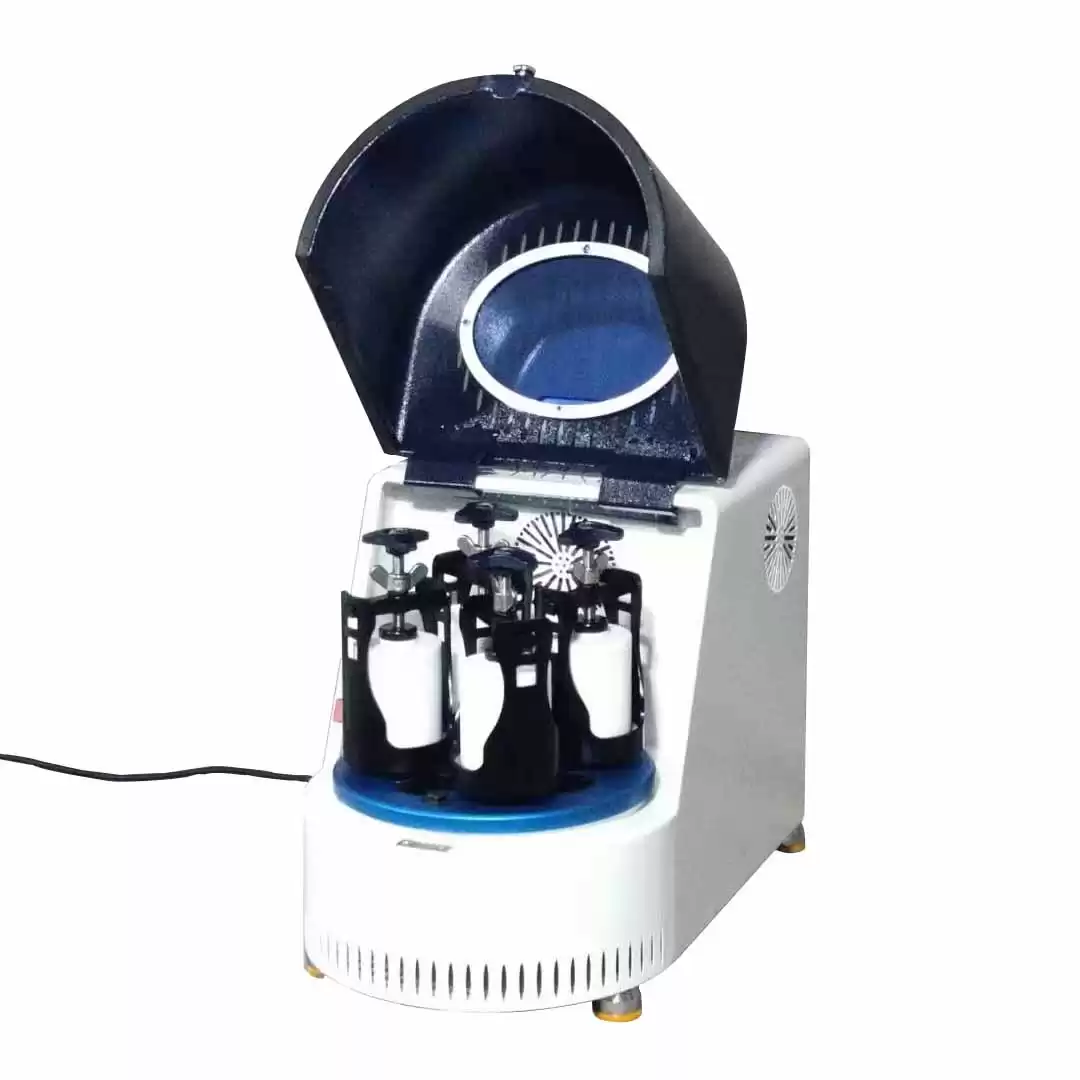

Lab Powder Grinding Machine




Overview:

1. Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.


2. The Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

3. It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.

4. It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.



Optional Ball and Jar

1. Material of ball milling tank: stainless steel, agate, corundum, tungsten carbide, nylon, zirconia, polytetrafluoroethylene, lined with polyurethane and so on; The principle of choice is that the material of the ball mill can not affect the appearance of the material to be ground; Grinding easy to oxidation, must be air-insulated materials, you can use vacuum ball mill tank.



2. Grinding ball material are: chrome steel, stainless steel, agate, alumina, zirconia,Selection principle is the grinding ball material on the material to be polished does not affect the appearance of pollution; Grinding ball material density and hardness must be larger than the abrasive material; Ball mill specifications are: Φ5, Φ8, Φ10, Φ15, Φ20



Working principle:

TMAX-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.


Specifications:

Model

Planetary Ball Mill Machine TMAX-XQM-0.4

Grinding tank volume (L)

0.1L*4

Grinding tank material

According to requirements

Grinding media

According to requirements

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution 335r / min,

Rotation 670r / min

Speed ratio

 (revolution: rotation)

1:2

Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

Gear drive

Working Voltage

220V

Motor power and variable frequency power

0.75Kw

Way of working

Two or four cans work at the same time

Maximum continuous operating time

72hours

Machine Size

750*470*564mm

Weight(not include Jars and Ball )

80kg

Programmable control (electronic monitoring)

Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.



We can provide different capacity of planetary ball mill according to your requirement.

Model

Power supply

Motor power

Converter power

Operating time setting

(min)

Positive and negative alternating operation time(min)

Adjustable speed

Revolution

(rpm)

Adjustable speed

Rotation

(rpm)

Noise

<db

XQM-0.2

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-0.4

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-1

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-2

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-4

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-6

220V 50HZ

0.75KW

1-9999

1-999

30-335

70-670

60db

XQM-8

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-10

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

60db

XQM-12

220V 50HZ

1.5KW

1-9999

1-999

35-290

70-580

65db

XQM-20

380V 50HZ

4KW

1-9999

1-999

25-215

50-430

65-db

XQM-40

380V 50HZ

5.5KW

1-9999

1-999

20-195

40-390

68db

XQM-60

380V 50HZ

7.5KW

1-9999

1-999

27-174

40-260

68db

XQM-100

380V 50HZ

11KW

1-9999

1-999

27-160

40-240

68db



Model

Capacity

Specification of milling tank

Qty

XQM-0.2

0.2L

50ml

4 set

XQM-0.4

0.4L

50ml-100ml

4 set

XQM-1

1L

50ml-250ml

4 set

XQM-2

2L

50ml-500ml

4 set

XQM-4

4L

250ml-1L

4 set

XQM-6

6L

lL-1.5L

4 set

XQM-8

8L

1L-2L

4 set

XQM-10

10L

1L-2.5L

4 set

XQM-12

12L

1L-3L

4 set

XQM-20

20L

2L-5L

4 set

XQM-40

40L

5L-10L

4 set

XQM-60

60L

10L-15L

4 set

XQM-100

100L

20L-25L

4 set






Grinding Sample


1.Material:Activated carbon

2.Grinding tank and ball: corundum tank with zirconia ball

3.Grinding method: dry grinding

4.Speed: 560rpm (rotation)

5.Selected equipment: XQM-0.4

6.Grinding tank volume: 100mLx4

7.Ginding time: 2 hours

8.Fineness: 2um






1.Material: Green tea

2.Grinding tank: stainless steel tank

3.Grinding method: dry

4.Grinding Speed: 450rpm (rotation)

5.Selected equipment: XQM-2

6.Grinding tank volume: 500mLx4

7.Grinding time: 1hour

8.Fineness: 17um




1.Material: Chinese herbal medicine

2.Grinding tank: zirconia jars

3.Grinding method: dry

4.Grinding Speed: 500rpm (rotation)

5.Selected equipment: XQM-2

6.Grinding tank volume: 500mLx4

7.Grinding time: 1hour

8.Discharge particle size:Soluble in water




1.Application: Abrasives and abrasives;

2.Material: glass powder;

3.Particle size of feeding0.5mm;

4.Feeding amount: 2000g;

5.Material properties: brittle;

6.Customer requirements: 35 μ m;

7. Sequential analysis: particle size analysis

8. Selected equipment: planetary ball mill XQM-4;

9.Jar and ball configuration: corundum tank with zirconia ball;

10. Operating parameters: rotation 560 rpm, grinding time of every 20 minutes in positive and reverse rotation;

11. Grinding results: 99% < 35 μ M;

12.Results (suggestion): the XQM-4 planetary mill can be used to grind glass powder


Besides the planetary ball mill machine, our factory provides all kinds of mill jarslike stainless steel mill jar, zirconia mill jar, alumina mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jar etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.



We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Product Detail Images





Model selection guidance

Selection of size of planetary ball mill:
According to the number of materials to be ground, choose the size of the planetary mill.
Calculation formula for size selection of planetary ball mill: a = C /ρ* 3.
Note: A is the size of planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).
For example, if 2kg of material is ground at one time and the bulk density of material is 1.5kg/L, the size of planetary mill in row a = 2/ 1.5*3 = 4L is selected.

Planetary ball mill style and special function configuration options:

Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.


Reference table for selection of planetary ball mill style and special function configuration

Model selection of planetary ball mill

Nature of abrasive material

Vertical planetary mill

Grinding of general materials, no special requirements

Comprehensive planetary mill or horizontal planetary mill

The material is easy to sink and bind

Double planetary mill

Ultra high speed and ultra-fine grinding are required

With air cooling device or liquid nitrogen device

The grinding process is hot and needs to be cooled

Equipped with vacuum ball milling tank

Easy to oxidize, requiring vacuum environment or atmosphere protection

With heating device

High temperature grinding required
