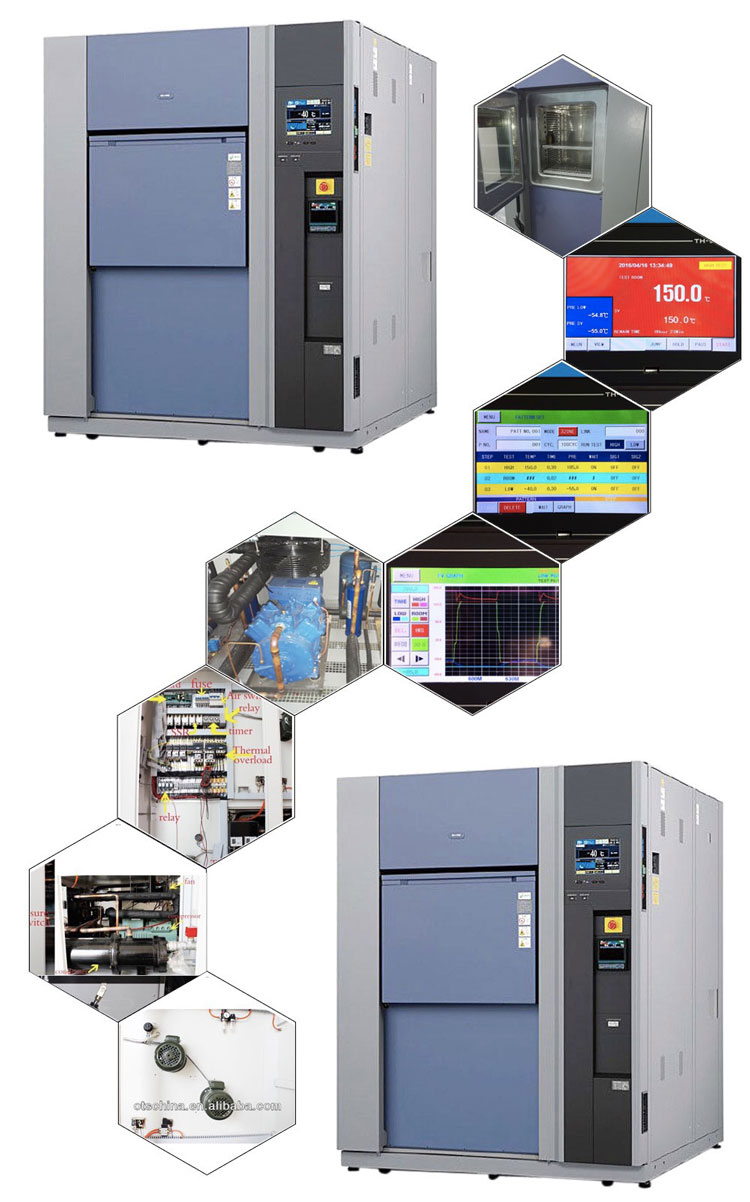

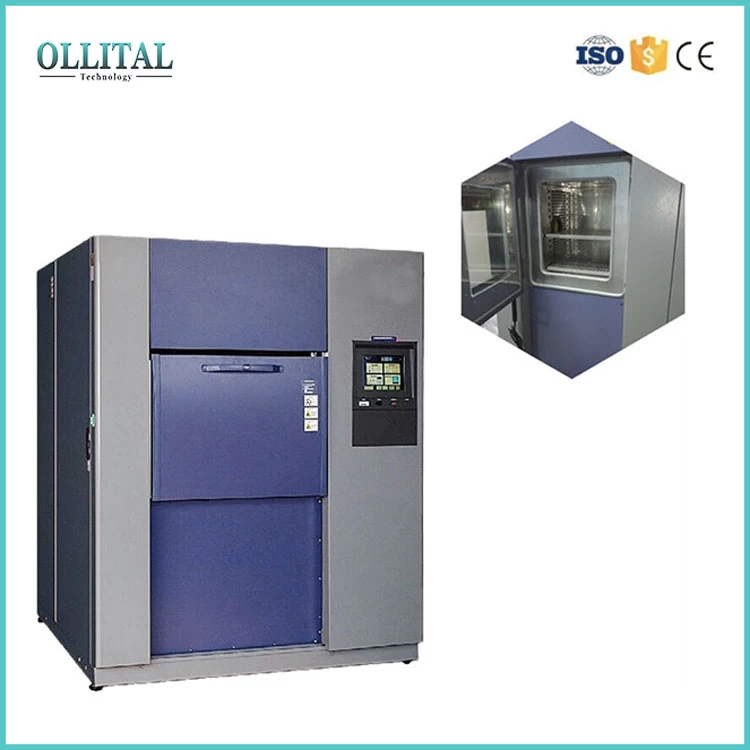

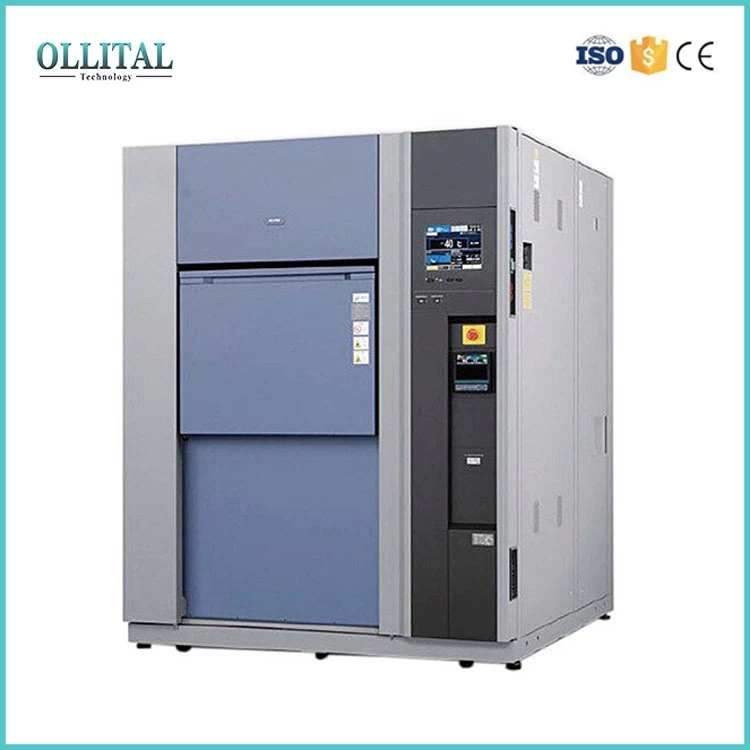

Lab Rapid Rate Temperature Change Impact Heating And Cooling Thermal Chock Test Chamber
|
Model
|
OLT-OTS-50
|
OLT-OTS-80
|
OLT-OTS-150
|
OLT-OTS-225
|
OLT-OTS-408
|
|
Inner size WxHxD(cm)
|
36×40×35
|
40×50×40
|
50×60×50
|
60×75×50
|
80×85×60
|
|
External size WxHxD(cm)
|
138x180x155
|
150X190X160
|
190x200X195
|
210x220X205
|
225x250x220
|
|
Shock Temperature ragne
|
-65°C~150°C
|
|
Heating up time
|
RT~200°C about 35min
|
|
Cooling down time
|
RT~-70°C about 90min
|
|
Temp recover time/change time
|
≤5min / ≤10sec
|
|
Temp control accuracy/
distribution accuracy
|
±0.5°C / ±2.0°C
|
|
Inner materials
|
SUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
|
|
Insulation materials
|
High-temperature high-density amino acid ethyl ester foam insulator material.
|
|
Systems
|
P.I.D+S.S.R+Microcomputer balanced temperature control system.
|
|
Cooling systems
|
Semi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
|
|
Safety devices
|
Fuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
|
|
Fitting
|
Outlook window (special purchase), the upper and lower adjustable
compartment two energized measured line hole, casters,level bracket.
|
|
Power
|
3 phase AC380V 50HZ/60HZ
|
|
Controller
|
Taiwan TATO or TH900C
|
|
Compressor
|
Germany Bitzer Brand
|
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
Programmable High Low Temperature Shock Impact Test Equipment used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm.
The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., can be used as the basis of its product improvement or reference.
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
3-zone Thermal shock chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.
Working Principle
This is so called three-zone type thermal shock test chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized.
During the whole test, test sample is no need to be moved, and without any human intervention.
