Lab Scale Small Portable Handheld Homogenizer


  • VoltageTwo Years Limited Warranty With Lifetime Support
  • Speed5000-35000rpm
  • Capacity160W
  • ComplianceCE Certified
  • Model Number1
  • Model NumberOLT-MT-15
  • WarrantyWestern Union, T/T, L/C
  • Packaging Details Export wooden package

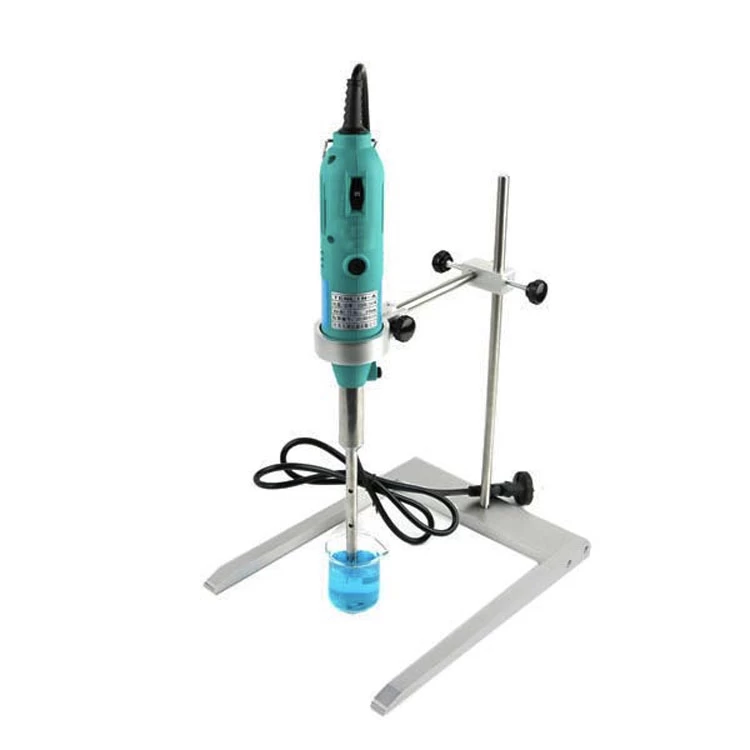

OLT-MT-16 is a hand-held small, fast-tissue homogenization, dispersion and emulsifier with different dispersion heads for liquid samples from 0.1 to 250 ml at speeds up to 35,000 rpm. The sample is circulated into a narrow space between the stators of the high speed relative motion and is quickly sheared and broken. Tissues such as muscle, liver, and breast can be homogenized in 10-30 seconds.

1, seven-speed stepless speed regulation, the maximum speed can reach 35000rpm
2, designed for the organization of mashing, micro-dispersion emulsification and homogenization
3, integrated speed switch, user-friendly operation.
4, light weight (1Kg), hand-held design, flexible operation, to meet your mobile experiment needs.
5, double protective insulation, to give you maximum security.
6. The dispersing head is made of stainless steel and can be reused.
7. The dispersing head adopts the quick connection mode and is easy to disassemble and replace.
8. Optional 3 kinds of dispersing heads, the outer diameters are 6mm, 8mm, 10mm respectively to meet the different processing capacity (0.2-250ml) requirements, suitable for EP tubes, centrifuge tubes, small tubes and so on.

1. Mouse liver homogenate
Cut the liver tissue into small pieces and put it into the container. Hold the OLT-MT-15, adjust the speed to 3 steps, and start the homogenization for 40 seconds.
2, micro suspension preparation
The powder was placed in a liquid and wetted, hand-held with OLT-MT-15, the speed was adjusted to 2 steps, and the suspension was turned on for 15 seconds.

Rated working voltage; AC220V- 50HZ/60HZ
Motor input power: 160W
Speed: 5000-35000rpm
Speed display mode: 6 files and MAX files (total 7 files)
Speed regulation mode: stepless speed regulation
Handling capacity: 1ml-250ml
Random working head configuration: 10mm (6mm/8mm/10mm optional)
Machine weight: 1Kg
Minimum throughput (water): 1ML
Maximum throughput (water): 250ML
Maximum viscosity: 5500MPAS
Noise: less than 50DB (A)
Protection method: IP30

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
