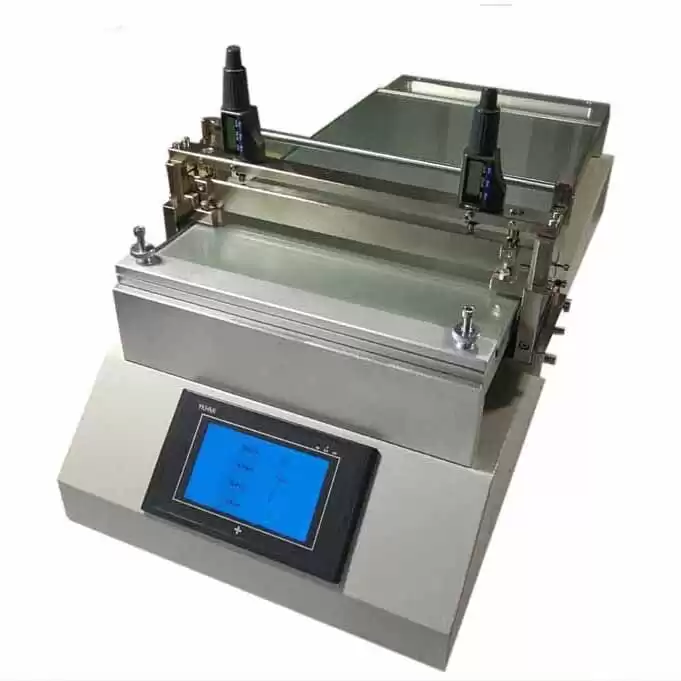

Lab Small Battery Film Coater Machine Of 200 ° C For Lithium Battery
This is our product video link:
https://www.youtube.com/watch?v=4YTt-8kPatk&feature=youtu.be
Features
The biggest advantage of the laboratory small coater is that it can repeatedly and continuously produce a smooth and flawless test sample. It is convenient for the experimenter to accurately coat on different substrates. The error caused by human factors such as coating speed and pressure is reduced and eliminated. The coating head is made of stainless steel U-shaped scraper, which simulates the large coating head to ensure that the experimental product matches the quality of the production coating. The coating head can be quickly opened to clean the blade after each experiment.
The laboratory small coaters all use high-quality accessories, and the price is excellent. It has won many R&D institutions of multinational corporations and is favored by many famous universities at home and abroad. By controlling the speed and the stable pressure to ensure the coating effect, to ensure the uniformity of the coating and the smoothness of the laboratory, the biggest features of the small coater can be in the plane of paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate, etc. The materials were subjected to coating experiments. Choosing the best bar coater from our company.
Device parameters:
|
Coating speed
|
0-10 meters per minute stepless speed regulation.
|
|
Accuracy accuracy
|
±0.003MM (scraper) ±0.002MM (wire bar)
|
|
Equipment table
|
370*260MM
|
|
Coating area
|
220*200MM
|
|
Coating thickness
|
0.005-5MM (the thinnest 5 micron wet film)
|
|
Machine volume
|
430*330*340 (length * width * height)
|
|
Machine weight:
|
17~18KG
|
|
Scraper material
|
alloy stainless steel
|
|
Power source
|
voltage 110~220V 50/60HZ
|
|
Heating temperature
|
normal temperature ~ 200 degrees
|
|
Power
|
48W (standby) 2000W (heating)
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
