Lab Small Planetary Ball Mill Machine

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • Warranty Two years limited warranty with lifetime technical support

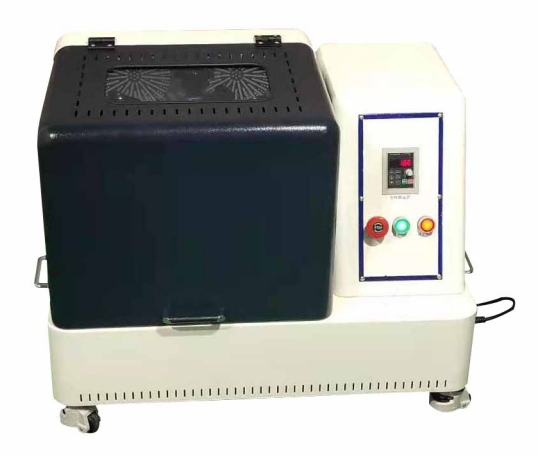

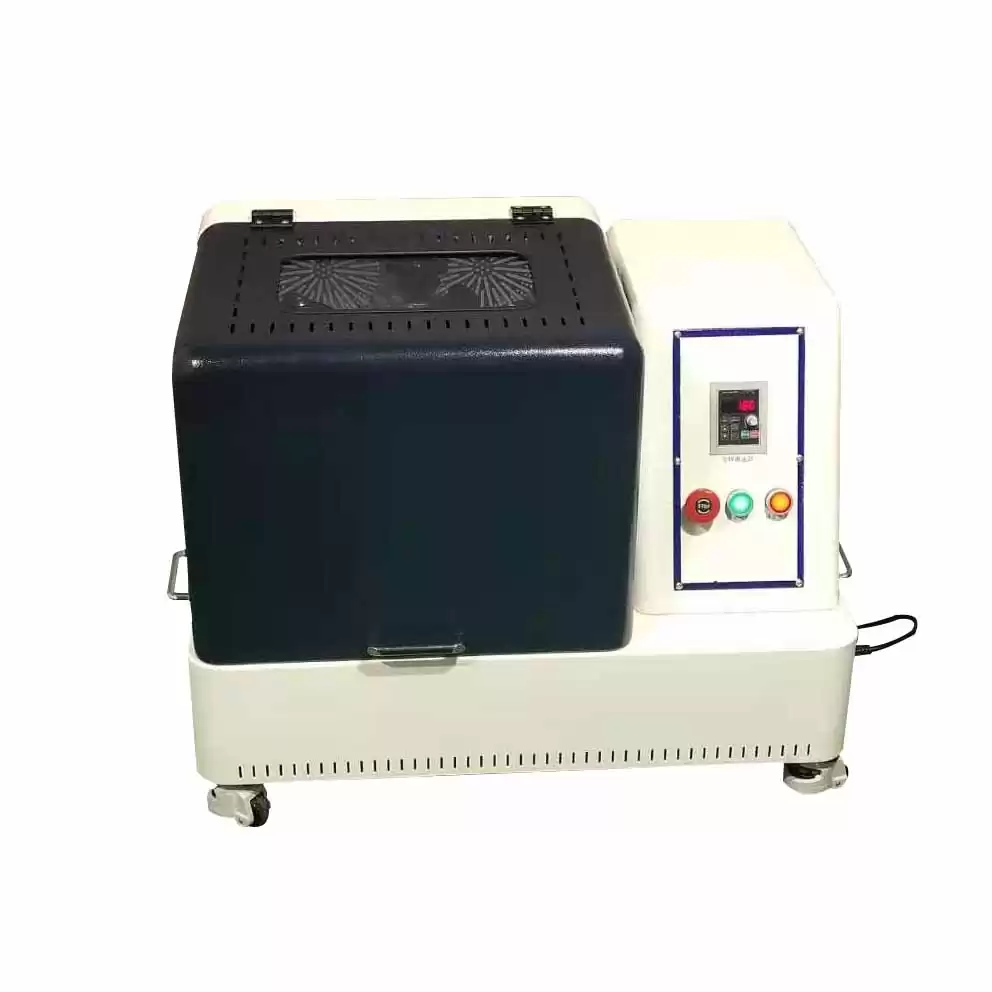

Lab Small Planetary Ball Mill Machine








Frequency conversion control

Ideal speed can be set according to the experimental requirements, high speed accuracy, frequency converter with undervoltage, over current, overload protection, optional intelligent panel, easy operation.

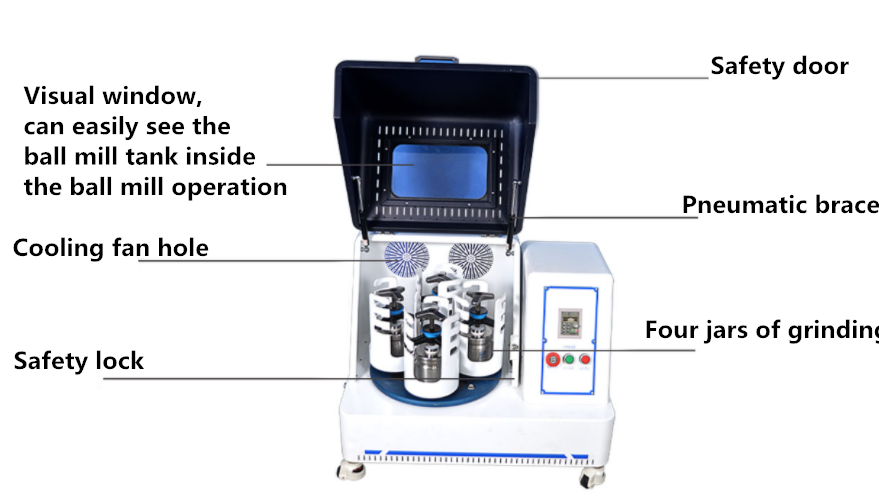

Planetary gear

Integral casting molding main plate, with manual anti-loose staring device (optional self-locking type), delicate and beautiful; Stable speed, high efficiency and good safety.











Cooling fan hole

The equipment runs at high speed, and the temperature inside the wall of the ball mill is effectively controlled by designing the reasonable layout of fan holes, so as to protect the normal ball grinding of materials and ensure the stability of the equipment.











Pneumatic brace

Constant support force, moderate resistance, easy to operate, safe.








A. The characteristics

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed It is stable and quiet, the grinding tank can be fixed at the same time, the operation is convenient, safe and reliable, the shell can match the color of the product, give the product new vitality, activate the new life of the product, in line with the international and domestic aesthetic needs, in line with ergonomics.

 vertical ball mill



1. Fashion design

The equipment shell uses square design elements, high precision mold stamping forming, especially delicate.





2. Exquisite workmanship

Adopt numerical control processing technology, planetary disc integral casting molding, transmission gear selection of special material precision gear.

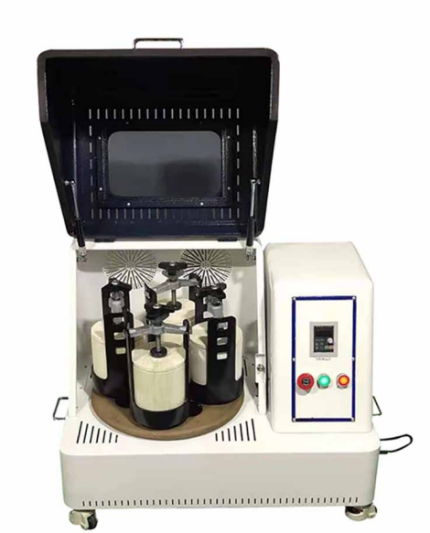

3. Grinding tank locking device

The crossbeam and nut of the locking device are all cast, easy to operate, safe and reliable. (Optional automatic locking device)





B. Parameter

Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work simultaneously

Mode of transmission

Two thirds of the volume of the ball mill jar

Ball mill tank volume

0.05-3L per jar, total volume 0.2-12L

Feed granularity

Soil material≤10mm, and other materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed











Model

Volume

Configurable ball mill specifications

Qty

Configurable vacuum ball mill volume

Locking device (optional automatic)

PBM-LS-1

1

50-250ml

4

50-100ml

manual

PBM-LS-2

2

50-500ml

4

50-250ml

manual

PBM-LS-4

4

250-1000ml

4

50-500ml

manual

PBM-LS-6

6

1-1.5L

4

50-1000ml

manual

PBM-LS-8

8

1-2L

4

50-1500ml

manual

PBM-LS-10

10

1-2.5L

4

50-2000ml

manual

PBM-LS-12

12

1-3L

4

1L-2L

manual











Model

Power supply (single-phase)

Power(kw)

Total time to run the set(min)

Alternating positive and negative running time(min)

Adjustable speed

Revolution(rpm) Rotation(rpm)

PBM-LS-1

220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

PBM-LS-2

220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

PBM-LS-4

220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

PBM-LS-6

220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

PBM-LS-8

220V-50HZ

1.5

1-9999

1-9999

35-320

70-640

PBM-LS-10

220V-50HZ

1.5

1-9999

1-9999

35-320

70-640

PBM-LS-12

220V-50HZ

1.5

1-9999

1-9999

35-320

70-640











Model

Standard panel (optional intelligent, touch screen)

Lubrication way

Mode of speed regulation

Weight(kg)

Size(Length * width * height)

Noise≤db

PBM-LS-1

ordinary

grease

Frequency control

90

780*470*570

60±5

PBM-LS-2

ordinary

grease

Frequency control

93

780*470*570

60±5

PBM-LS-4

ordinary

grease

Frequency control

93

780*470*570

60±5

PBM-LS-6

ordinary

grease

Frequency control

95

780*470*570

60±5

PBM-LS-8

ordinary

grease

Frequency control

148

920*600*640

63±5

PBM-LS-10

ordinary

grease

Frequency control

150

920*600*640

63±5

PBM-LS-12

ordinary

grease

Frequency control

152

920*600*640

63±5




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
