A photocatalytic reaction device with extremely high air tightness, completely inert, automated trace gas on-line detection.

Vacuum:-0.1MPa; (>24h, Dynamic Gas-tightness Test of Gas Chromatography); Leakage rate < 5×10-5Pa·L/s;

Multi-pass high vacuum valve, no dead volume sampling mechanism; (deny mistaken gas carrier extraction);

Two modes of online automatic control and independent manual control are supported simultaneously;

Standard curve linear regression degree: hydrogen yield 100~400ul, R2>0.9999;

System cycling part volume 80mL; (without reactor)

Quantitative loop volume: 0.1ml; 0.2ml; 0.5ml; 1ml alternative (Customization available).

Multi-pass high vacuum valve, real-time display of valve position while automatic controlling, security protection early warning function.

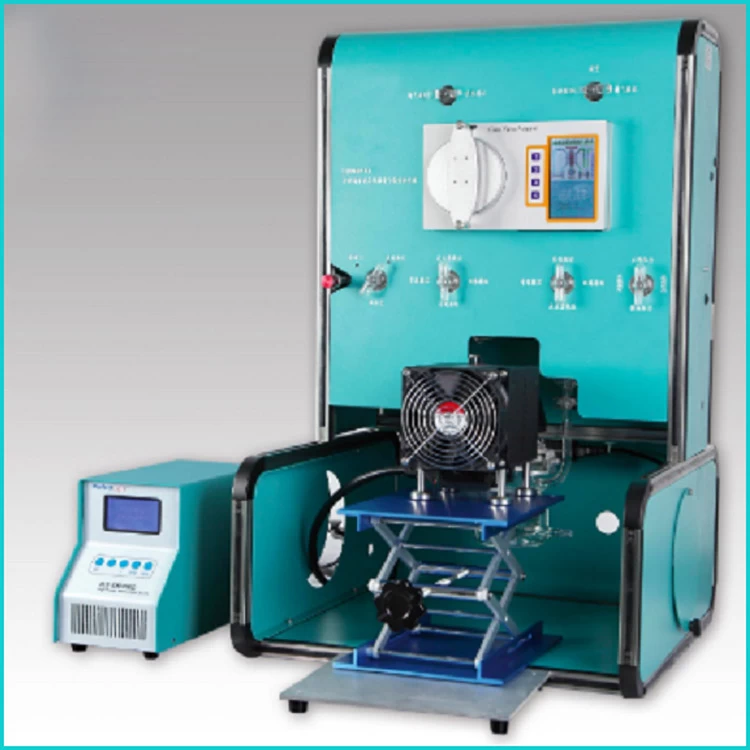

Labsolar-6A photocatalytic test device, composed of all-glass high air tightness system (including automatic multi-pass sampling valve, top/side illumination reactor, recycle condensation vacuum, etc.), protection cover, detection control parts and other components; Suitable for photocatalysis, membrane photocatalysis, photoelectrochemical reaction and so on in liquid-solid, gas-solid, gas-liquid-solid and other multi-phase systems at low pressure under certain temperature conditions. Especially suitable for vacuum photochemical reaction test with high air tightness requirements, the system has the following characteristics:

High system airtight performance; Leakage rate is less than 5 × 10-5Pa ? L / s in the glass system, and the glass part is of good stability and reliability.

Multi-valve automatic sampling; Automatic sampling on-line with a multi-pass valve group and testing in the matching chromatography; A multi-valve manifold for convenient operation.

System status is available at any time, Labsolar-6A photocatalytic test device monitors the system reaction pressure, temperature, automatic multi-valve status and so on.

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
