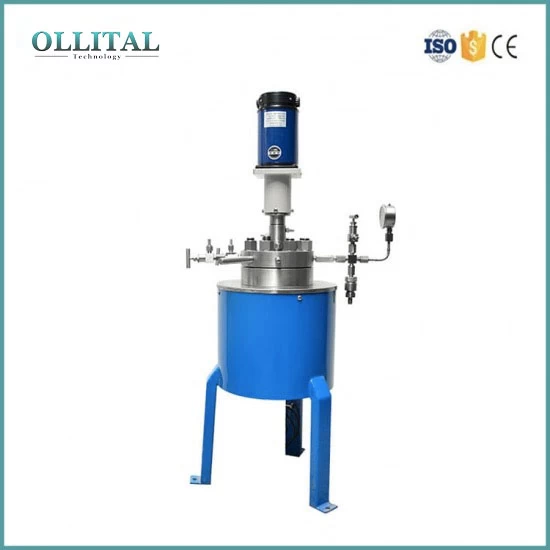

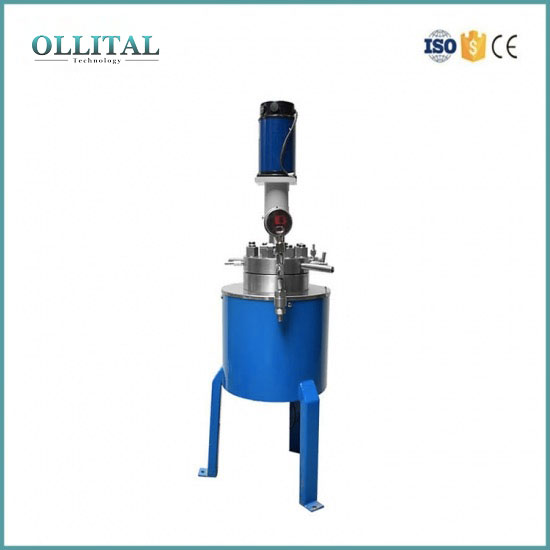

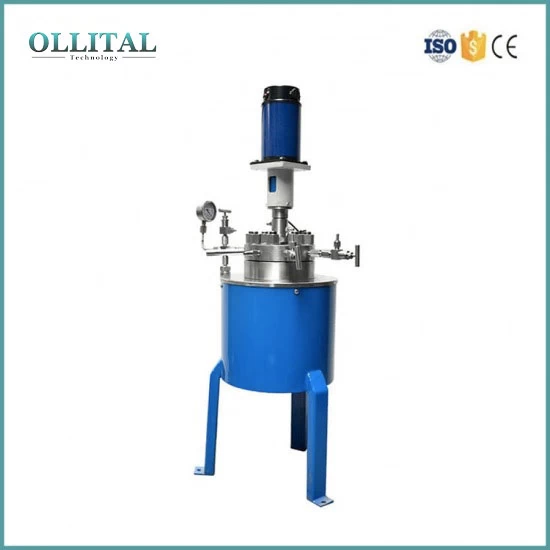

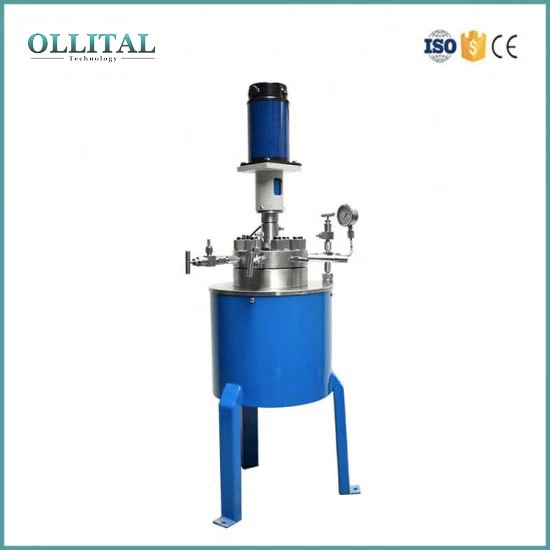

Lab Stainless Steel Micro High Pressure Stirring Reactor


  • Packaging Details Standard export wooden box
  • WarrantyOne Year
  • Lead Time6-8 day
  • Service temperature350℃
  • Use pressure 22Mpa
  • Capacity20L
  • VoltageAC108V~240V
  • Minimum Order Quantity1
  • Model NumberOLT-HP-20

Stainless Steel High Pressure Reactor Used in Lab is a kind of stirring and reacting equipment which can make all kinds of chemical material efficiently stir under the condition of higher pressure, vacuum, and temperature in order to strengthen the mass transfer and heat transfer process.

Model

OLT-HP-O5

OLT-HP-O1

COLT-HP-25

OLT-HP-5

OLT-HP-1

OLT-HP-2

OLT-HP-2

OLT-HP-5

OLT-HP-10

OLT-HP-20

OLT-HP-30

Capacity (L)

0.05

0.1

0.25

0.5

1

2

3

5

10

20

30

Setting pressure (Mpa)

22

Setting temperature ()

350

Accuracy of temperature

control ()

±1

Heating method

General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc

Stirring torque (N. cm)

120

Heating power (kW)

0.6

0.8

1.5

2

2.5

4

7

10

10

Temperature controller

Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter.

Temperature controller

working environment

Ambient temperature 0-50℃, relative humidity 30-80%

Lifting mode

manual lift or electric lift

Material

304/316 Stainless steel, Titanium, also can plus PTFE liner

  1. Use bolted structure, reactor cover could be lifted, so topple discharging or bottom discharging are both available.
  2. Equip with intelligent controller to collect and control the data of motor speed, reaction temperature and pressure, high precision, easy to operate and interfere resistant.
  3. Use silicone oxide ceramic heating component, stirring speed is adjustable according to your needs.
  4. High pressure reactor is equipped with explosion-proof valve, which is safe and reliable.


Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda  Controller-Digital Display
 Intelligent digital temperature control meter, with the            functions of automatic temperature control, speed              display and stepless speed control, equipped with              heating electric meter, motor ammeter, working time            display meter.
 Static Seal-No Leakage
 Reaction vessel stationary ring and stationary ring              base create the perfect seal with no need for o-rings,          according to their structural features, contact stress            increased with increasing working pressure, sealing            performance is better under the high pressure.
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda  Pressure Gauges-Seisnic Stability
 Seismic pressure gauges for the environment places          severe vibration, the pulse of media tolerance, and the      impact of a sudden unloading, gauges clear                        instructions and stability, with good vibration                        resistance.
 Safety Valve-Safe and Sellable
 The reaction kettle equipped with safety valve, that            adopted blasting diaphragm, blasting numerical error is      small, instantly exhaust gas fast, safe and reliable.              Each valve adopts needle valve, reciprocating closed          form, seal is reliable and durable. All safety valves with        resonable installation and releasing unblocked.
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda
