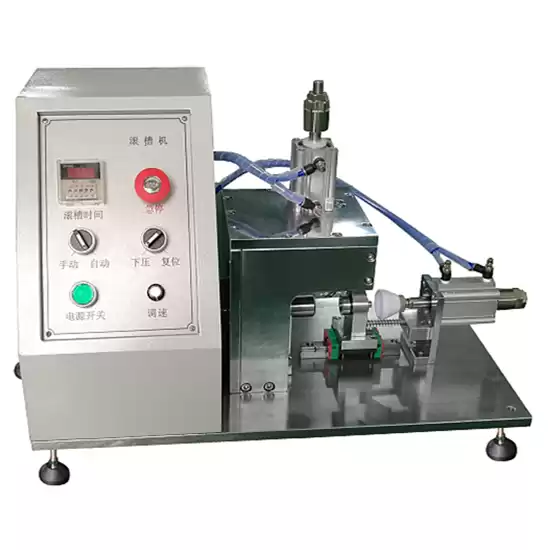

Lab Roll Grooving Groover Machine For Supercapacitor



It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.

CE Certificate semi-auto grooving machine for all kinds of cylindercial battery 18650, 26650, CR123A and supercapacitor with changing die.



Functional characteristic:

The channeling molds that are equipped withstandard 18650 cylindrical battery;

It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds;

The dimension of the channeling can be adjusted slightly,the size is small,which makes it easy to operate and the appearance is attractive;

The channeling is high precision and the dimension is stable.



SPECIFICATIONS:

Model

TMAX-ZGC32 Roll Groove Machine

Power source

AC200V/50HZ

Total power

200W

Air source

0.5-0.7Mpa

Depth of the channeling

1.2-2.0mm(adjustable)

Width of the channeling

1.5mm(The thickness of the hob can be customized)

Machining accuracy

±0.1mm

Hob life

>One million times

Capacity

semi-automatic 400 ea/h

Channeling molds

18650,26650,etc.

Channeling time

0-99s(adjustable)

Dimensions

720(L)*380(W)*480(H)mm

Weight

52Kg
