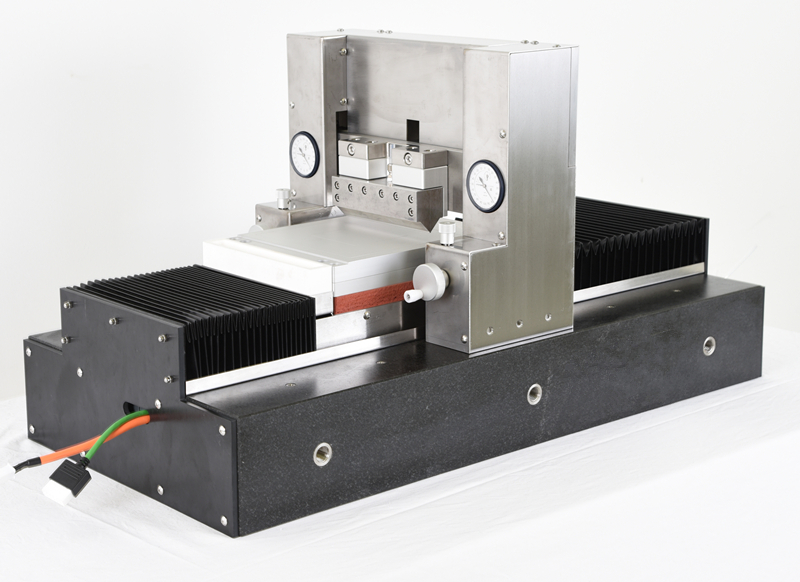

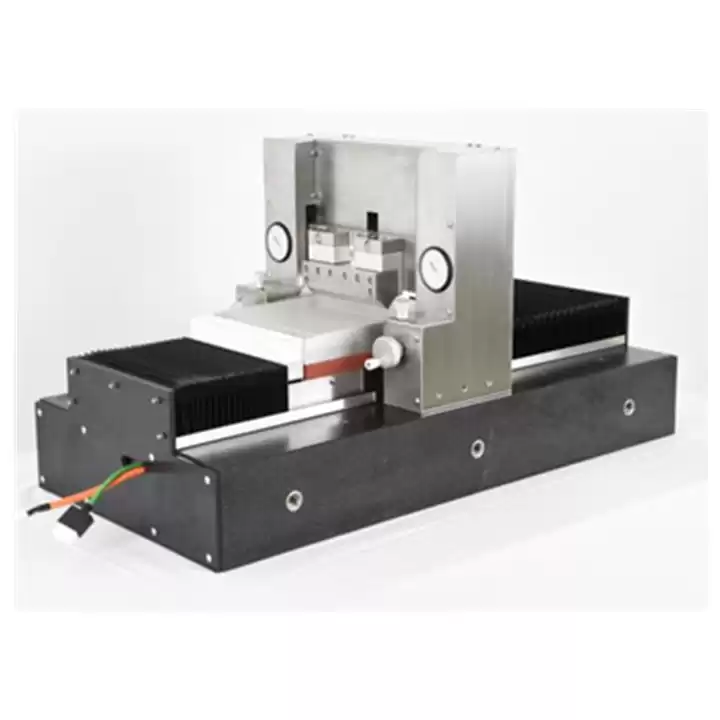

Lab Tabletop Slot Die Coater For High Precision Thin Film Coating



Manual feeding on the coating platform (fixed by adsorption) - feeding system feeding die head - coating platform forward positioning - die head down positioning - start coating - coating system coating according to the set parameters - coating completion - feeding stop - manual product removal - completion. We will still provide preuium slot die coater for you!


Equipment composition

1) Substrate positioning platform

2) Feeding system

3) Slit coating unit

4) Platform adsorption

5) Coating die position control, platform moving unit


Specifications

1. Basic parameters of base material

Type

Glass, silicon, flexible/soft sheet

Thickness

0.05~3mm

Base material length and width

Max.200mm W X 300mm L

2. Coating parameters

Coating thickness (dry)

0.05-15um(for reference, actual depends on solution characteristics)

Solid content

10-70

Viscosity

1-10000cp

3. Basic parameters of the machine

Coating method

Slot die coating

Effective width of coating

Max. 200 mm;

Coating platform speed

0.06m-3m/min

Coating platform

250mm W*350mm L,Platform flatness: ± 0.05mm

Power Supply

220 V, 50 Hz

Total power

Max. 2 KW (with heating on)

Air source

0.6 MPa

Machine dimensions

Max. 1200mm L X 450mm W X 450 mm H(for reference, subject to final dimensions)


Coating unit

Coating method

Slot die coating

Distance between die head and platform

Fine adjustable range: 0.01-10mm

Unit adjustment accuracy: 0.002mm

Coarse adjustable range: 0-20mm

With cleaning tank

Die head (effective width 200 mm)

included

Platform driven

Servo motor + ball screw + servo controller


Platform adsorption/baking unit

Heating platform

Al alloy, surface oxidation, accuracy 20μm

Heater

Electric heating components

Heating temperature

Temperature: RT-160 ℃, temperature control accuracy ≤± 3℃

(effective area: 200mmX300mm)

Platform adsorption

Aperture: 0.5mm , hole spacing: 25mm



slot die coater

slot die




Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
