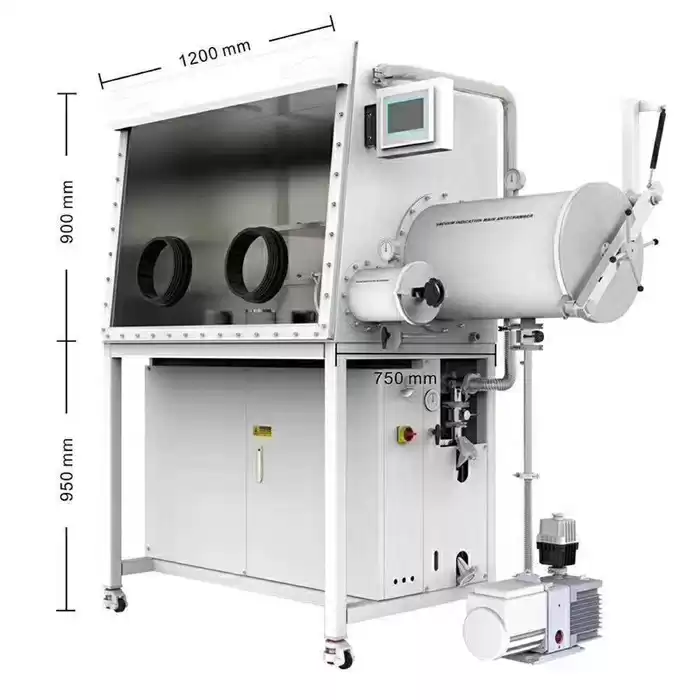

Lab Vacuum Glove Box With Anhydrous And Anaerobic Environment

1 GBP800S-2 Lab glove box  is a kind of equipment with anhydrous and anaerobic environment.

2 The lab glove box device is mainly composed of display system, transfer chamber, vacuum system, control system,box, circulation purification regeneration system components.

SPECIFICATIONS:

Model	GBP800S-2
Source voltage	AC110V-240V, Customized
Warranty	One Year limited warranty with lifetime support
Type	Single section single station
Dimension(L*W*H)	SUS304 stainless steel plate, 1200*800*930mm
Total dimension(L*W*H)	SUS304 stainless steel plate, 1915*830*1830mm
Big transitive cabin	SUS304 stainless steel, DN385*588mm
Small transitive cabin	SUS304 stainless steel, DN150*350mm
Gloves	2 pcs, butyl material, thickness : 0.4mm
Gloves port	DN215mm, Acid and alkali resistant material PPS
Purification system	Single purifying column,  With the remove of water, oxygen function
Control system	6 inch color touch screen, SIEMENS
Vacuum pump	4L/S
Pressure sensor	-2500~2500Pa, Touch screen
H2O concentration	<1 ppm (20 °C, 1 atm) Touch screen
Oxygen concentration	<1 ppm (20 °C, 1 atm) Touch screen
Organic solvent filter	21 L
Working gas	N2,Ar,He

Specifications of Standard Model of Purification Glove Box
No.	Model No.	Box Dimensions	Total Dimensions	Operating Sides	Numbers of Gloves	Options
1	GBP800S-2	1200*800*930mm	1915*830*1830mm	Single	2	Single or double purification columns
2	GBP1000S-4	1200*1000*930mm	1915*1060*1830mm	Single	4	Single or double purification columns
3	GBP1000D-4	1200*1000*930mm	1915*1060*1830mm	Double	4	Single or double purification columns
4	GBP1200S-2	1200*1200*930mm	1915*1260*1830mm	Single	2	Single or double purification columns
5	GBP1200D-4	1200*1200*930mm	1915*1260*1830mm	Double	4	Single or double purification columns
6	GBP800S-3	1500*800*930mm	2215*1060*1830mm	Single	3	Single or double purification columns
7	GBP1000S-3	1500*1000*930mm	2215*1060*1830mm	Single	3	Single or double purification columns
8	GBP1000D-6	1500*1000*930mm	2215*1060*1830mm	Double	6	Single or double purification columns
9	GBP1200S-3	1500*1200*930mm	2215*1260*1830mm	Single	3	Single or double purification columns
10	GBP1200D-6	1500*1200*930mm	2215*1260*1830mm	Double	6	Single or double purification columns
11	GBP800S-4	1900*800*930mm	2615*1060*1830mm	Single	4	Single or double purification columns
12	GBP1000S-4	1900*1000*930mm	2615*1060*1830mm	Single	4	Single or double purification columns
13	GBP1000D-8	1900*1000*930mm	2615*1060*1830mm	Double	8	Single or double purification columns
14	GBP1200S-4	1900*1200*930mm	2615*1260*1830mm	Single	4	Single or double purification columns
15	GBP1200D-8	1900*1200*930mm	2615*1260*1830mm	Double	8	Single or double purification columns

Notes： Cabinet water and oxygen content under the standard condition:   Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree). Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box) Used Gases a) Working Gas: N2、Ar、He and etc. b) Controlling Gas: Compressed air or Inert Gas. C) Restoring Gas: Mixed gas of working gas and hydrogen. Restoring gas is as same as working gas if there is only water removal system or oxygen removal system. Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements





1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
