Features

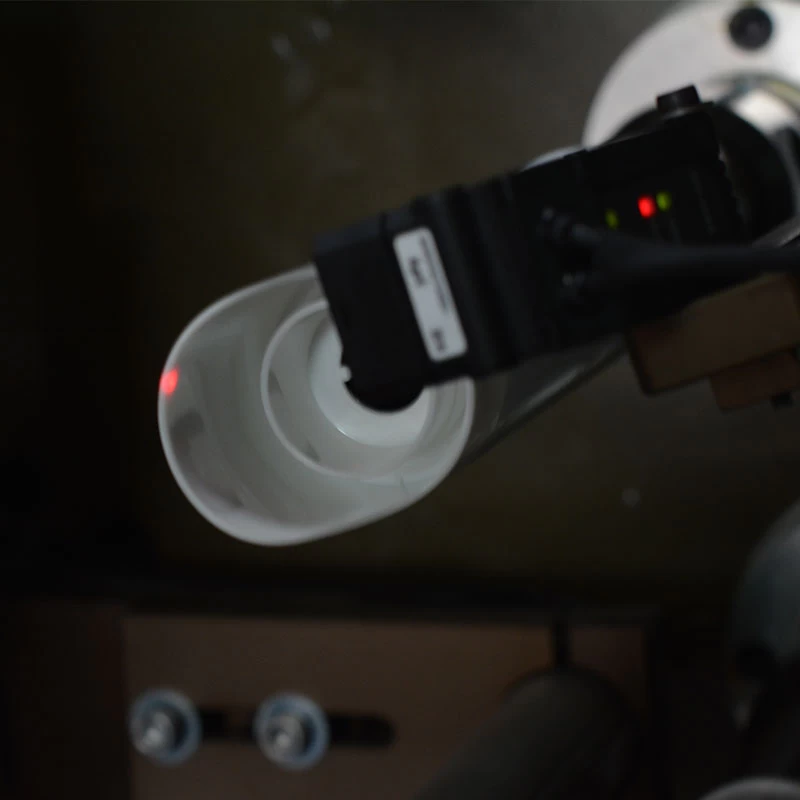

◆ Powerful functions: this machine can do single sticker labelling for round bottle and tube objects. optional   circumference registration detecting mechanism can do labelling on circumference to required position;

◆ High contact ratio: equipped with lower support mechanism, combined with 3 axle, registration mechanism, so as to avoid bottle fluctuations, increase labelling precision;

◆ Automatic bottle separation automatically, adopts intermittent loading mechanism, pushes the bottles into tooling, so as to assure registration precision and labelling effect;

◆PLC control: human-computer interaction interface has operation and training function, parameter modification easy and clear, all functions shift easily.

Technical Data

Output                        40-55pcs/min

Product size               φ(25-60)xL(70-220)mm

Label size                   L(10-150)xW(40-170)mm

Dimensions                2430x1850x1800mm

Power                         AC380V 50/60Hz 2Kw

Air pressure               5-7bar

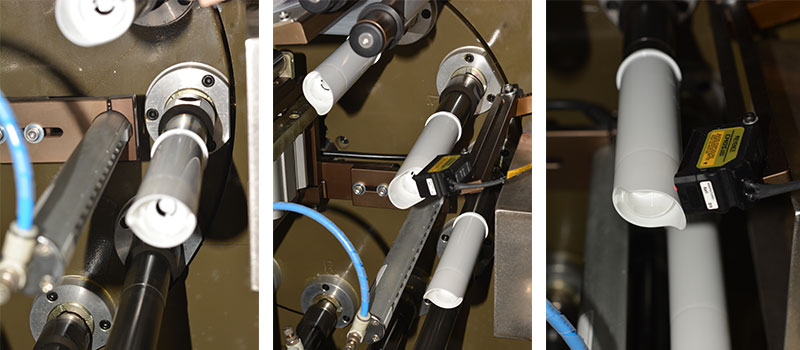

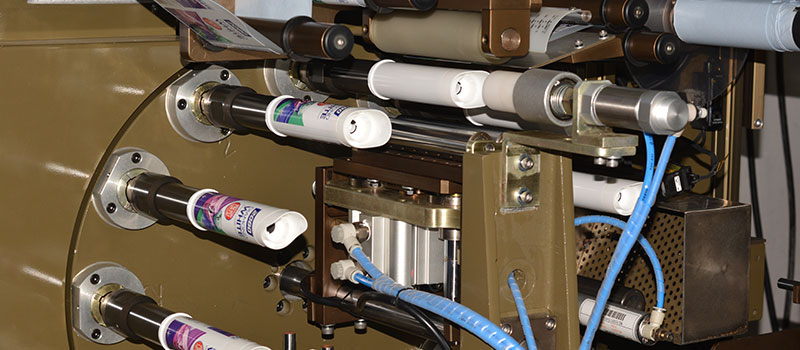

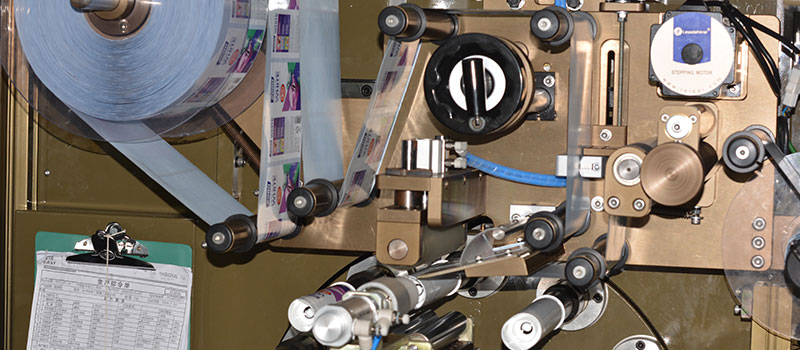

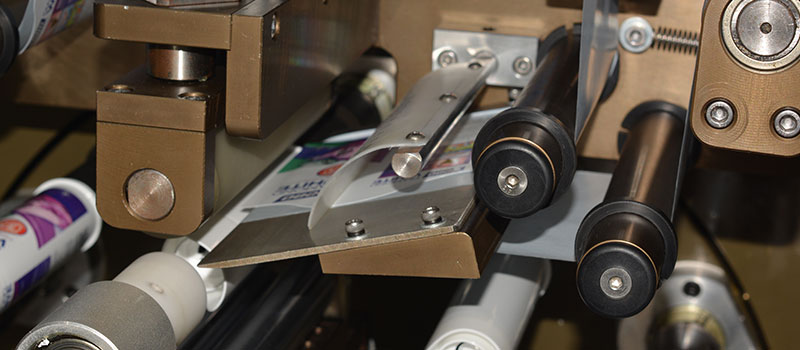

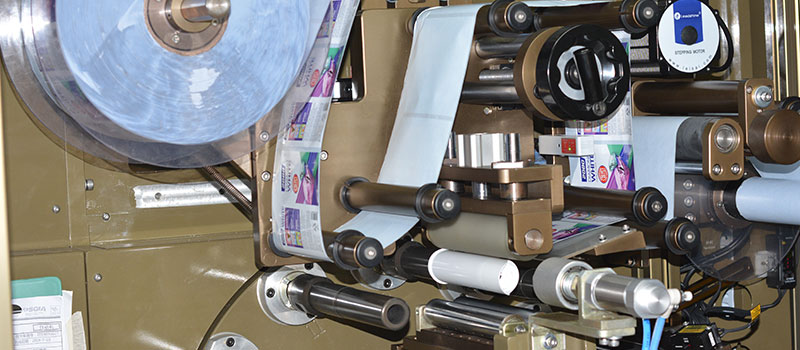

Internal structure

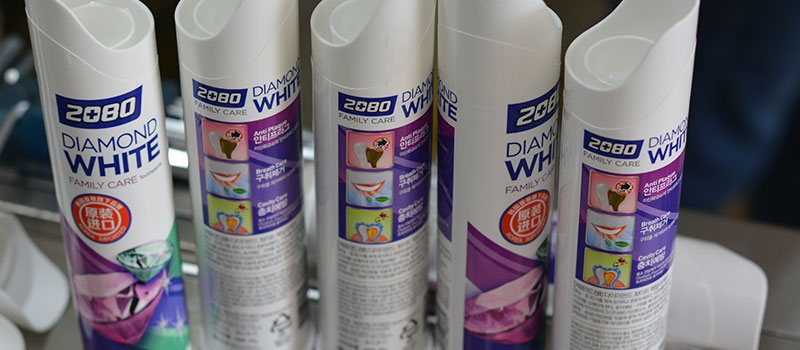

Samples

Machine running video
