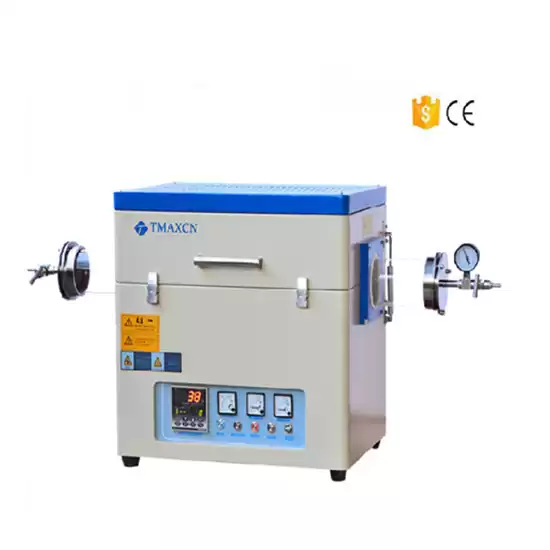

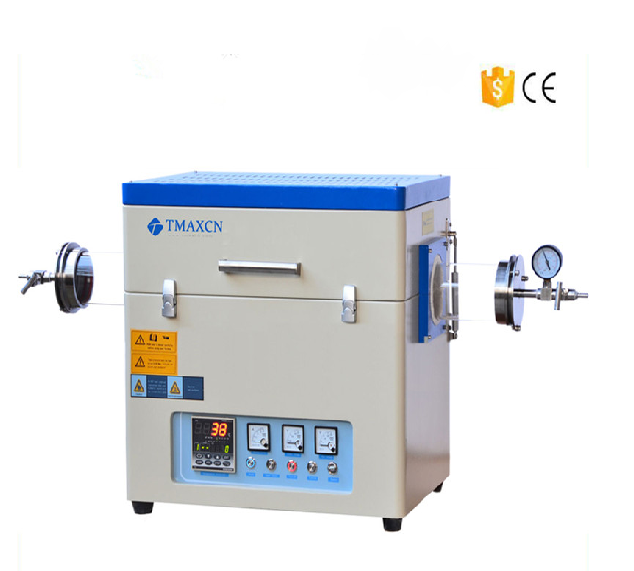

Laboratory 1200C to 1800C High Temperature Split Tube Furnace for Material Processing

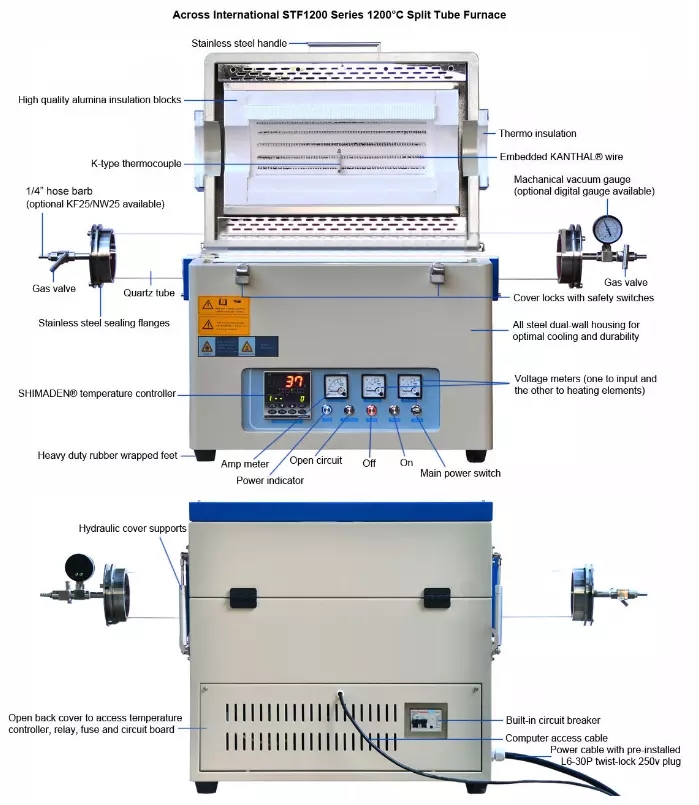

TMAX-50mmfurnace portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.
|
Tube size
|
50mm OD x 700mm length
It can be customized
|
|
Maximum working temperature
|
1200°C
|
|
Constant working temperature
|
1100°C
|
|
Minimum working temperature
|
Ambient
|
|
Constant working temperature under vacuum
|
1000°C
|
|
Rated vacuum pressure
|
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
|
|
Rated positive pressure
|
0.02 MPa / 150 torr / 3 psi
|
|
Heating element type
|
Resistance coil wire
|
|
Thermo couple type
|
K
|
|
Refractory lining
|
Mitsubishi (Japan) 1500 grade fiber alumina
|
|

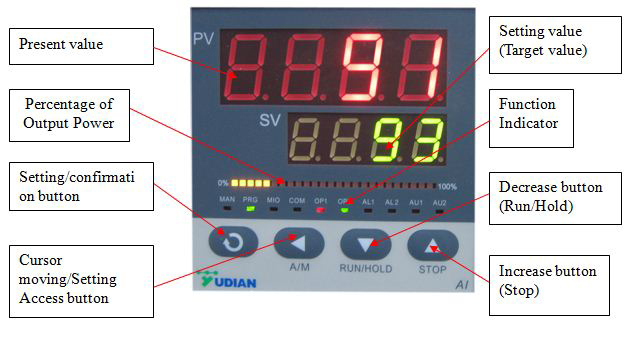

Temperature controller
|
Single PID, 30 segments
|
|
Maximum heating & cooling rate
|
< 30°C / min
|
|
Heating zone length
|
8"
|
|
Constant temperature zone length
|
3"
|
|
Temperature controller precision
|
+/- 1°C
|
|
Vacuum sealing flange kit
|
Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.
|
|
Electrical requirements
|
110VAC, 50/60 Hz single phase, 1500 watts
|
|
Gas inlet/outlet
|
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
|
|
Unit dimensions
|
27 x 13 x 16" (WxDxH)
|
|
Unit weight
|
55 Lb
|
