Laboratory Electrode Stacking Machine For Pouch Cell Production Line

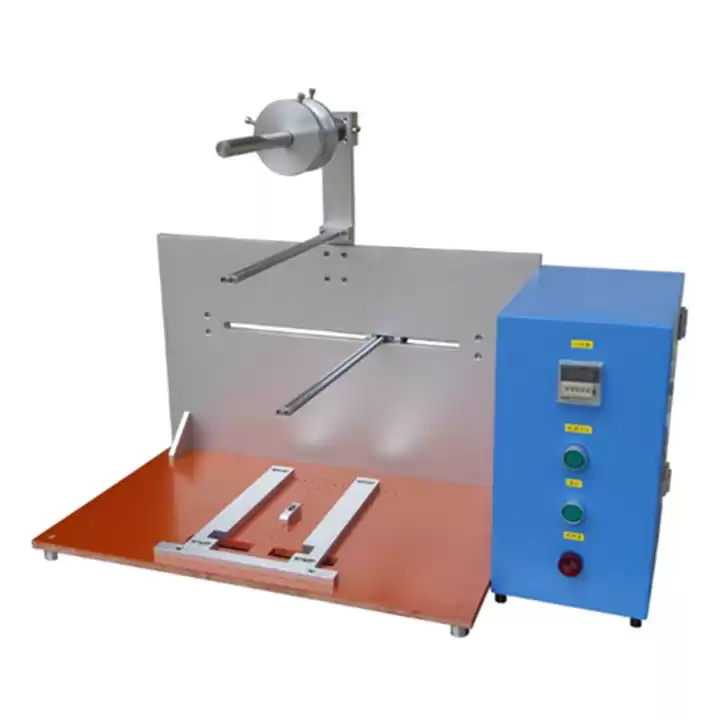

1 TMAX-JK200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.
2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.
|
Model
|
Battery Stacking Machine TMAX-JK200
|
|
Voltage supply
|
AC 110v-220V Customized by requirements, 50HZ±10%
|
|
Power
|
100W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Stacking Layer Length
|
L(0-200)mm, W(0-200)mm
|
|
Max separator feeding diameter
|
Φ250mm
|
|
Fixed travel distance
|
400mm
|
|
Travel cycle
|
1 - 9999 cycles
|
|
Air supply
|
0.25-0.55MPa (40 - 80 psi)
|
|
Machine dimension(L*W*H)
|
650*400*700mm
|
|
Controller dimension(L*W*H)
|
200*300*380mm
|
|
Weight
|
40kg
|
|
Package size for stacking machine
|
660*740*430mm
|
|
Package size for control box
|
470*330*520mm
|
