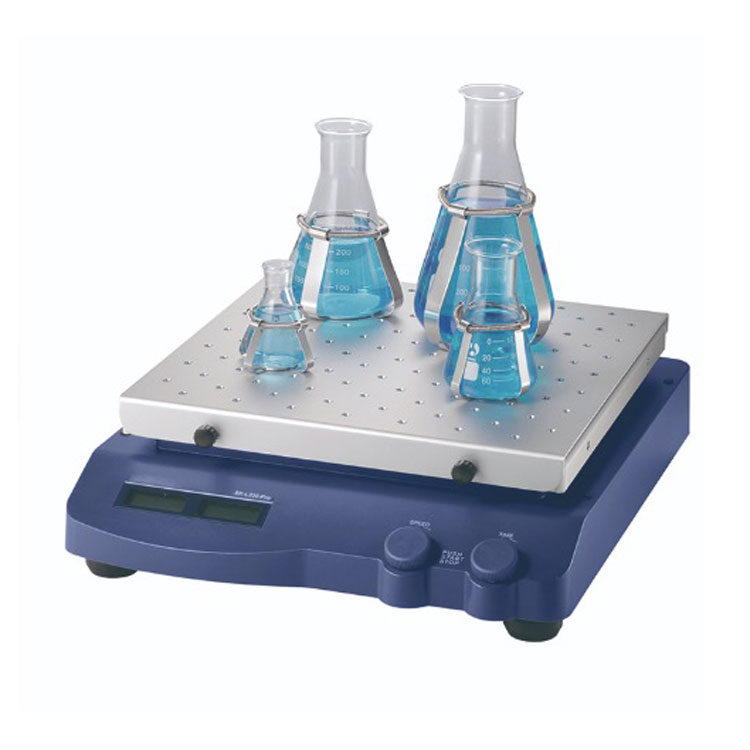

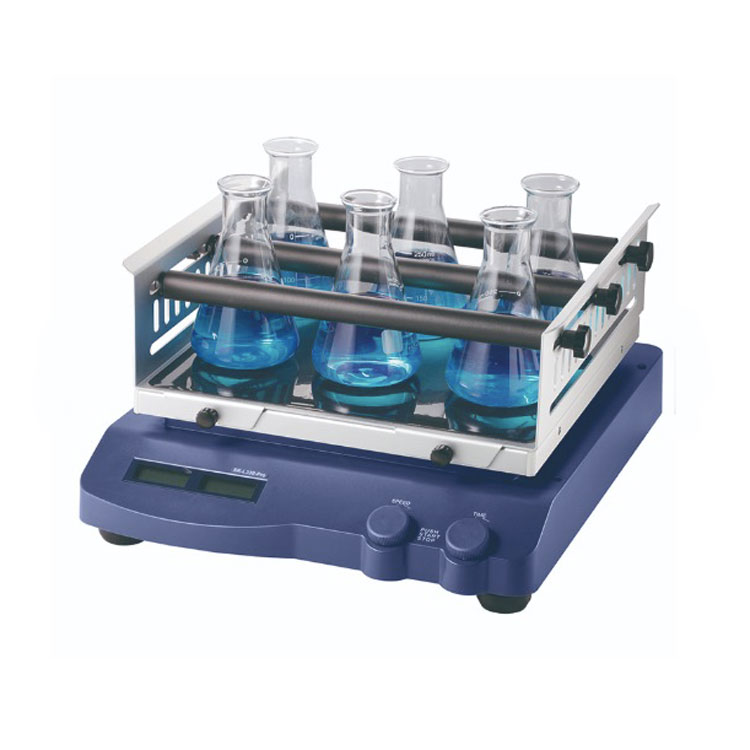

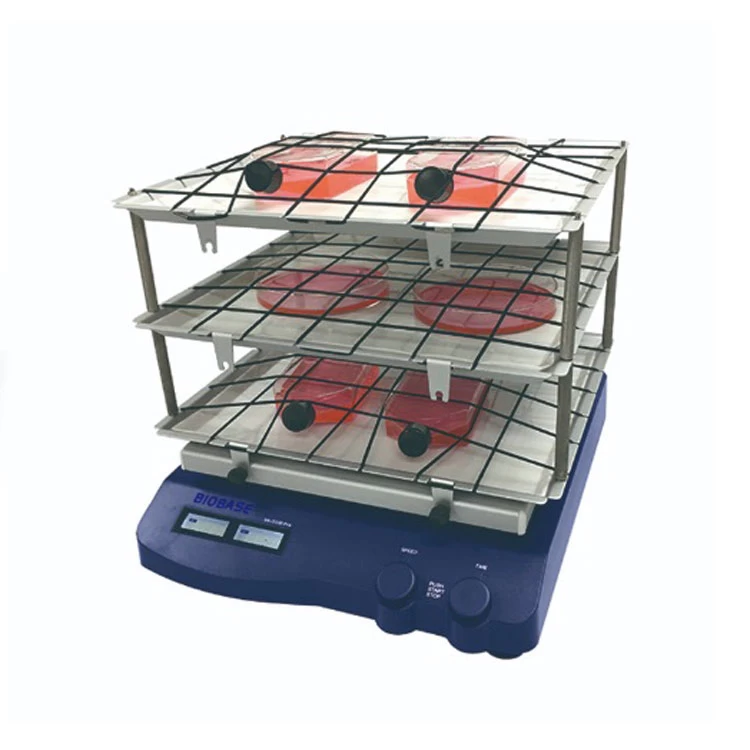

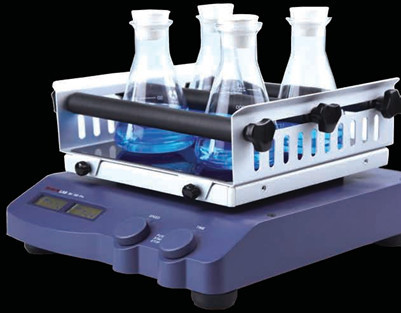

Orbital and Linear Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.
Orbital and Linear Shak
- Compact, orbital and Linear shakers with ideal shaking motion, for a maximum shaking weight of 7.5kg and 2.5kg
- LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously
- Wide range of platforms for use with a variety of vessels
- Electronic time switching clock controls time or continuous operation mode
- DC brushless motor, long service life and maintenance free
- Over speed detection and protection
- Free software ShakerPC, computer can control and document all operation values via RS232 interface
|
Model
|
OLT-DS-10
|
OLT-DS-11
|
|
Power supply
|
110/220V, 50/60Hz
|
|
Consumption
|
30W
|
|
Shaking movement
|
Orbital /Linear
|
|
Orbital diameter [mm]
|
10
|
4
|
|
Max. shaking weight
(with attachment) [kg]
|
7.5
|
2.5
|
|
Motor type
|
External rotor brushless motor
|
|
Motor rating input [W]
|
28
|
|
Motor rating output [W]
|
15
|
|
Speed range [rpm]
|
100-500 (Orbital)
|
100-800 (Orbital)
|
|
100-350 (Linear)
|
100-350 (Linear)
|
|
Speed display
|
LCD
|
|
Timer
|
Yes
|
|
Timer display
|
LCD
|
|
Time setting range [min]
|
1-1199
|
|
Run type
|
Timing / Continuous operation
|
|
Size [W*H*D mm]
|
420*370*100
|
340*300*100
|
|
Weight [kg]
|
13.5
|
8.1
|
|
Permissible ambient temp.
|
5-40℃
|
|
Permissible relative humidity
|
80%
|
|
Protection class acc.
DIN EN60529
|
IP21
|
|
RS232 interface
|
Yes
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
