Ultrasonic cell disruption system ( crusher ), ultrasonic homogenizers is a multi-function & multi-purpose instrument, which use high strength ultrasonic to cause cavitation effect in liquid, for material ultrasonic processing.
Ultrasonic cell disruptor could crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separate, homogenization, extraction, defoaming, cleaning and speed up chemical reaction,biological chemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology,etc.

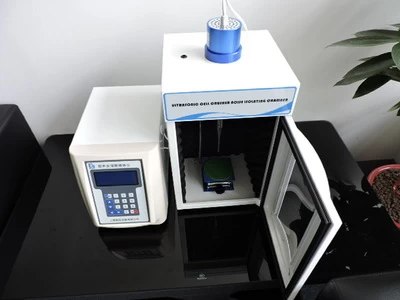

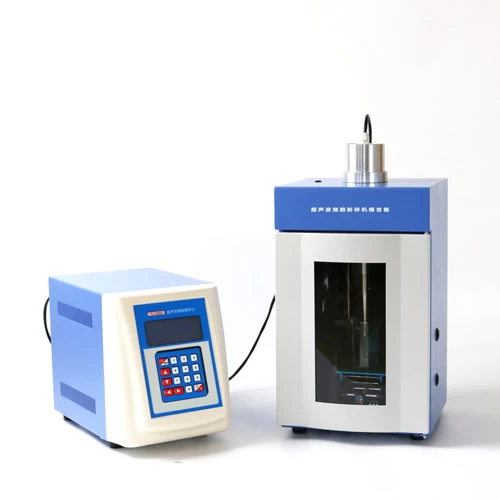

1. LCD temperature control ultrasonic cell disruption system has beautiful appearance and reliable performance.
2. LCD large screen display, central computer centralized control, ultrasonic / interval / total time / power these could be set by yourself, starting up amplitude transformer is optional, sample temperature display.
3. Automatic frequency tracking and fault automatic alarm,very convenient for your operation and guarantee your research accuracy.
4. Ultrasonic cell disruption system use PWM to control switch power, power is continuously adjustable, could store
50 sets research parameters, all functions display in large screen.
5. Instrument protection system: Over-temperature protection, over-power protection, overtime protection. Make your research be safe and longer ultrasonic cell disruptor service life.
|
Model
|
OLT-UI-2
|
OLT-UI-3
|
OLT-UI-4
|
OLT-UI-5
|
OLT-UI-26
|
OLT-UI-7
|
OLT-UI-8
|
|
Frequency
(KHz)
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
20-25KHz
Automatic tracking
|
19.5-20.5KHz
Automatic tracking
|
19.5-20.5KHz
Automatic tracking
|
|
Power
(W)
|
1-150W
adjustable
|
5-250W
adjustable
|
10-650W
adjustable
|
10-900W
adjustable
|
10-1000W
adjustable
|
20-1200W
adjustable
|
50-1800W
adjustable
|
|
Horn (mm)
|
Φ6
|
Φ6
|
Φ6
|
Φ6
|
Φ6 or Φ10
|
Φ20
|
Φ20 or Φ22
|
|
Optional Horn (mm)
|
Φ2、Φ3、
Φ8
|
Φ2、Φ3、
Φ8、Φ10
|
Φ2、Φ3、
Φ8、Φ10、
Φ12
|
Φ2、Φ3、
Φ8、Φ10、Φ12、Φ15
|
Φ2、Φ3、
Φ8、Φ10、Φ12、Φ15
|
Φ10、Φ15、Φ22、Φ25
|
Φ10、Φ15、Φ25、Φ28
|
|
Disruption
Capacity
(ml)
|
0.2-150
|
0.2-300
|
0.2-500
|
0.2-600
|
0.2-750
|
10-1000
|
20-1200
|
|
Store data
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
50 sets
|
|
Temp alarm range
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
0-100 ℃
|
|
Instrument protection function
|
Over-temp. / over-power / overtime
|
Over-temp. / over-power / overtime
|
Over-temp. / over-power / overtime
|
Over-temp. / over-power / overtime
|
Over-temp. / over-power / overtime
|
Over-temp. /
over-power / overtime
|
Over-temp. / over-power / overtime
|
|
Duty ratio
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
0.1-99.9%
|
|
Display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
LCD display
|
