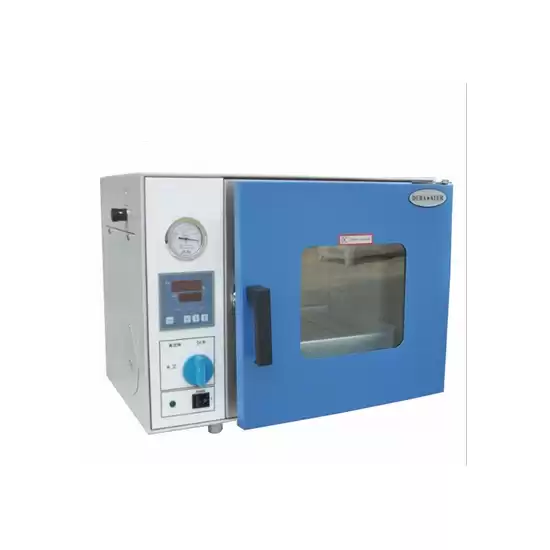

Laboratory Multiple Optional Sizes of Vacuum Oven With Digital Temperature Controller



TMAX-JK-DZF-6020 is a middle size vacuum oven with max working temperature 200°C and 25 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.


SPECIFICATIONS:

Model

6052

6210

6090

6250

6050

6051

6021

6020

6030A

Special for chemistriy

6030B/6050B

Special for chemistriy

Electrical Requirements



220V 50Hz

380V

50Hz

220V 50Hz

Input Power



2100W

1400W

3000W

1400W

1400W

500W

500W

500W

400W/700W

Temperature Range

RT

RT+10~250

RT+10~200

RT+10~250

RT+10~65

Temperature

Control/Stability



0.10.5

Vacuum Degree

133Pa

Ambient Temperature

+5~40

Interior Dimension

(mm)W*D*H

415*370*345

560*640*600

450*450*450

700*600*600

415*370*345

300*300*275

320*320*300

320*320*300

415*370*345

Overall Dimension

720*525*535

720*820*1750

615*590*1470

1050*760*910

720*525*535

580*450*450

630*510*460

610*510*490

710*560*550

shelves

2(pcs)

3(pcs)

2(pcs)

3(pcs)

2(pcs)



1(pcs)



1(pcs)



1/2 (pcs)

Chamber Material

Stainless

Rolled sheet

Stainless


Chamber and Door

1. The chamber is structured with stainless steel and welded to bracing pieces.
2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11", 25 Liter)
3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.
5. Two stainless steel shelves are included to facilitate processing efficiency.

Vacuum Pump
(optional)

Ultimate Vacuum Level: 1000 millitorrs.

Working Voltage

AC 110 - 240 V 50/60 Hz

Input Power

500W

Working Temperature

RT+10 ~ 200°C for the continuous use

Temperature Controller

1. Single point temperature setting
2. Built-in over-temperature protection
3. PID precise temperature control
4. Temperature control accuracy: +/-0.1°C
5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only

Fittings

This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Attention

1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
2. Please do not place the sample on the chamber bottom directly.

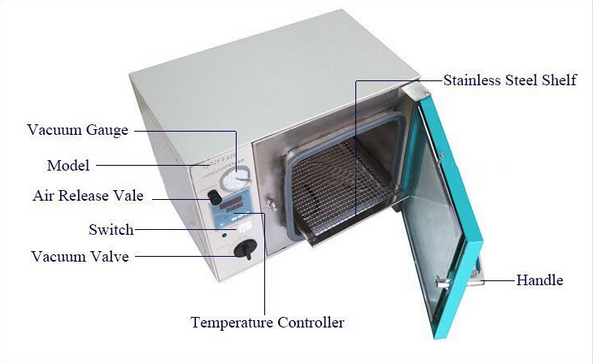

Detailed Images
