Product introduction

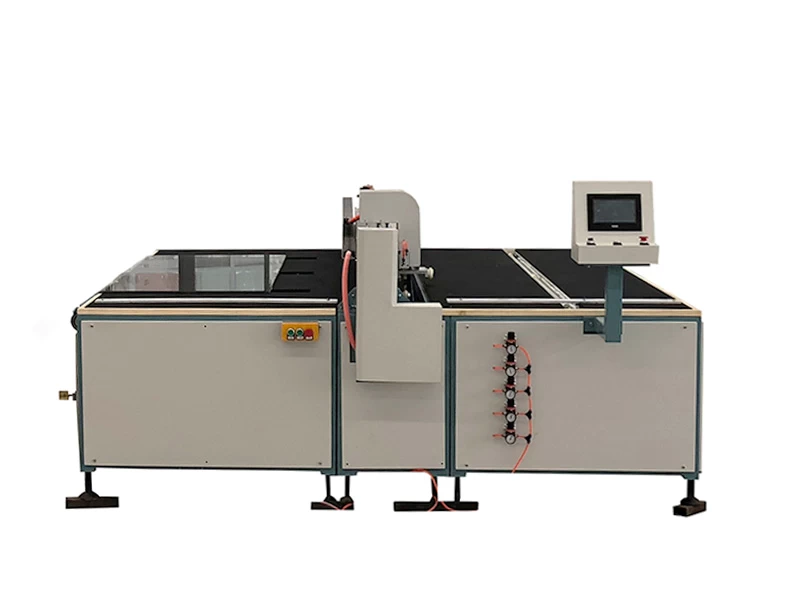

Our company research and development production SY-2621 type high precision twin-cutter full auto laminated glass cutting machine is widely applied in thick plate glass, laminated glass. The cutting equipment operation is convenient, reliable stability, cutting efficiency and high precision
Function
National standard square pipe welding frame. Synchronous belt transmission system. PLC and imported electrical components, stepper motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.
Features
1, The cutting positions of the upper and lower cutter heads are consistent
2, Upper cutter with broken wheel, automatically press the lower layer of glass;
3, When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking
Cutting precision：≤±1mm
Diagonal accuracy：≤±2mm/m
Max. Cutting size ：2440×1830mm（special size can be customized)
Min. Cutting size：150*150mm
Cutting thickness：4－16mm
Cutting efficiency：1sheet/2—4min
Cutter life：30,000m--50,000m
Operator：1－2 people
Machine dimension : 3150*2150*1250mm
Use profile
set cutting size
loading glass on table
rotate the glass
start fan
remove glass to cutting position
stop fan
cutter remove to cutting position
pneumatic mode control cutter down
cutter up after cutting
the lower pressure wheel starts the pressure glass
Lower beam move do breaking

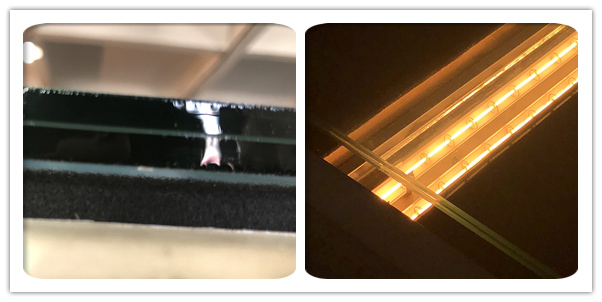

Heating or alcohol spray to breaking
finish all processes
Handing and installation notice
In the process of carrying, please gently handle and avoid collision,When installing can use level correction and adjust the four feet adjustable bracket so that the desktop level
Major dispositions：
Equipment frame structure: GB thick wall rectangular pipe welding
Straight guideway: Taiwan silver straight square guideway
Motor synchronous wheel and belt: Babel, Italy
Pneumatic components: Yongqing, Zhejiang, China
Motor: China Sutai 130 step motor
Driver: Shenzhen Kinco
PLC: Panasonic, Japan
Touch screen: Shenzhen Kinco
Platform board: original imported E0 grade high density board from Taiwan
Felt: original imported felt from Taiwan.
Fan: 4KW 2 sets made in China
Steel plate: 1. 2 mm thickness of outer shell
Heating tube: light wave infrared
