Large Commercial Event Tents Manufacturers
Available sizes:
● Clear span available from 20m to 40m.
● Length: adjustable by 5m unit.
Features:

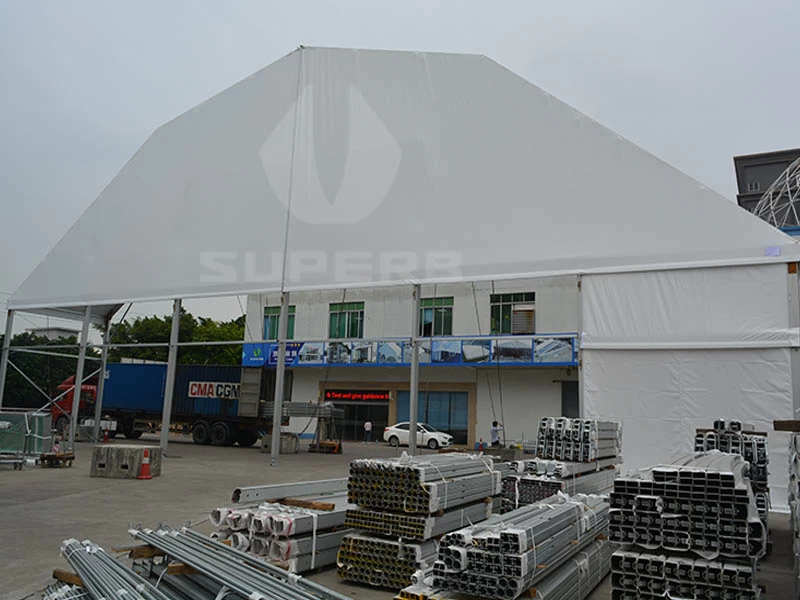

● Special polygon roof design.
● Large inside space, suitable for top grade event or exhibition.
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space can be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.
Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
Cover:

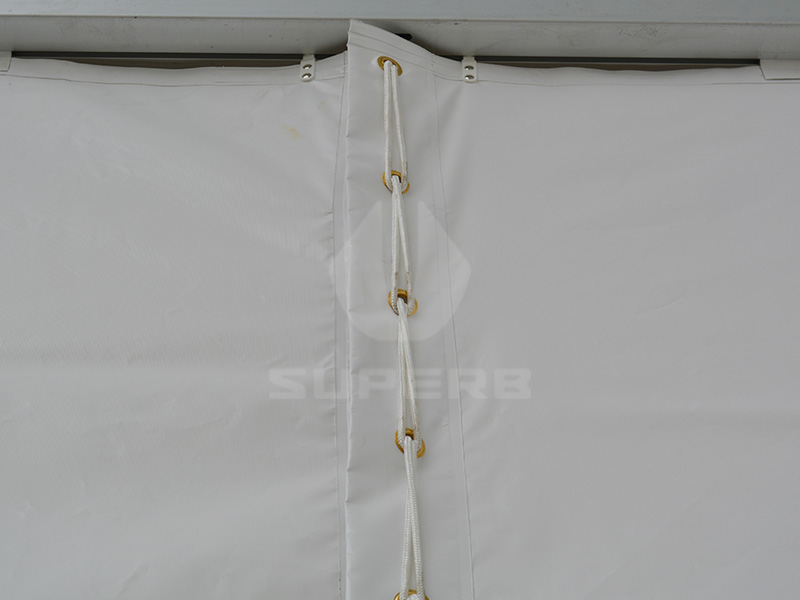

● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
The Specification of Commercial Event Tents:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Longest Component (m)
|
Wind Load (km/h)
|
|
HS30/4-5
|
30
|
3.9
|
11.6
|
5
|
10.7
|
100
|
|
HS40/4-5
|
40
|
3.9
|
13.5
|
5
|
10.7
|
100
|
|
HS50/4-5
|
50
|
3.9
|
15.6
|
5
|
10.7
|
100
|
|
HS60/4-5
|
60
|
3.9
|
17.8
|
5
|
10.7
|
100
|
|
Main frame Profile
|
350x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The Accessories of Commercial Event Tents:
