Large Custom Outdoor White Event Tents With Different Size
Superb Tent Co.,Ltd provides the custom solutions for all types of large-scale structure applications in the utmost comfort and style. This structure can be designed with the upper floors having a viewing balcony ideal for event and hospitality suites at major sporting events.
The Superb Tent structures are two floors with semi curved roofs and can offer a 5.00m wide spectacular covered terrace that can be built as a straight or L shape configuration, ideal for spectator viewing at major sporting events.
White Event Tents's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
White Event Tents's Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.

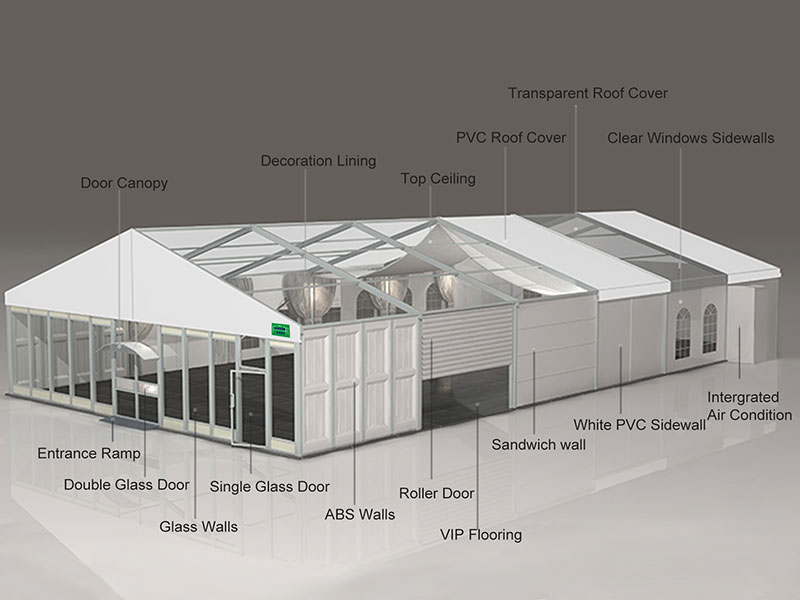

● Full line accessories available.

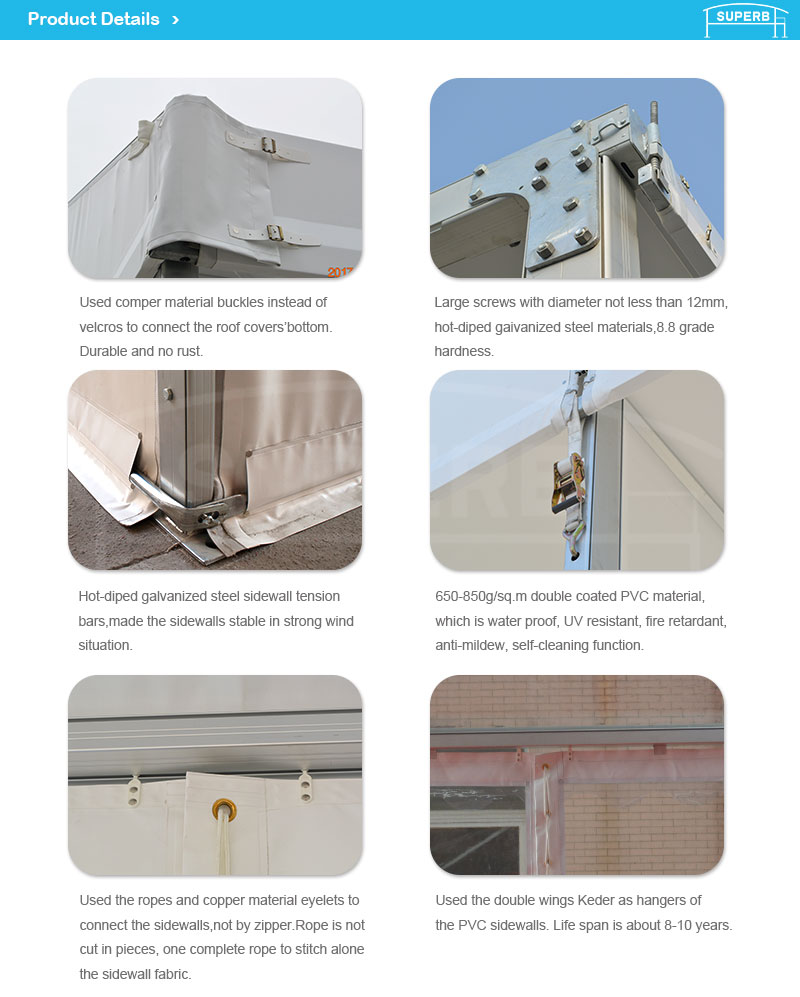

White Event Tents's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.

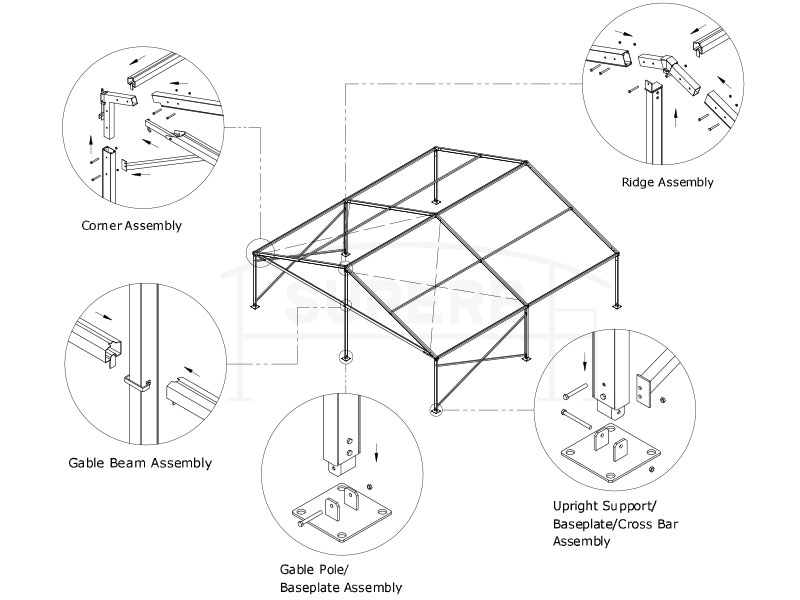

White Event Tents's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
The Specification of Large Custom Outdoor White Event Tents With Different Size
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
WS6/3-3
|
6
|
3
|
4.1
|
3
|
20°
|
3.5
|
80
|
|
WS9/3-3
|
9
|
3
|
4.6
|
3
|
20°
|
4.9
|
80
|
|
WS10/3-3
|
10
|
3
|
5.1
|
3
|
20°
|
6.5
|
80
|
|
WS15/3-3
|
15
|
3
|
5.6
|
3
|
20°
|
8.1
|
80
|
|
Main
frame Profile
|
122x68x3mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Steel Insert
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
