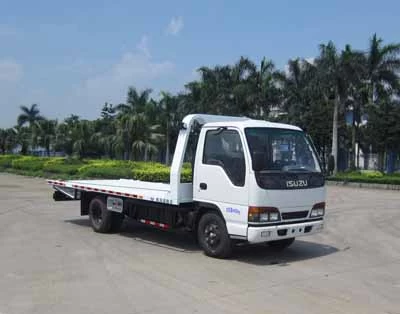

Large factory supply small light duty NKR77 ISUZU wrecker truck for sale
small light duty wrecker truck for sale
Product Advantages:
1) ISUZU NKR77 chassis
2) Absorbed advanced technology from America MILLER wrecker company and AATAC wrecker company and Britain TRUK wrecker company
3) Atopted CAE technology for key parts
4) Using HG70 high strength welding steel for the important parts
5) The hydraulic system using two-level filtering technology to make sure it cleaner
6) Folded platform
7) Rolling wheel can be mounted for recovering the car with wheels braked. This invention had obtained national patent
8) Automantic fixture can be mounted
9) Platform with extremely low angle with the floor had been developed by our company, this also obtained national patent
Main technical specifications:
Specifications of NKR77 ISUZU Wrecker PT5081TQZBP
|
Wrecker Model
|
PT5081TQZBP
|
Chassis Model
|
NKR77
|
Outline Dimension (L×W×H) mm
|
8225*2350*2570
|
Wheel Base (mm)
|
3815
|
Approach Angle/Departure Angle
|
22/10
|
Front overhang/Rear overhang (mm)
|
1180/2700
|
Full load weight (kg)
|
8495
|
Curb weight(kg)
|
5880
|
Platform
|
Dimension(L×W) (mm)
|
6400×2450
|
Working Stroke (mm)
|
3600
|
Max. Loading Mass (kg)
|
5000
|
Min Angle(Folded)(°)
|
11°
|
Underlift
|
Lifting Mass(kg)
|
5000~2500
|
Max. towing mass(kg)
|
8000
|
Max. Effective Length(mm)
|
2150
|
Extension Stroke(mm)
|
1500
|
Rating Pulling Force of winch (KN)
|
50
|
Length of Cable Rope(m)
|
30
|
