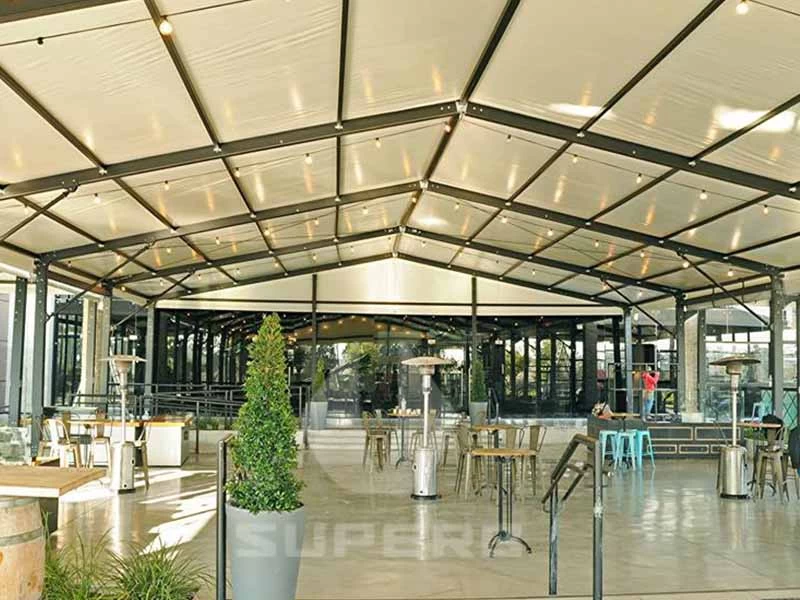

Large Outdoor Dining Shade Tent House
Dining Tent’s Advantage:

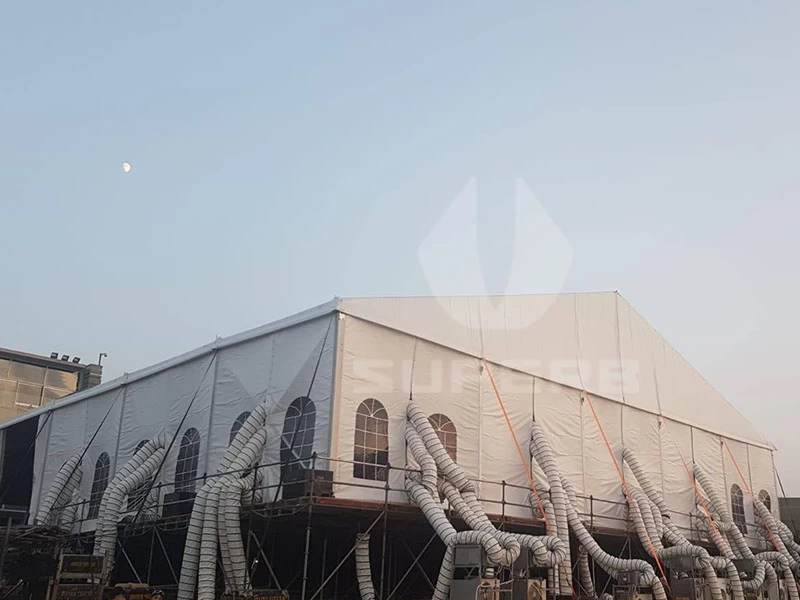

1. Popular shaped tent for all events.
2. Weather resistant with keder tracked tops and sidewalls.
3. Easy to integrate heating and A/C.
4. Roof and gable vent is available.
5. A variety of accessories available for customization.
|

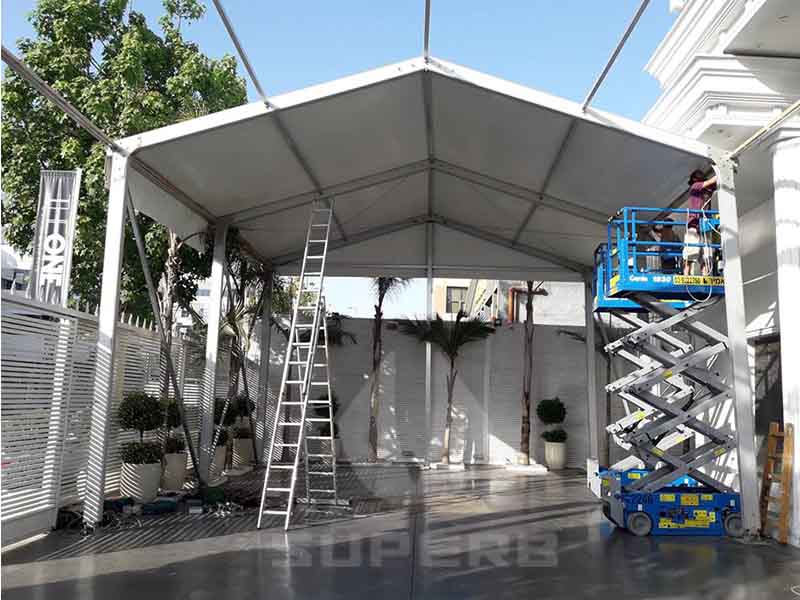

Aluminum Structure
|
Hard pressed extruded aluminum 6061/T6, anodized surface finishing
|
|
High Performance Fabric
|
Double PVC coated polyester fabric, 750g-850/sq. m, water proof,
UV resistance, anti-mildew, fire retardant to DIN4102 B1/M2
|
|
Eave Connections
|
Hot-dip galvanized steel
|
|
Main Frame Profile
|
256X121X5mm
|
|
Safety parameters
|
Wind load: 100km/h
|
The Specification of Dining Tent:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
The accessories of Dining Tent:
