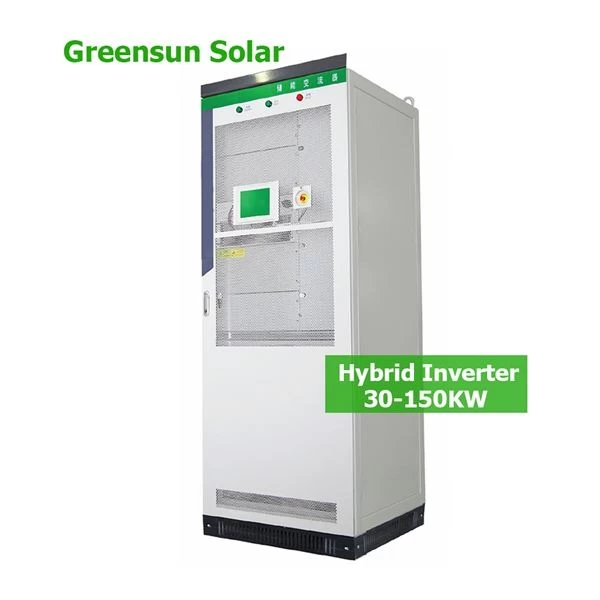

Greensun Hybrid Storage Solar Inverter Commercial Use
Large Storage On Off Grid Inverter 50KW 100KW Hybrid Inverters for Energy Systems Project
Large Storage On Off Grid Inverter 50KW 100KW Hybrid Inverters for Energy Systems Project
Model
|
50KW-EU
|
100KW-EU
|
50KW-US
|
100KW-US
|
Utility-interactive Mode
|
|
Battery Voltage
|
400V(250~520V)
|
400V(250~520V)
|
Battery DC Max Current
|
150A
|
300A
|
150A
|
300A
|
PV Voltage
|
520-900V
|
520-900V
|
520-900V
|
520-900V
|
AC Voltage
|
480V 60Hz
|
480V 60Hz
|
400V 50Hz
|
400V 50Hz
|
AC Current
|
60A
|
120A
|
60A
|
120A
|
Stand-alone Mode
|
|
|
Battery Voltage
|
250~520V
|
250~520V
|
Battery DC Max Current
|
150A
|
300A
|
150A
|
300A
|
Nominal AC output power
|
50KW
|
100KW
|
50KW
|
100KW
|
AC Max Power
|
55KW
|
110KW
|
55KW
|
110KW
|
Cooling
|
Forced air cooling
|
Forced air cooling
|
Size (W*H*D)
|
800*2160*800mm
|
800*2160*800mm
|
Peak efficiency
|
95.50%
|
95.50%
|
95.50%
|
95.50%
|
Compliance
|
UL, CSA, IEC, VED, CE
|
Hybrid
grid inverter is a key part of the energy storage solar system, which
converts the direct current of solar modules into alternating current.
The hybrid network energy storage inverter has its own charger,
which can be directly connected to lead-acid batteries and lithium iron
phosphate batteries.
Inverter specifications include single-phase 220-240v,
50hz; three-phase 380-415V 50hz; single-phase 120v / 240v 60hz; and
three-phase 480v.

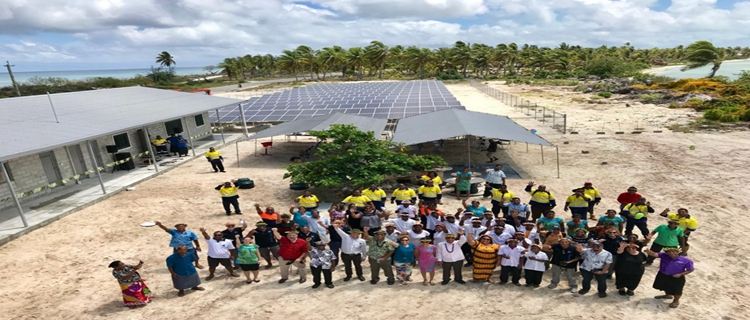

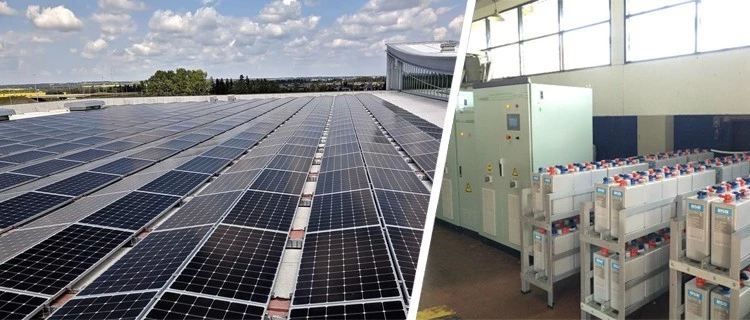

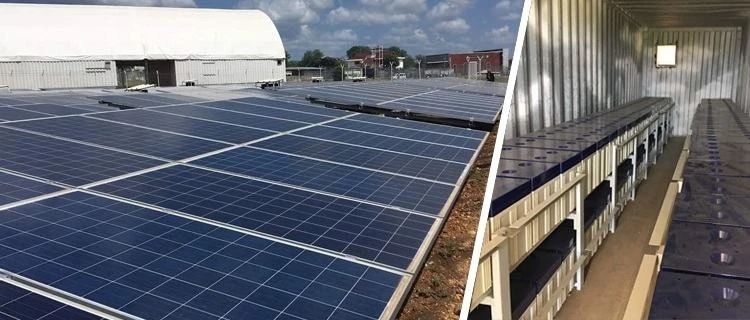

Our Company Projects for Reference
One stop solution for solar power system.
