Parallel Forensic Technology
The Parallel Forensic Technology makes a leap in promoting the duplication speed, that is, four times faster as regular methods.
The Parallel Forensic Technology helps MFT achieve a parallel duplication speed up to 7.5GB/min, and SDD speed up to 19.5GB/min. It supports flexible configuration that allows investigators to customize the sources, destinations, and parameter settings in data duplication.
Multi-task Supported

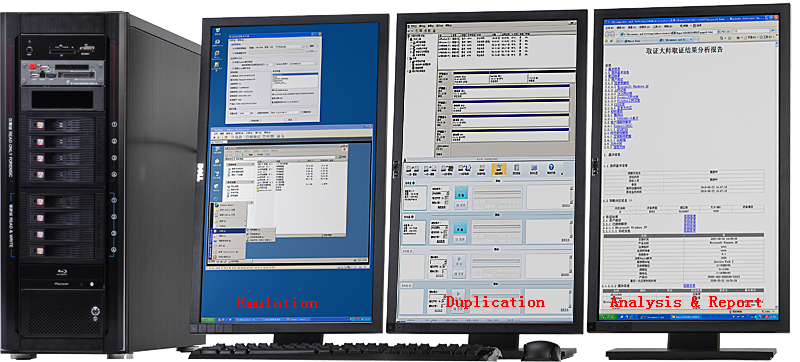

User can load several hard disks( maximum 8）into Forensic Master for analysis or keyword search with special optimization of Parallel forensic technology and multi-task management, which makes full use of CPU,extremely saves time and costs. This feature allows the MFT makes largest use of CPU resources, and Forensics Tower solution provide three LCD to display different task such as analysis,duplication and emulation
Rich interfaces
SAS, SATA, IDE, SCSI, and USB at source
SATA/SAS supported on destination
All sources are write-blocked

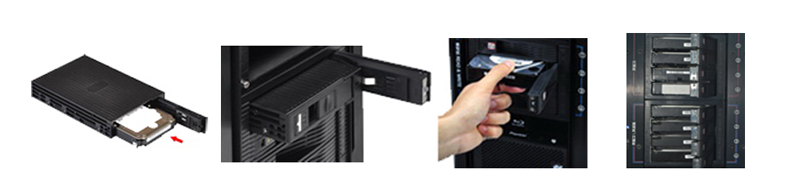

Allow access to various storage cardsVentilated Drive Holder
All sizes of IDE (3.5 ", 2.5 ", 1.8 ") with adapter, SCSI (with adapters)
SATA drives can be put in the drive holder to be imaged or analyzed
The silo is ventilated and stable, which protect drives safely.
Hot Plugging & Cable Free Design
All SATA/SAS interfaces and four target R/W ports (SATA/SAS) are hot-pluggable with cable-free design. Function

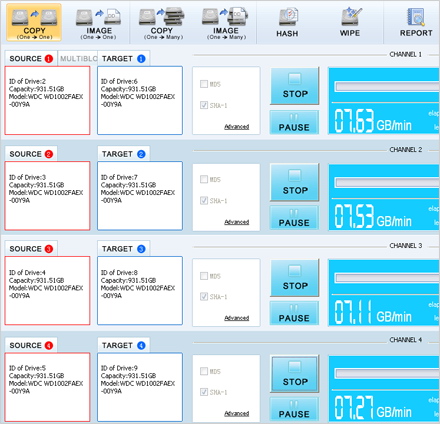

Duplication: The speed is more than 6GB/min, SDD speed up to 13.6GB/min. Support Hard drive Duplication of Source to Destination combination as “1HD to 1HD”, “1 HD to 2 HD”, “1 HD to 3 HD”, “1 HD to 4 HD”, “2 HD to 2 HD”, “3 HD to 3 HD”, “4 HD to 4 HD”

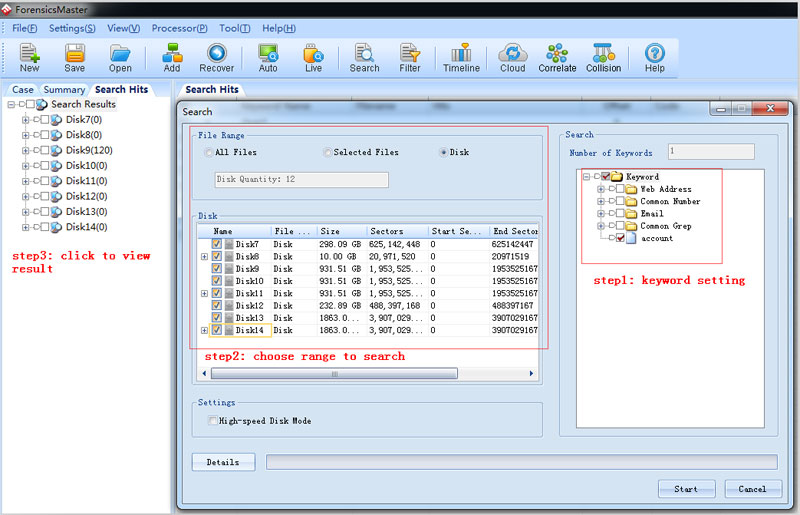

Analysis (optional): Use “Forensics Analysis Software” or customers install EnCase / FTK to analyze
Emulation (optional): Support disk with OS win2000/2003/XP/Vista/Win7, but not support image emulation
Write-Blocker & Read/Write Ports:1 x DVD BlueRay Recorder1 x Media card reader (R/RW)1 x Integrated USB Write Blocker1 x IDE read Blocker (contain 2.5’ notebook hard driver converter)1 x SCSI read Blocker（Include 68 pin-80 pin converter）4 x SAS/SATA read Blocker4 x SATA Read/Write Ports
