Product Name
LCD 12V Lithium Battery LiFePO4 240Ah Energy Storage System ESS Battery
Highlights
•Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
•Easily scalable and stackable 2.5kWh modules - up to 200kWh in a single installation
•Great protection & high quality engineered BMS with cell level monitoring
•Short circuit/Temperature/Balancing/Over Current/Over Voltage protection
•Simple rack-based installation system

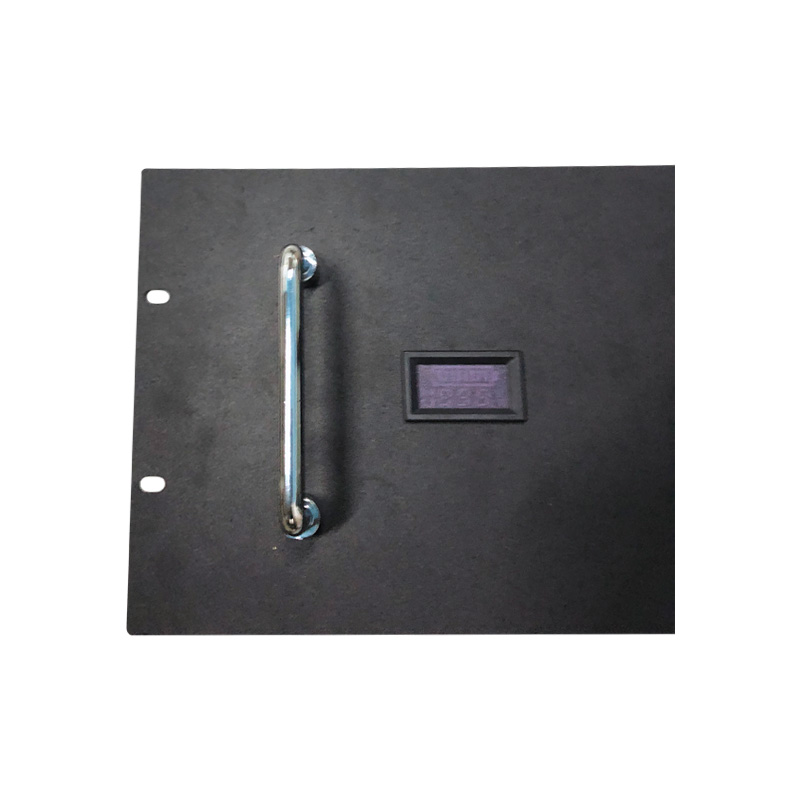

•LCD display available

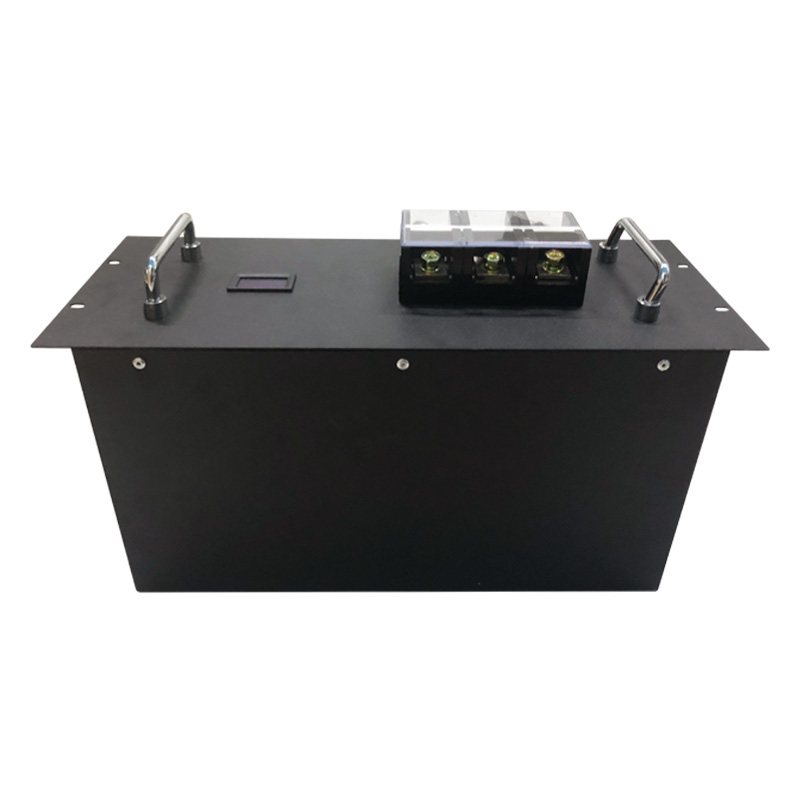

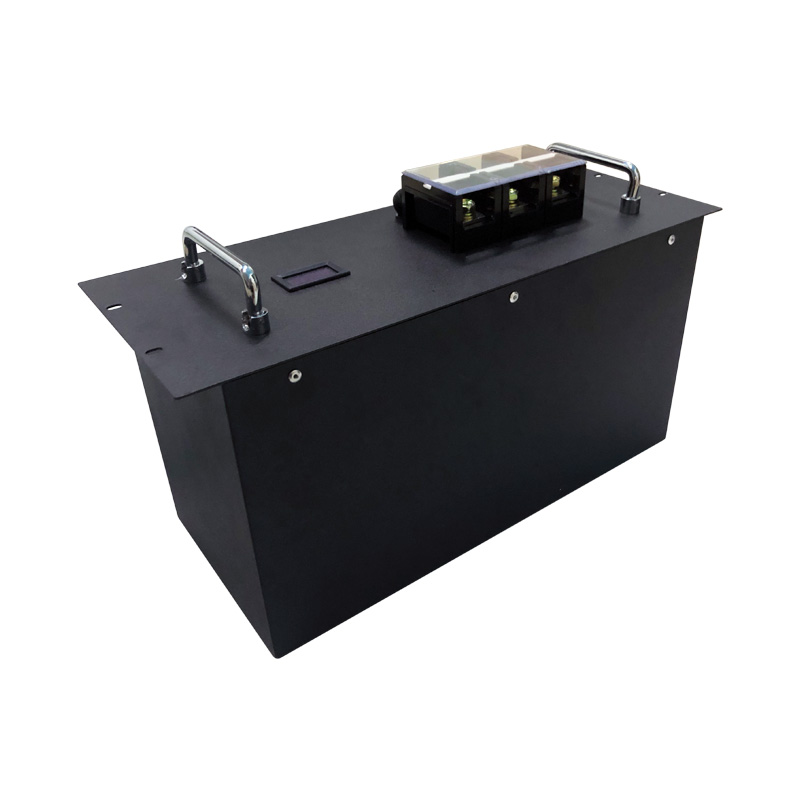

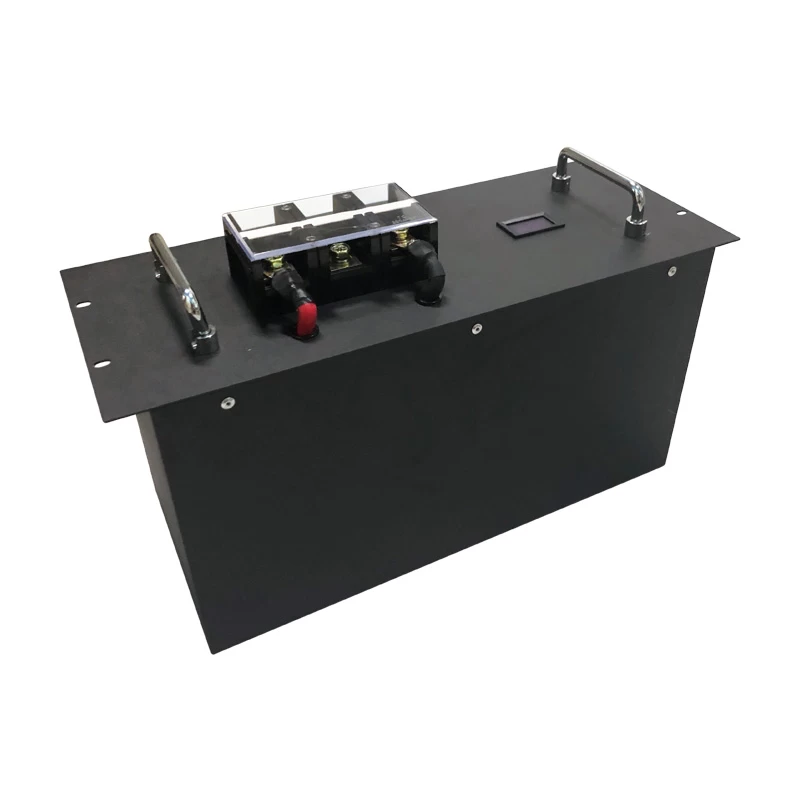

12V 240Ah 2.88KWh ESS Solar Systems Picture as Below
Specification for LiFePO4 solar 12V 240Ah
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
12.8V
|
|
2
|
Nominal Capacity
|
240Ah
|
|
3
|
Cell Inside
|
LiFePO4 3.2V cell
|
|
4
|
Configuration
|
4S2P
|
|
5
|
Standard Charge Current
|
0.2C-0.5C
|
|
6
|
Max. Charge Current
|
1C
|
|
7
|
Battery management System (BMS)
|
BMS-L4S200200
|
|
8
|
Continuous Discharge Current
|
200A
|
|
9
|
Peak Discharge Current
|
400A
|
|
10
|
Full Charged Voltage
|
14.6V(3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
15.6V (3.9V per cell)
|
|
12
|
Discharge Cut-off Voltage
|
8V (2.0V per cell)
|
|
13
|
Net Weight
|
31.2kg
|
|
14
|
Dimensions
|
L425*W190*H230mm
L475*W190*H280mm（with handle）
|
|
15
|

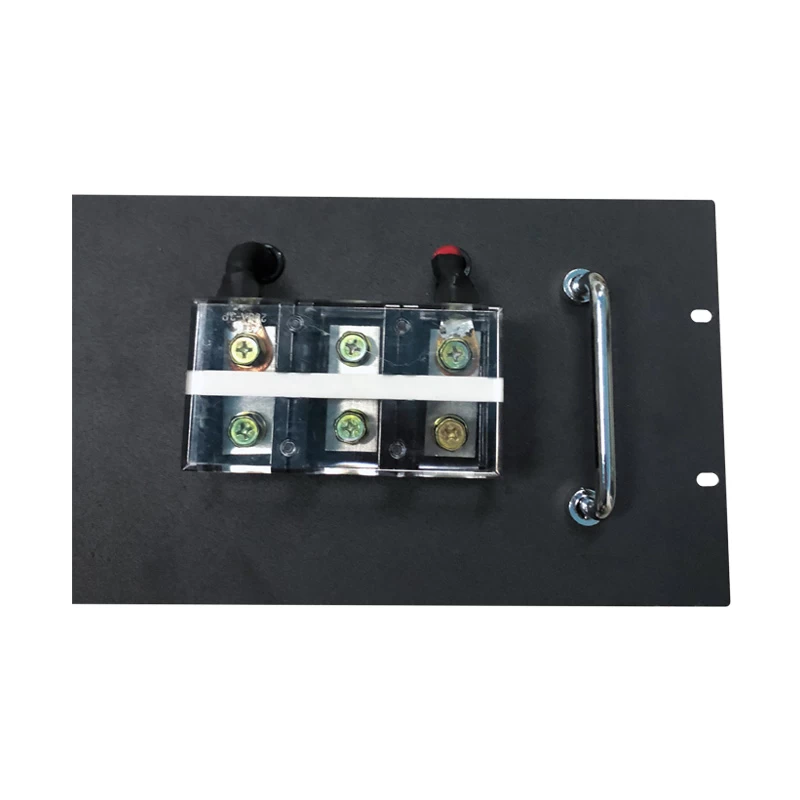

Connector
|
threaded terminals (Optional)
|
|
threaded terminals (Optional)
|
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
|
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
2000 times (80% of initial capacity at 0.2C rate, IEC Standard)
|
Other Features
-Safe and scalable
OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).
Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.
-Efficient
OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.
Application:
Related Products
With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.
Please email us at service@osnpower.com to get solution and quotation.
