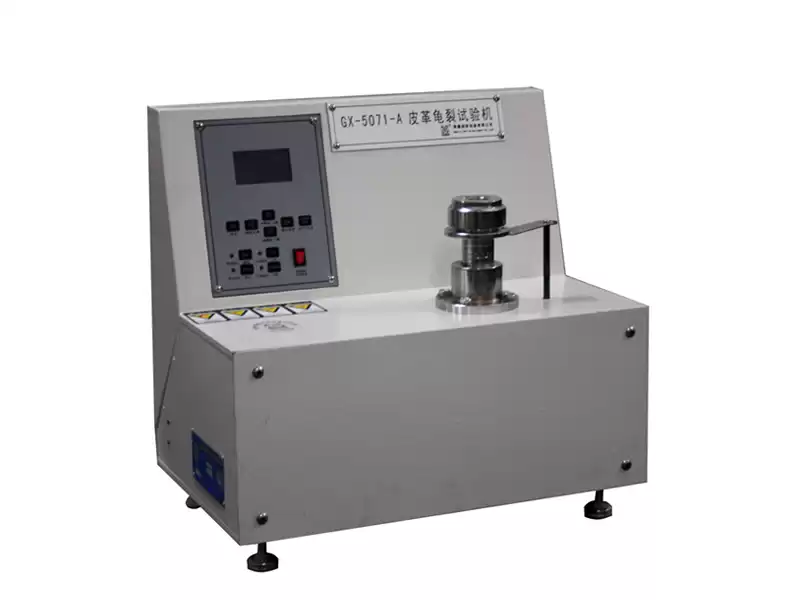

Leather Cracking Resistance Tester

Leather Cracking Resistance Tester is used to used to determine the cracking resistance of various shoe uppers, leather grains or finished surfaces using the ball burst method.

Test Standards

BS 3144.8
ISO 3379
ISO17693
DIN 53325
GB/T3903.38
QB/T 3812.7
QB/T 2712
SATRA TM166

Parameters

Model AT-L9011
Capability(Max force) 1000N
Force accuracy 0.1N
Specimen fixed central circular free area (aperture diameter) Φ 25mm
Ball size (diameter) 6.25mm
Test piece size (diameter) 44.5mm
Test speed 12mm/min
Elongation scale 0~25mm
Elongation resolution 0.01mm
Weight 40kg
Power AC 220V, 50Hz or specified

If you are looking for more lab testing equipment, please feel free to contact .
