P6-8S Outdoor LED Display main technical parameter
|
|
Physical point Spacing 6mm
|
United
board size 192X192㎜
|
Unit
box size 576×576㎜
|
|
Physical
density 27777 point/㎡
|
Luminous
color 1R1G1B
|
Unit
borad resolution 32*32=1024 DOTS
|
|
Unit plate weight 0.4㎏
|
|
Box
Resolution 96*96
|
Box
area 0.589824m²
|
Die-Cast
Aluminum box weight 10.37KG±0.05KG
|
|
Main technical parameters
|
|
Best
viewing distance 6m～80m
|
Visual
angle level≧160°optional
|
vertical≥160°optional
|
|
Average
power cinsuption ＜600W/㎡
|
Max
power dissipation＜1200w/㎡
|
Control
method：synchrocontrol
|
|
DVI
graphics card
|
Driving
mode 1/8scan
|
Repetition
frequency ≧60Hz
|
|
Refresh
frequency ≧360Hz
|
White
balance brightness ≧6300cd/㎡
|
load
voltage（AC）
|
|
Brightness
Adjustment
|
Automatic
adjustment of luminance induction
|
Class
16 adjustment
|
|
Software manual adjustment：calss 100 adjustable 100
|
|
Computer operating system
|
|
WIN98、WINXP、WIN2000,etc
|
|
Video signal
|
|
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION,etc
|
|
cintrol system
|
|
PCTV card（optional）+DVI graphics card+master cintrol
card+optical fibre transmission（optional）
|
|
MTTF ≧5000 hours
|
Life
span 75000～100000 hours
|
Pixel
runaway rate ＜0.0002
piece
|
|
Project
classification PH6-8S
|
Encapsulation
form Traid
|
LED
Encapsulation mode 2727
|
Specifications
1.led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving
5.CE.RoHS

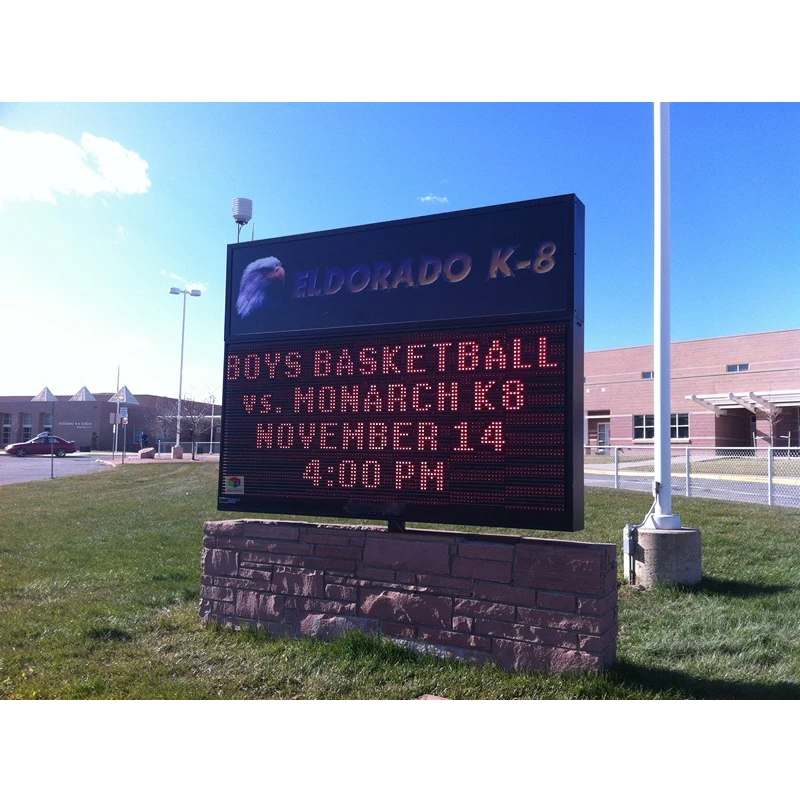

Designed to withstand adverse weather conditions and to astound audiences and make them enjoy flickering-free live videos in sharp and brilliant images. Retop Outdoor display solutions present the exceptional performance in crowded outdoor settings where are clearly visible, even the most complex advertising images and logos are precisely rendered, making it the display technology of choice for all brands.
Product Features
■ Superb brightness, color uniformity and reproduction. Brightness variances within +/- 2.5%;
■ Extremely weather-proof, adapt to different kinds of environment;
■ Support automatic fault detection;
■ Refresh rate up to 2000Hz, completely flickering-free for live videos;
■ Proprietary image processing produces sharp, brilliant images – unmatched by industry competition;
■ 6000 : 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away;
■12000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use.
