LED Column Bulb Light E27 B22 10watt 20watt 30watt 40watt 50watt
Product Description

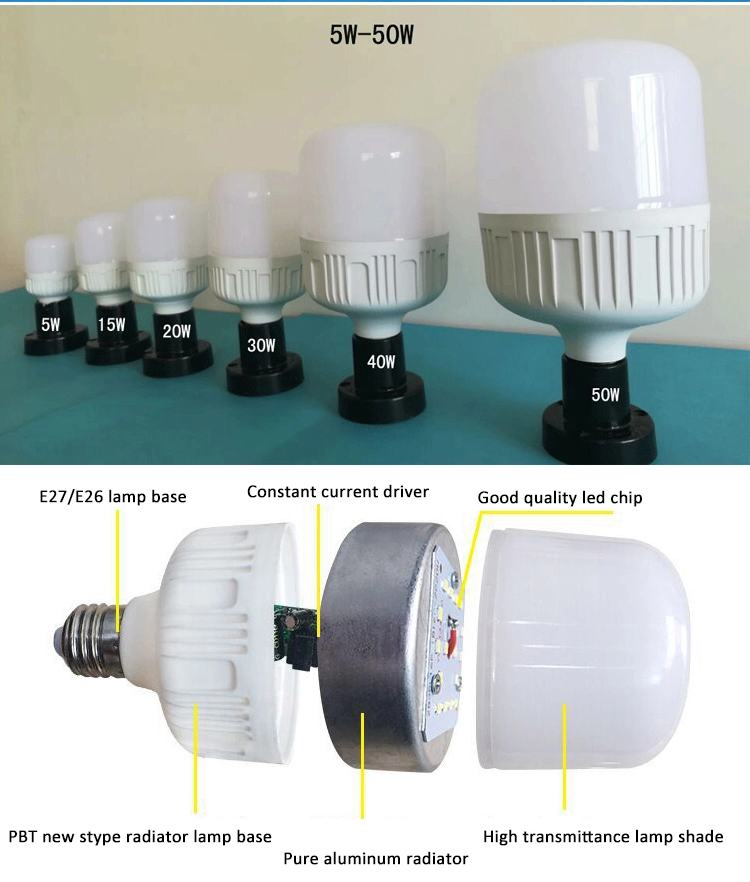

(1) High Transmittance: adopting high quality PC cover, pearly luster, high transmittance over 90%.
(2) High quality aluminum alloy housing for heat dissipation, more lighter.
High heat conductive flame retardant plastic.Aluminum inside.

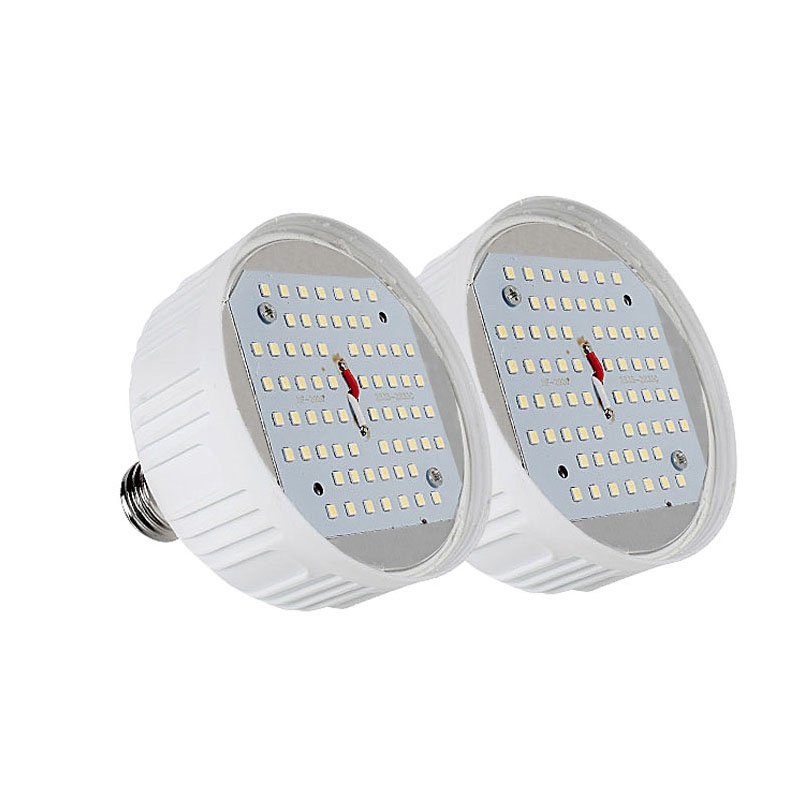

(3) Epistar LED chip and Aluminium PCB.Long light time SMD2835,use good Taiwan Epistar led chip, life span reach 30,000 hours.
(4 ) Wide range input voltage Ac 85 to 265 v. Over current /Over voltage protection.
LEEMAN DISPLAYLED BULD LIGHTING TECH DATASHEET:
|
Specification
|
|
Power:
|
50W
|
|
Type of chip:
|
SMD
|
|
Brand of chip:
|
Cree or Bridgelux or Epistar or San'an
|
|
Luminous efficiency:
|
90-110lm/W
|
|
CIR:
|
Ra≥85
|
|
Available power:
|

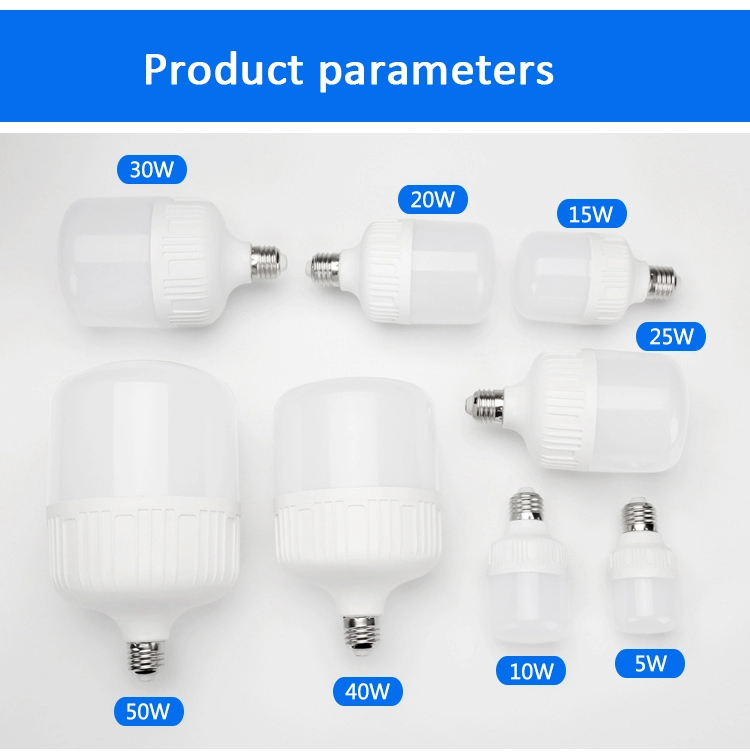

5w 10w 15w 20w 30w 40w 50w
|
|
Color temperature:
|
2700K/ 3000K/ 4000K/ 5000K/6000K
|
|
Beam Angle:
|
180°
|
|
Working life:
|
≥50000 hrs
|
|
Dimensions
|
|
Finishing
|
White
|
|
GLM-QP-GFS301-5W
|
D50*H100mm
|
|
GLM-QP-GFS301-10W
|
D60*H115mm
|
|
GLM-QP-GFS301-15W
|
D70*H128mm
|
|
GLM-QP-GFS301-20W
|
D80*H145mm
|
|
GLM-QP-GFS301-30W
|
D100*H187mm
|
|
GLM-QP-GFS301-40W
|
D120*H195mm
|
|
Working Environment
|
|
Voltage:
|
AC85-265V 50/60HZ
|
|
Working temperature:
|
-20~ +50℃
|
|
Application
|
|
Application:
|
1) Building (architecture or home) decoration
2) Home use for lighting
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement signs backlighting
|
Features:
80%~90% energy saving than incandescent lights
Lifespan 50, 000H
No UV radiation & RF interference, no flickering
CE&RoHS approved
Proprietary design for excellent thermal management
Recessed mounted for easy installation
Advantage:
1- With high quality series led we make color tempeture more even;
2- By cooperating with EURO/USA power company, we make our driver more efficiency and long life;
3- With different test machines and processes we make the products are of 0 defective rate to arrive at your hand;
4- With care & heart we handle them like BABIES;
5- With much experience in foreign, save more of your time in communication;
6- With intensive online technical support, we will answer you question within 24 hours.
LEEMAN DISPLAY LED Buld lights Features:
|
Wattage
|
20w/30w/40w/50w
|
|
Lummen efficiency
|
95-100lm/W
|
|
Surge
|
2.5KV
|
|
LED Source
|
LED 2835
|
|
Input voltage
|
AC85-265V
|
|
CRI
|
>80
|
|
working life
|
50000
|
|
Material
|
Aluminum+PBT
|
|
Base
|
E27/B22/E26
|
|
Beam Angle
|
270degrees
|
|
CCT
|
3000K/4500K/6500K
|
|
Driver
|
No-Isolated Smart IC driver
|
|
PF
|
>0.5
|
|
Warranty
|
5 years
|
