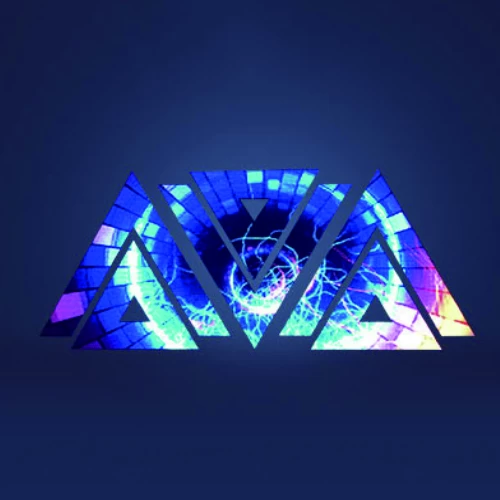

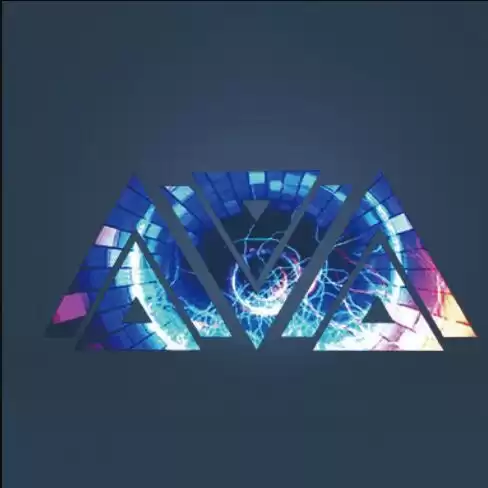

Shaped LED display / LED electronic DJ screen / bar creative LED DJ screen
Features:
Hyun, cool, odd, magic

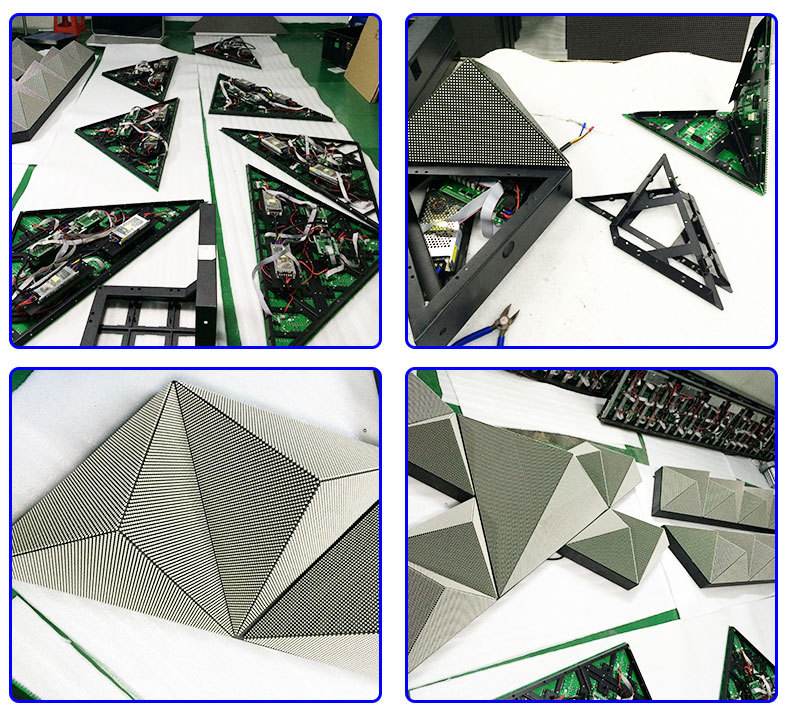

LED 3D DJ table, composed of LED shaped module splicing
LED pixel density 43264 points / square, high-definition display, the effect is delicate
Can be assembled and disassembled for easy and quick installation
Synchronize music and effects with German MADRIX softwar
Module parameter
No. Name Specification Model Other Notes
1 point spacing 5mm
2 pixels composition 1R1G1B
3 package model SMD3528 white / black light
4 Module size 160mm*160mm
(Width Height)
5 scanning method 16 sweep
6 display module resolution 32*32 points
7 driver chip JXI5020
8 row tube drive 4973
9 working voltage DC 4.2~5V
10 maximum power 12W
11 Working temperature -30 ° C ~ 60 ° C
12 module weight 0.5Kg
Structural parameters
No. Name Specification Model Other Notes
1 Box material Iron box or aluminum box
2 cabinet color black
3 box shape Rubik's cube structure
4 Box size Thickness 90～110mm
5 Full screen size 3450*1300mm (279 PCS) Seat thickness to be determined
(Recommended with Rubik's Cube <1200mm)
2750*1300mm (225 PCS)
4150*1300mm (330 PCS)
6 Point density per unit area 40000 points / square meter
7 full screen brightness 1200 ~ 1500nits
8 white balance color temperature 6500～9600K
9 horizontal viewing angle 120°
10 vertical viewing angle 120°
11 screen flatness ≤0.1mm
12 full screen weight ≤120Kg
13 maximum power consumption of the entire screen 3000W
14 Video power consumption ≤1500W
15 frame change frequency 60Hz
16 refresh frequency ≥1000Hz
17 grayscale / color 16bits / 100 million
18 brightness level Manual adjustment of 256 levels
19 Input signal RF, S-video, RGB, RGBHV, YUV, YC&Composition, etc
20 Control System System Mode
21 Mean Time Between Failure >50000 hours Common Equipment
22 Service life >100000 hours Luminous tube service life
23 blind spot rate 3/10000 discrete distribution
