LED Dimmer Switch Trailing Edge 200W Features:

1. Best compatibility, compatible with more than 95% of LED lights and 100% of incandescent & halogen.

2. Overheating protection, automatic overload protection and short-circuit protection.

3. Without neutral wiring, 2 wires.

4. CE approval by Intertek.

5. Dimmer type: trailing edge.

6. Control type: push on and push off, rotary to dim and brighten.

7. Minium brightness adjustable.

8. 1-way or 2-way connection.

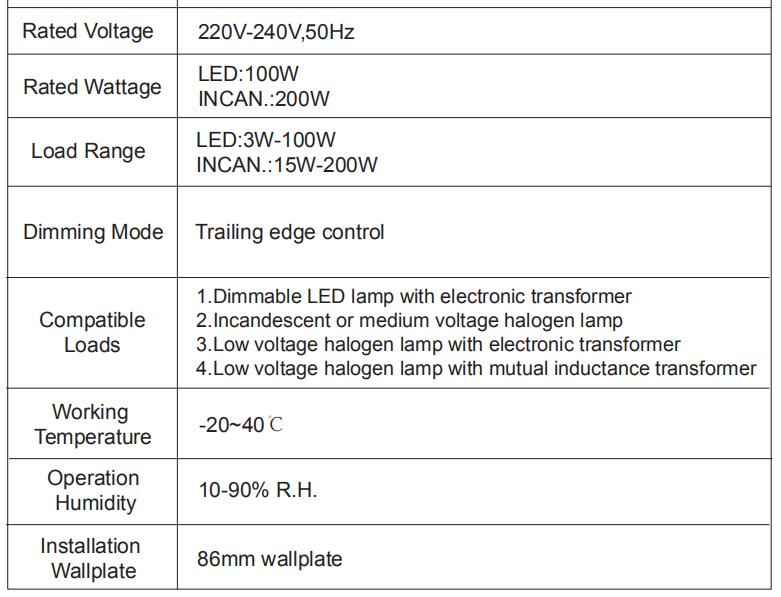

Technical Data:

Wiring Diagram：

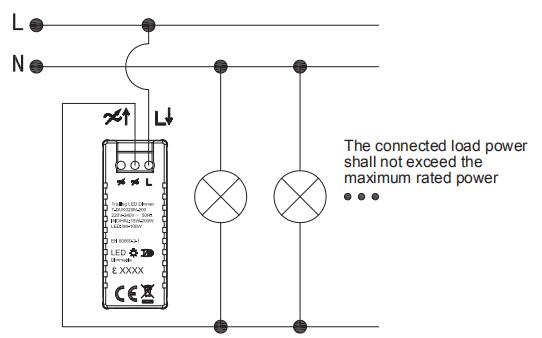

1-way wiring diagram

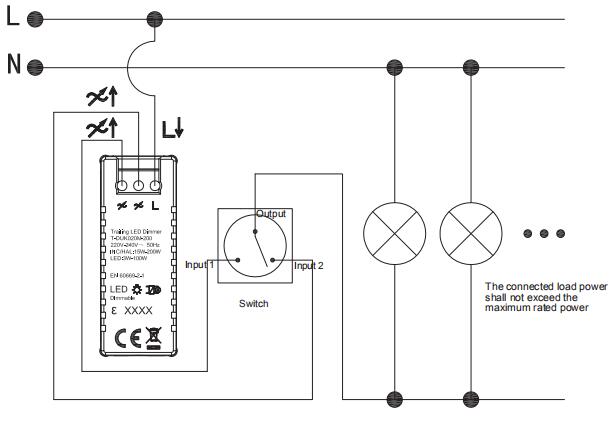

2-way wiring diagram:
