5V 40A power source, 1 pc supports 7pcs P8 outdoor LED module;
Spare parts provided based on quantity;
Each cabinet uses 1 pc receiving card to make sure high refresh rate.
Module size is 256x128mm
Brightness is adjustable，Display speed is adjustable
Letter font and letter size are adjustable
Housing material is Aluminium alloy and housing color is black
Default function is text letter, time and date;temperature
Size can be customized
Application:

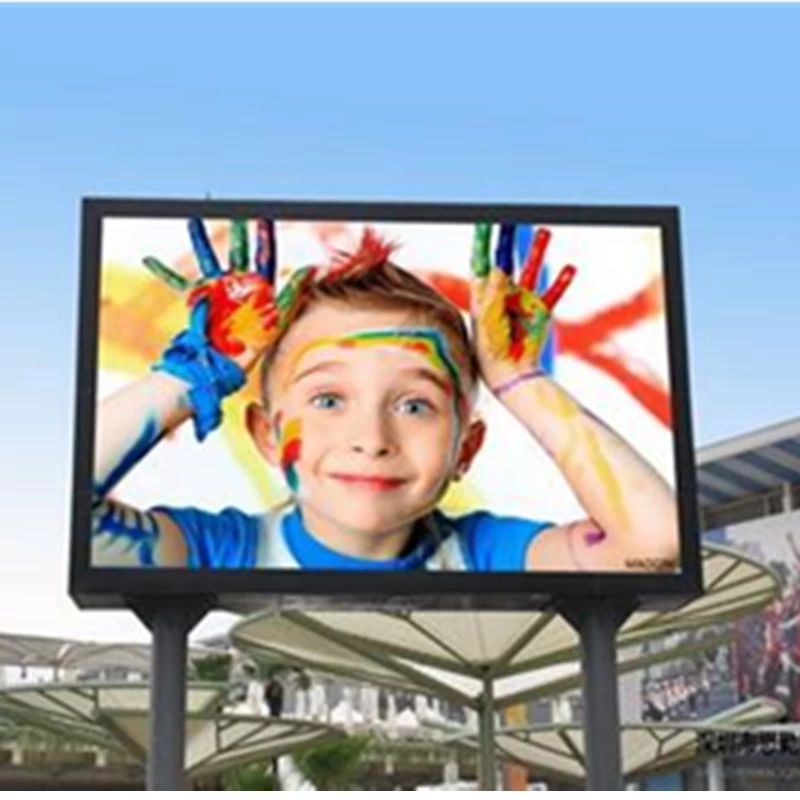

Outdoor LED billboard is used for highway advertising.
Specifications:
|
Item
|
Specifications
|
|
Voltage
|
220 or AC110±10% 50Hz
|
|
Arrangement
|
1R,1G,1B
|
|
AVE.Consumption
|
400W
|
|
Max.Consumption
|
800W
|
|
Best viewing distance
|
≥10m
|
|
Visual angle
|
120(Horizontal),120(Vertial)
|
|
Temperature
|
storage-20ºC~+70ºC
working-20ºC~+45ºC
|
|
Screen size
|
768x768mm
|
|
Display Function
|
Texts,Numbers,Symbols ,picture, video
|
|
Brightness
|
≥6500cd/m²
|
|
Life span
|
100000 hours
|
|
Driving mode
|
1/2scan constant current
|
|
Waterproof level
|
IP65
|
|
Humidity
|
10%-90%RH
|
|
Control way
|
Synchronous
|
