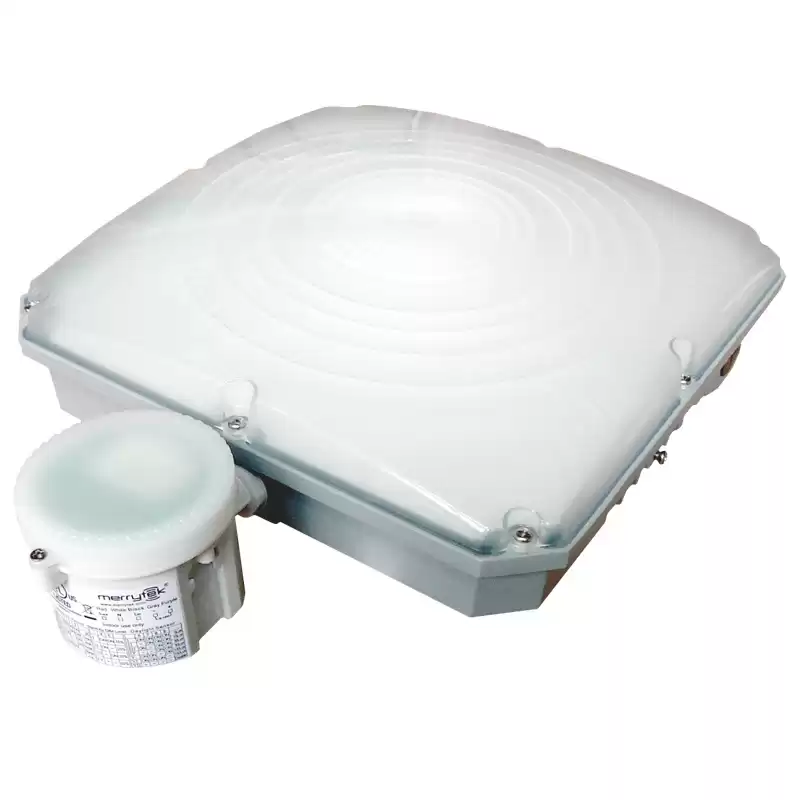

LED Intelligent Canopy Light Sensor Control

The smart LED Canopy light is consists of traditional canopy, Sensor, wireless gateway, wireless wall switch and software services. Indoor applications with ceiling: Office, school, car parking, driveway, underpass and so on.

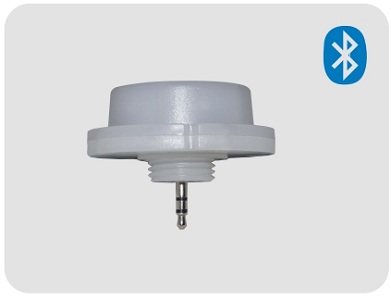

The Morstar canopy smart light adopt to bluetooth fixture sensor is a complete sensing and lighting control node power from its attach light fixture. For sensor is combined with a configurable behavior profile makes the fixture.  The sensor an integral component of an intelligent lighting control and sensing solution. With integrated wireless communication for data transmission and remote configuration as well as autonomous fixture-level control, this sensor brings advanced lighting automation to a whole new level.


Meeting DLC 5.2 networked lighting control system.
Localized light control: Light-level schedules, preferences and profiles for each fixture.
Allowing the sensor transmit beacons as well as support communication with lighting control devices and other sensor.
A digital passive infrared sensor combined with ambient with 3difference modes as options.
Captured ambient light information is locally processed to raise and lower light levels.
Room and Zone Control

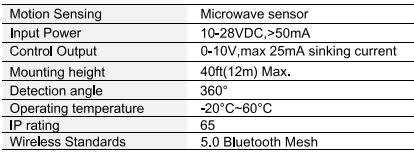

Technical Data

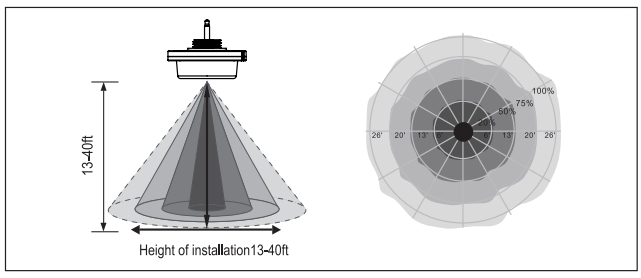

Sensor Coverage

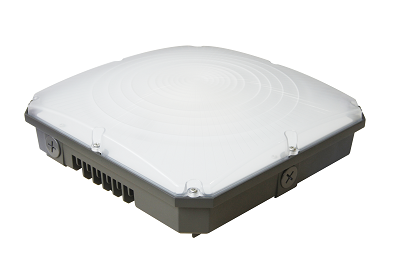

LED Garage Canopy Light with Microwave Sensor

* The canopy adopt to fins design, advective grooves between fins are good for heat dissipation.

* The light using professional light distribution technique, high light reflectivity reflectors 155 degree beam angle available; Light transmisson rate of lens is over 90%

* It complies with UL certification, safe and reliable.


Product Parameters


Product Number

MS- EGC05B-28W
MS- EGC05B-40W
MS- EGC05B-60W
MS- EGC05B-70W
Working Voltage AC120-277V
CCT 4000K,  5000K, 5700K
Lamp Bead Model Samsung
Light Efficiency 120Lm/W
CRI Ra> 80
Environment Location

Wet Location

Working Temperature -40°F~104°F
Life Span

Over 50,000 Hrs

Lamp Shell

Brown
