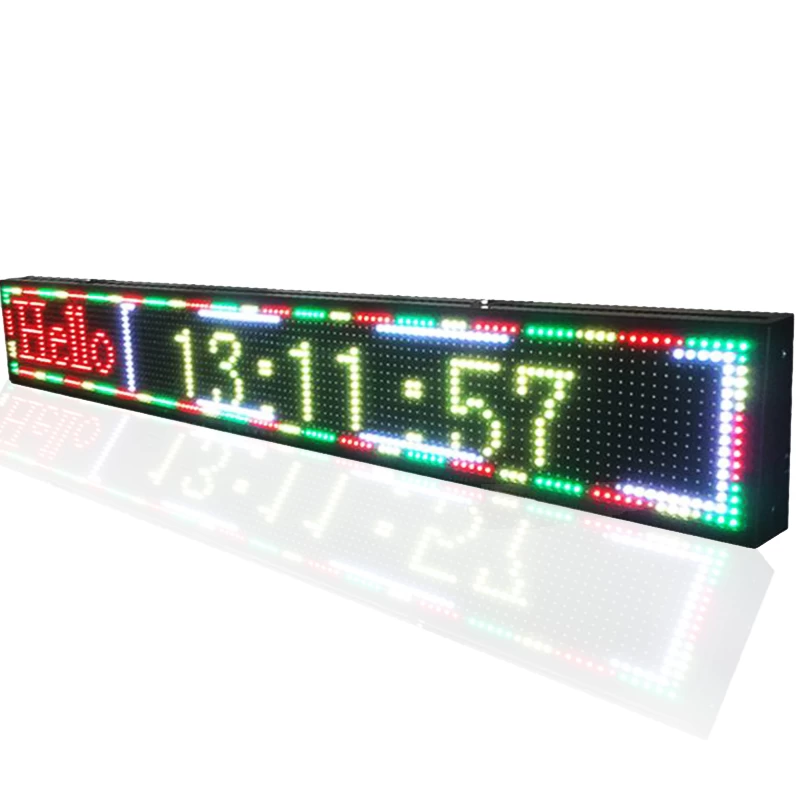

LED OUTDOOR Sign LED Display USB Control Open Running Message Board

P10 type is SMD ,Size is 23x359 cm, Display Function:Date,Text, Temperature,Pixel:10 mm Manifestation contents: Many Country Language and Pic.



With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.

Specifications

* Technology: LED
* Format: Full DOT Matrix(Alpha Numeric)
* Character Color: RGB
* Pixel Size: 10mm
* Interface: Cable Connection & USB
* Functionality: Message Display
* Enclosure Color: Black
* Display size: 23x359cm

* Save Energy & Save Money

* Connects to Regular 110 or 220 Volt Power

*Display Your Messages in Almost Any Language

Package including

*LED sign 1 PCS (size 23x359cm / 9x 141 inch)

*Signal connection cable

* Professional installation bracket

*USB with free software and English user manual


Feature & Function

P10 LED Module model
Color RGB
LED Type SMD
Module Resolution W32 X H16
Module Size(MM) W320 x H160
Driving Method 1/4 scan
Led display parameter
Voltage 220V or 110V ±10%
Material Outdoor Aluminum Frame Waterproof (IP45)
Cabinet Size (mm) W3590 x H230 MM (9x141 Inch)
Power Consumption Max (w/set) 100 Watt
Brightness(CD/㎡) ≥5500
Viewing Angle  120º/70º
Theoretic LED Working Life More than 100000 hours
Control Method USB control(network port,WIFI ,optional)
Display function Date, Text, Picture, Logo
