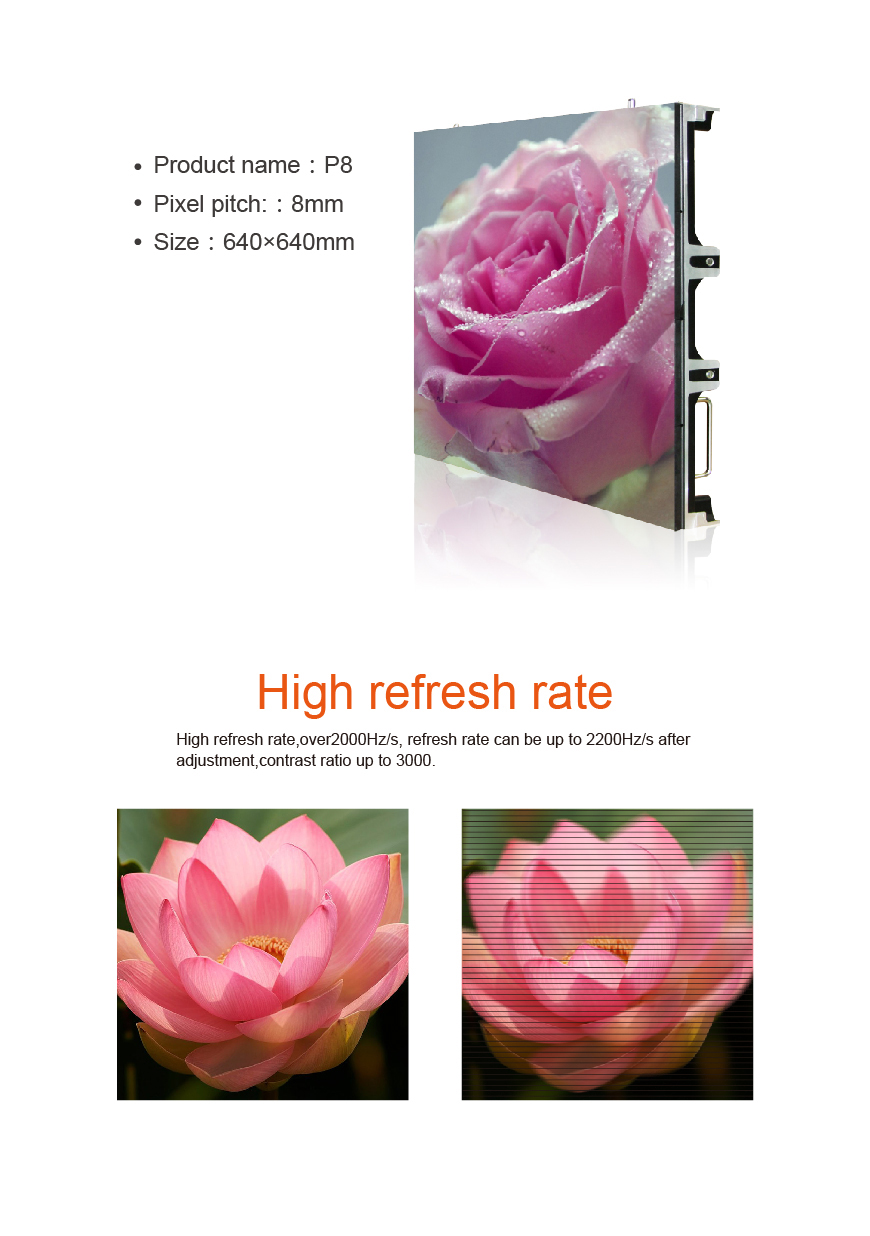

High Brightness Large Outdoor LED Video Display P8 for TV studio
Features of 640x640mm cabinet size outdoor rental screen P8:

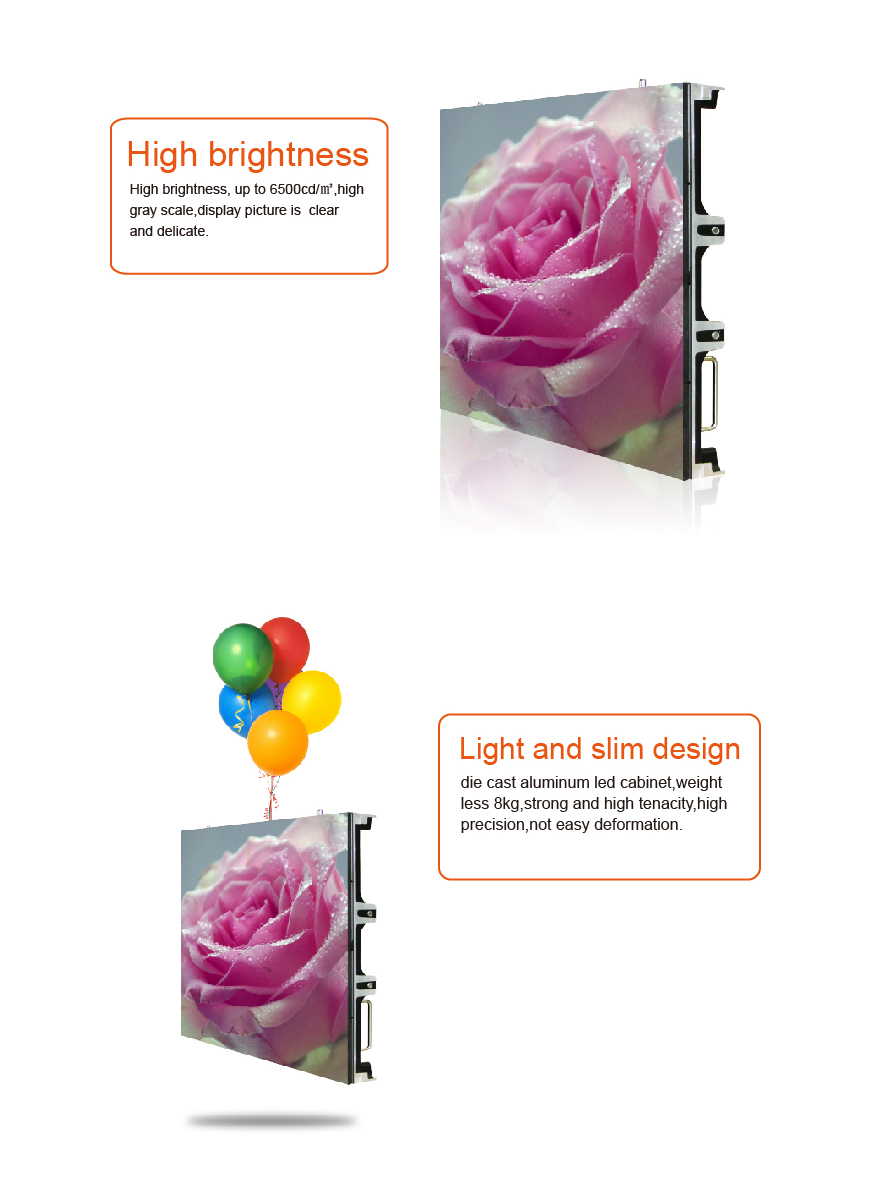

1. High brightness reach to 5500cd/㎡.

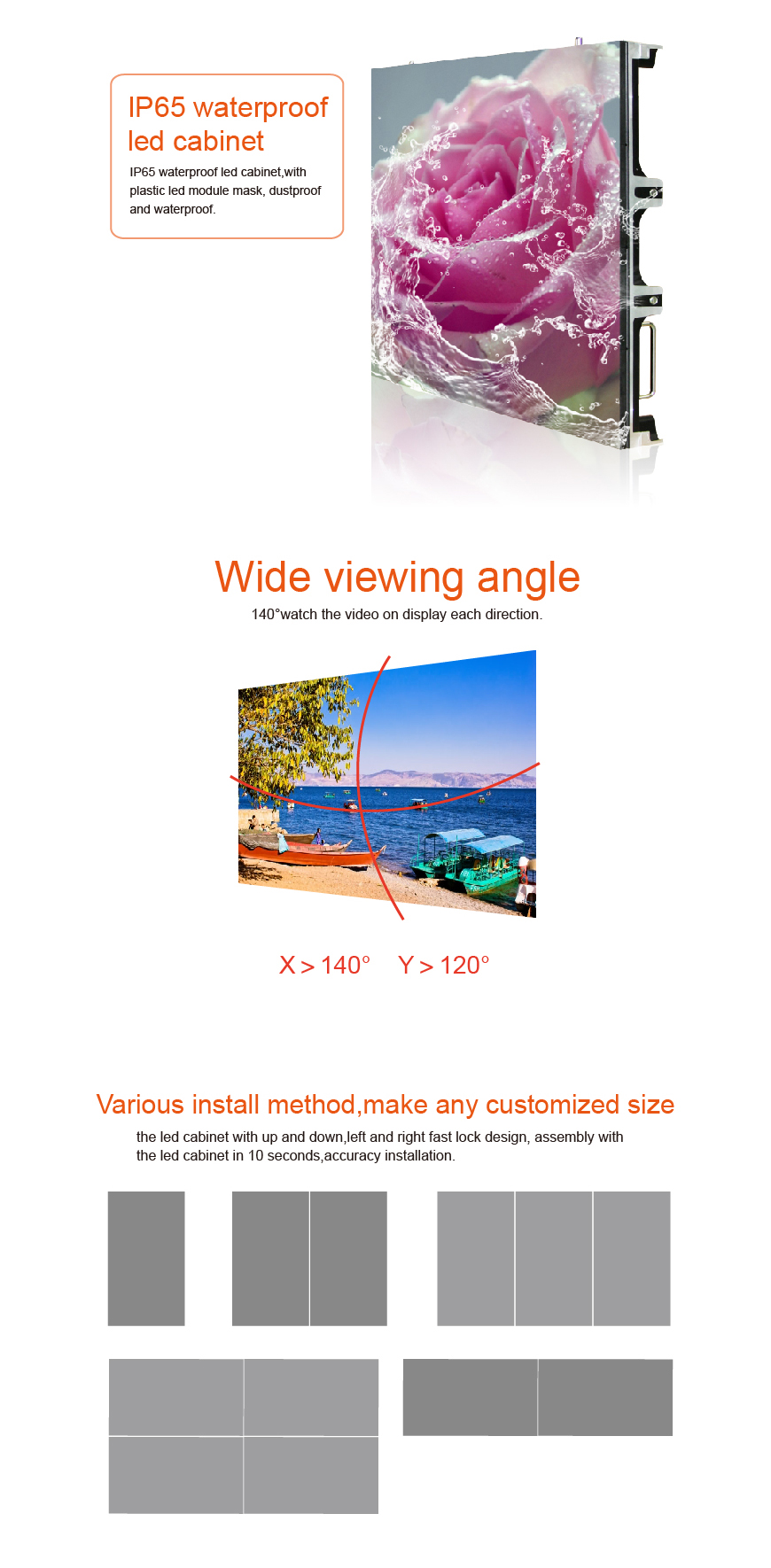

2. High waterproof and dust-proof with IP65.
3. Good heat dissipation and cost-effective.
4. SMD3535 for outdoor usage with big viewing angle.
5. Side lock system with quick and seamless installation.
SPECS
Pixel Pitch
|
8mm
|
LED Package
|
SMD3535
|
Pixel Density
|
15,625 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 5500cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
256x128mm
|
Cabinet Size
|
640x640mm
|
Cabinet Material
|
Die-casting Aluminum
|
Viewing Distance
|
8-100M
|
Drive Mode
|
1/4 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
