LED T8 tubes fixture integrated with Aluminum base

LED T8 tubes 5W-26W, Aluminum base with PC cover, G13 base, different tube length, white PC cover , good replacement for traditional Fluorescent tubes, but higher lumen, more energy saver, and longer life time.




LED T8 tubes integrated fixture 5W,9W,12W,18W,22W

various tube length, white PC cover and aluminum base AC85-265V

Good replacement for traditional fluorescent tubes, but higher lumen, more energy saver, and longer life time.


The product scope with specification list as follow chart:

Model Size Watt Voltage LED Chip & Qty CT Beam Angle Lumen Efficiency Ra PF Pcs/CTN MOQ
LED-T8F-5W 300*30*36mm 5W AC85-265V SMD2835*24pcs 2700K-6500K 120°
80-120LM/W 70/80 0.5/0.9 30 2,000
LED-T8F-9W 572*30*36mm 9W AC85-265V
SMD2835*48pcs
2700K-6500K
120°
80-120LM/W
70/80
0.5/0.9
30 2,000
LED-T8F-12W 880*30*36mm 12W AC85-265V
SMD2835*72pcs
2700K-6500K
120°
80-120LM/W
70/80
0.5/0.9
30 2,000
LED-T8F-18W 1178*30*36mm 18W AC85-265V
SMD2835*96pcs
2700K-6500K
120°
80-120LM/W 70/80
0.5/0.9
30 2,000
LED-T8F-22W 1478*30*36mm 20-26W AC85-265V
SMD2835*144pcs
2700K-6500K
120°
80-120LM/W
70/80
0.5/0.9
30 2,000

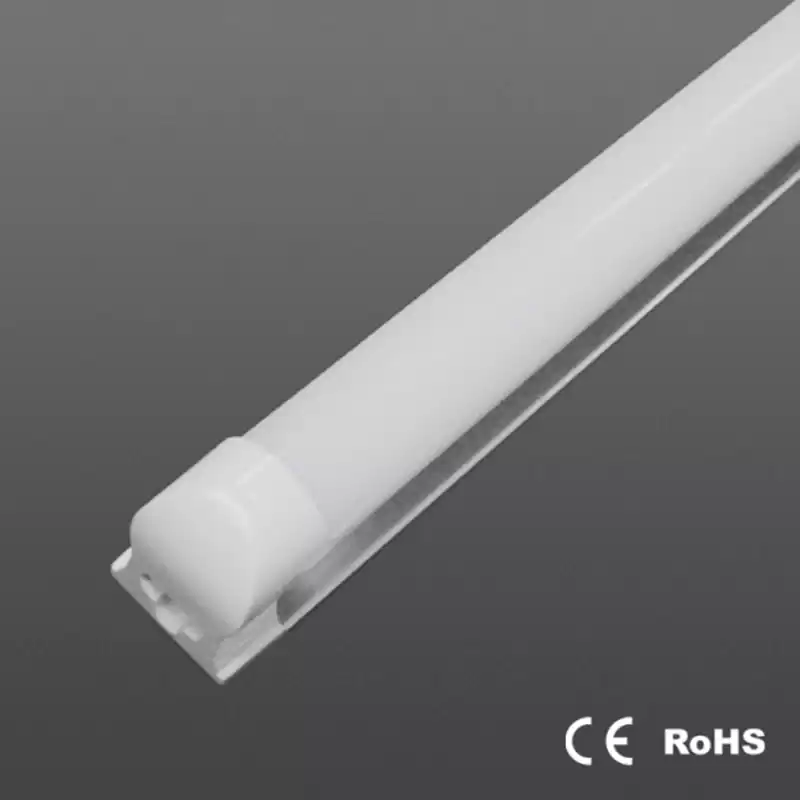

The lamp apperance photos as below:

LED T8 fixture Tubes integrated

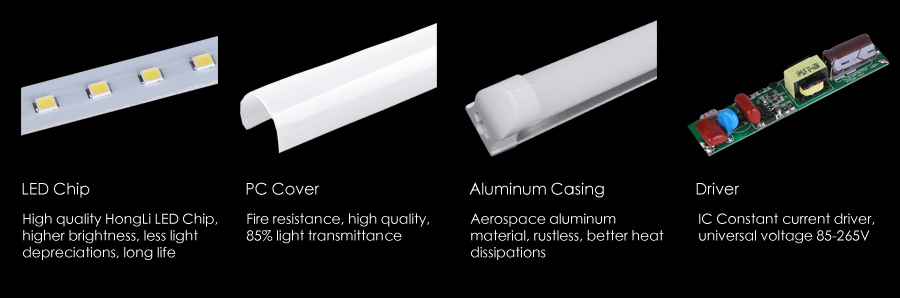

Components Details:

LED T8 integrated Tubes


Our products Advantages:

1.Energy-saving, Environmental protection

2.Superior LED chips, high efficiency and power saving

3. Good heat insulation, longer lifespan>30000H

4.Anti-moisture and No glare, No strobe light

5.Easy to install, transit no broken

6.Factory - competitive price

7.CE,ROHS,GS,UL etc. certification.


Questions maybe you concerned:

Q1, How can I order your product ?

You can send emails or call us to let us know what's your interested items at first, then we can discuss how to deal one step by one step.

Q2, Can I order one sample to check your quality?

For sure, we offer free sample within 7days, but you need to afford the courier cost.

Q3, What about the lead time?

Normally 20-30days after signed contract.

Q4, What's the payment terms?

T/T 30% deposit in advance, and 70% balance against the shipment documents or L/C at sight.

Q5,How about the warranty?

Normally we promise 2 years warranty times, it's usually depend on the final deal prices between us, the high standard quality products with best service will be offered by us from hearts in honest.
