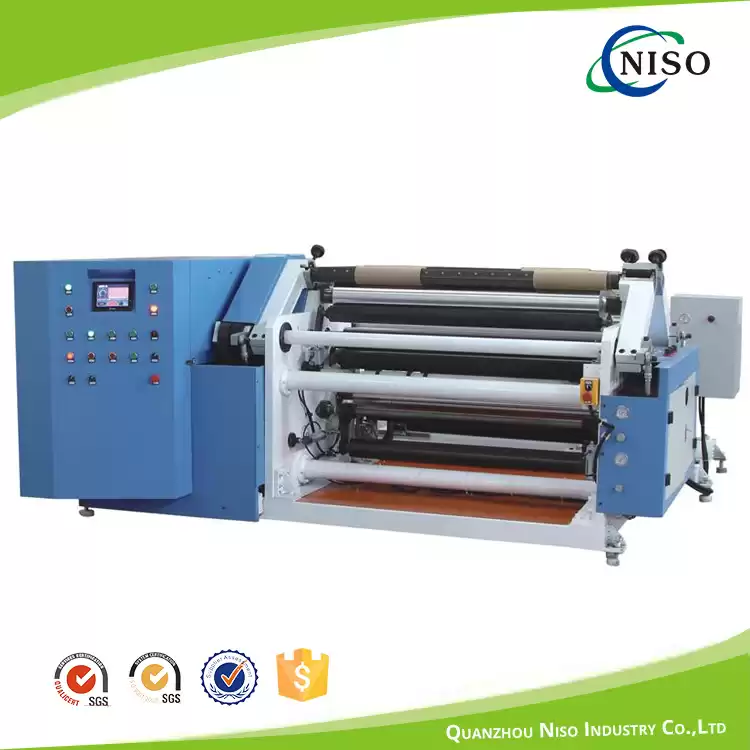

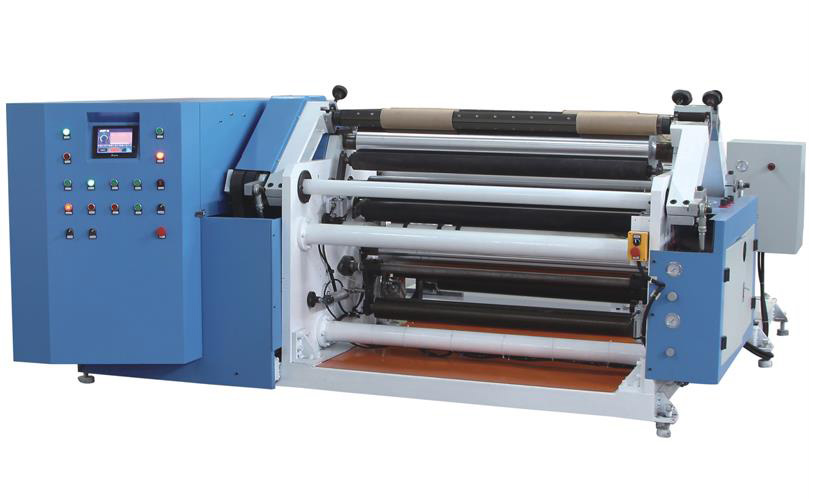

LF-130-SM Diaper PE Fim Slitting Machine
processing method
Some description of the details
application
Suitable for the high speed requirement about the slitting of paper , film and other jumbo roll
Main features
1、Unwinding tension control system use magnetic power brake (with braking energy feedback unit ) or active unwinding method
2、Slip type inflatable shaft was chose to meet the requirement of the high slitting speed
3、Each winding system was driven by the independent electric motor
4、Winding tension be controlled automatically ;taper tension could be preset
5、Auto Web-guider
6、fault Diagnosis system
7、Option
8、intelligent management system
Main parameters
|
Type
|
HFQW-1300
|
|
machine speed [m/min]
|
2-280
|
|
structural type
|
double plate
|
|
core diameter [mm]
|
76/3＇
|
|
winding method
|
duplex
|
|
tension control
|
frequency motor
|
|
web guider
|
edge
|
|
Max winding OD [mm]
|
800
|
|
Min slitting width mm
|
（for flat knife）：8mm，（for circular knife）：10mm
|
|
KW Rated Power
|
18
|
|
W*H*L mm
|
1600/1400*3200
|
|
KG total weight
|
3000
|
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
