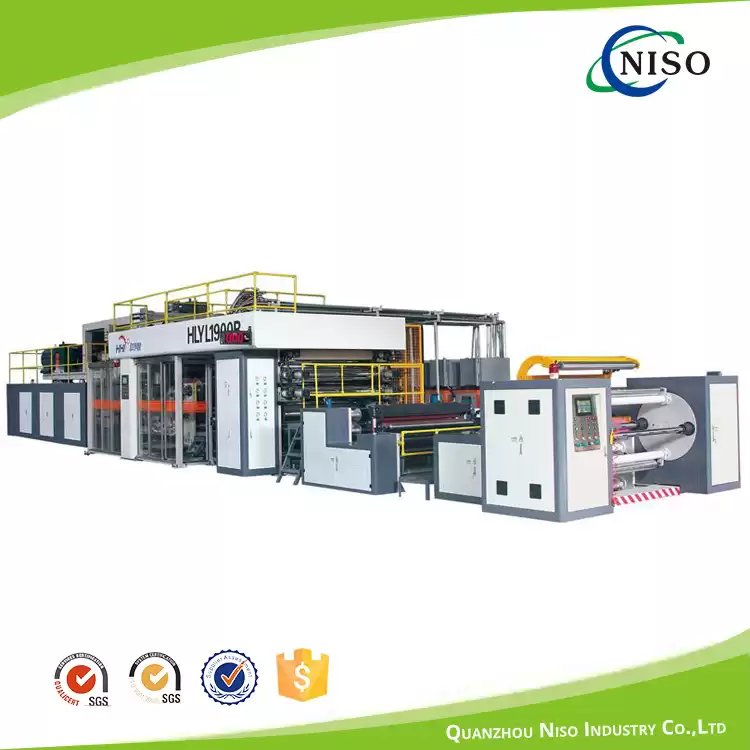

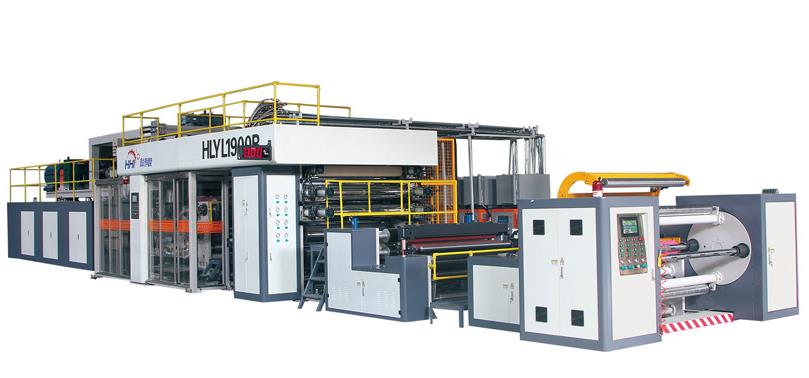

LF-190-PF Full Servo Full Servo Baby Diaper Breathable Film Casting Machine
Overview
LF-190-PF Full Servo Breathable Film Casting Machine Line consists of six units: Extrusion Unit, Casting Unit, Stretching Unit, Embossing Unit, Corona Unit, Winding Unit and Electronic Control Unit. The Embossing Unit can be freely combined according to the customer’s requirements. The HLYL1900B has the features of fast-running speed, high tension precision, small-error on film thickness, good evenness, multi-flexible, simple-operation and convenient.
Main features
1.Using independent servo motor for transmission, the Stretching Unit has the feature of stable speed and high-precision function, it can improve product quality effectively.
2.This machine full servo motor motion control air permeable film production line has humanized and intelligent programming, resulting simple and fast operation. The screen could control the temperature of each part of the machine full servo motor motion control air permeable film production line. Besides, the stretching speed is calculated intelligently. With a simple touch on the screen, the production real time data would be achieved efficiently.
3.With stable extrusion on film amount, the weight and thickness of the film could be well controlled.
4.Large speed monitor screen, convenient for operation.
5.The Extrusion Unit adopts hydraulic system for reciprocating motion, therefore it has the feature of stable swing and steady speed, which greatly improves the flatness of the film.
6.With meter-calculator, the alarm alerts while the roll reaches the length pre-set, then overturn and connect material automatically. The function can be completed automatically without staff operation.
7.Safety and humanity: Cast Cooling Unit is provided with safety protection door, and has installed optical fiber detection alarm, it can effectively prevent accidents from mal-operation and protect personal safety of the workers, ensuring the safety of production.
8.Nanjing-Austria technology is introduced to the technological process.
9.Wide application range: could be applied to the production of PE cast film, breathable film for hot packs and diapers.
Main Technical Parameters
|
type
|
HLYL1900B-2900B
|
|
Machine speed
|
230m/min
|
|
Production speed
|
max150m/min-200m/min
|
|
Basis weight range
|
(18-60)±2g/m2
|
|
Product structure
|
Monolayer
|
|
Extrusion capacity
|
Min 500kg/h
|
|
Screw diameter
|
Φ130
|
|
Product width
|
1200mm-2300mm
|
|
Winding diameter
|
max600mm
|
|
Corona
|
online corona treatment(both single-sided and double-sided
|
|
Scrap
|
Online recycling
|
