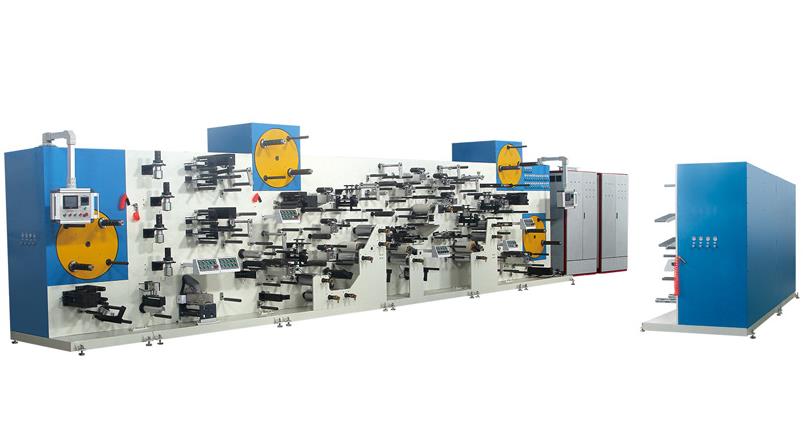

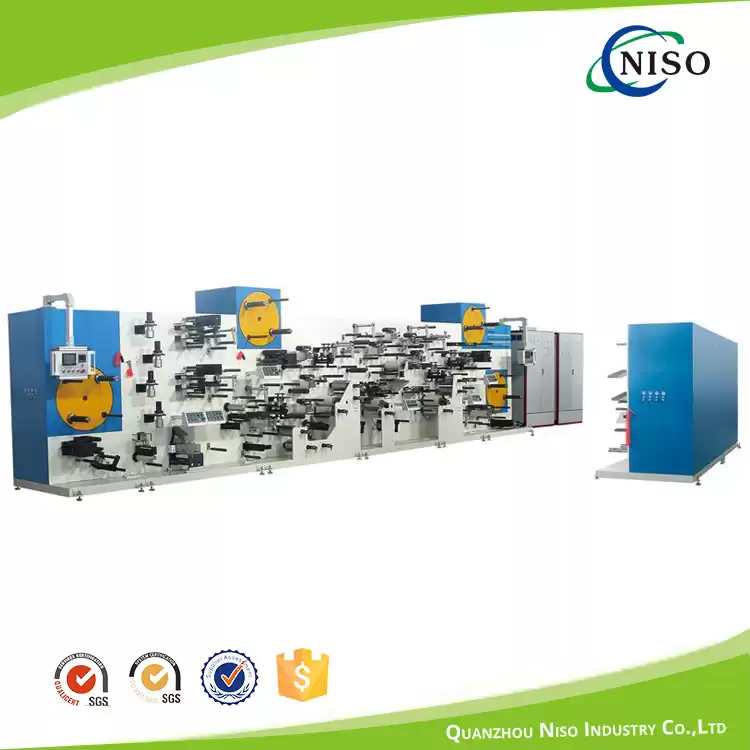

LF-400-PC Baby Diaper Side Tape /Hook/Y-Bond Hook/Easy Tape Machine

LF-400-PC baby diaper side tape /hook/Y-bond hook/easy tape machine is a professional manufacture hygiene materials machinery.



LF-400-PC Baby Diaper Side Tape /Hook/Y-Bond Hook/Easy Tape Machine

Baby Diaper Side Tape /Hook/Y-Bond Hook/Easy Tape Machine



processing method

Unwinding film –compounded with the OPP by the in line craping coating – compounded with the CPP – scraping coating in line -- compounded with the hook—winding


application

the insert hook & Y-bond hook tape, the elastic Nonwoven Velcro tapethe disposable tape


main feature

1simplex or duplex winding and unwinding system

2non-stop relay of the raw material

 auto tension control for the winding and unwinding system

 knife coating to apply the hot melt adhesive

 tension could be control independently for different working sections

 independent cooling device and electric motor for different working sections

 all bearings of the guide roll were imported

 web-guider for different working sections before the compounding

 S type cooling roll and composite roll for different working sections

 Multi- section type cutting roll ; flat knife chose for the slitter

 hem device with high precision

 auto web-guider in the winding and unwinding system

 proximity winding

32 sets HMI

4programmable control system (Japan's Mitsubishi)


Option

fault Diagnosis system or intelligent management system



Main parameters


Type HZYT-200A/400A
machine speed [m/min] 10-120
structural type Single plate
core diameter [mm] 76/3
winding method duplex
tension control frequency   motor
web guider Edge leading formal
Max winding OD [mm] 1000
KW Rated Power 55
W*H*L mm 1550*2300*12000
KG  total weight 21000



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.



Factory processing map



Packing and packaging diagram


Our customers

After-sales service
