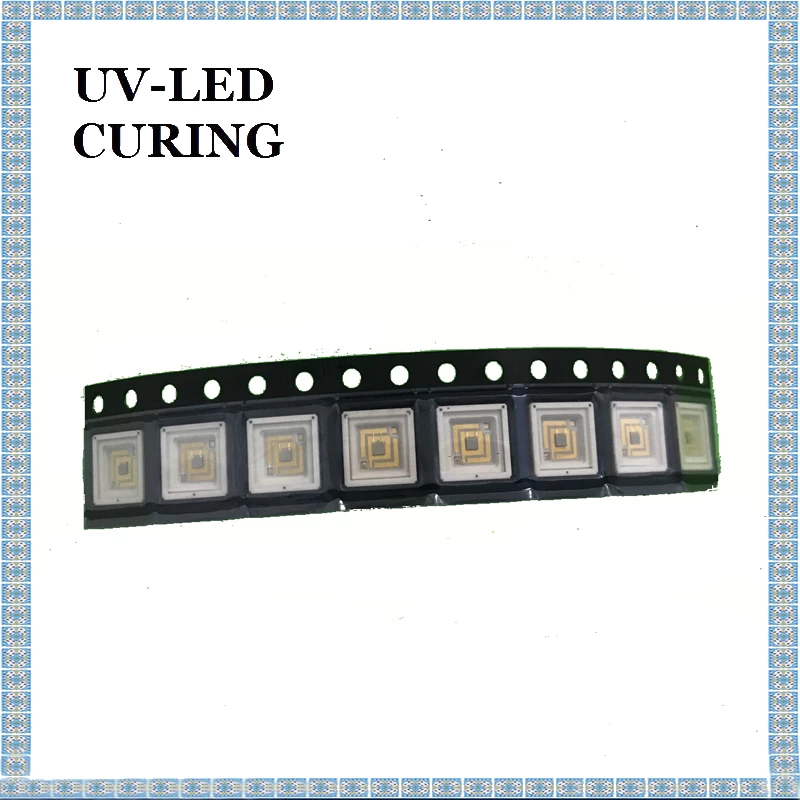

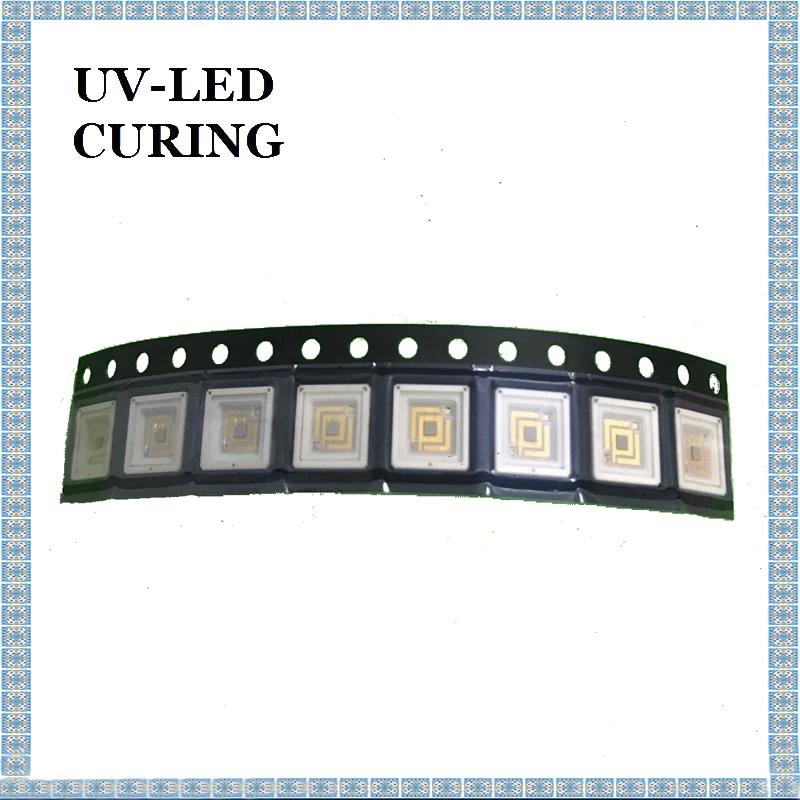

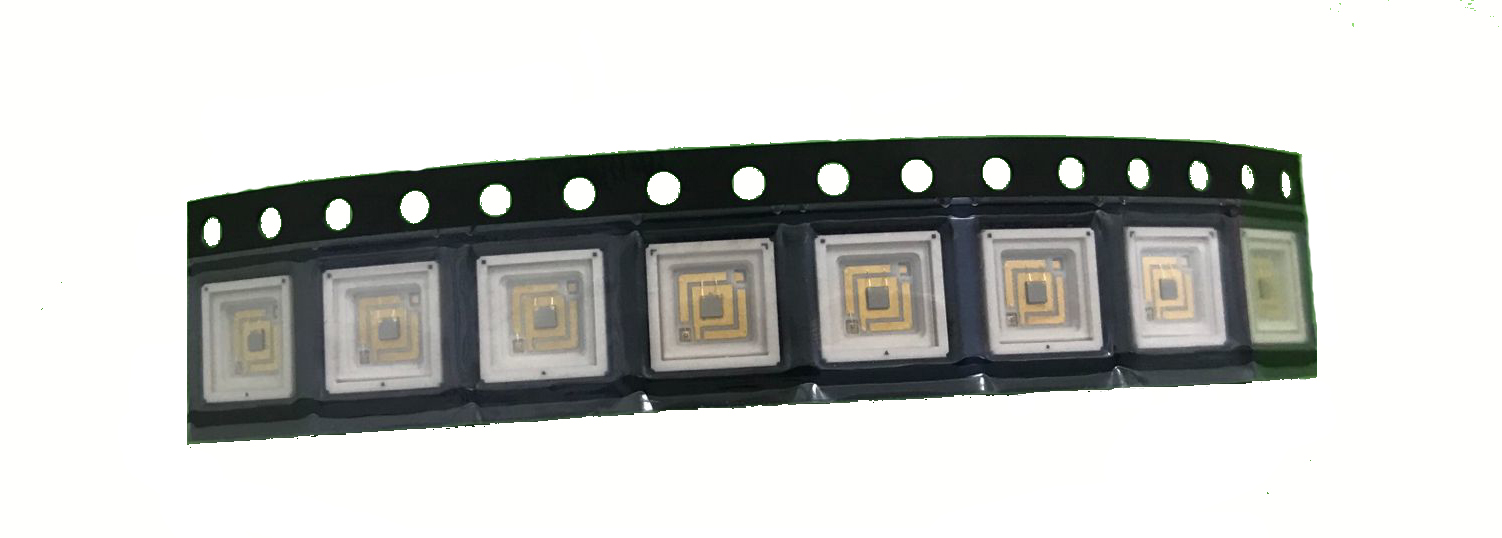

High power 70mW UVC LED UV Disinfection Lamp for water treatment air purification, for laboratory test.

Parameters of LG UVC LED :

Model : LEUVA66H70HF00

Forward Current : 500mA

Forward Voltage : 8.5V

Radiant Flux : 70mW

Power Dissipation : 4.25W

Lighting Color(Peak Wavelength) : 270~285nm

Wavelength : 278nm

Lens : Quartz Glass Lens

Angle of Beam Spread : 120°

Soldering Methods : Pb-Free IR- Nitrogen Reflow Soldering

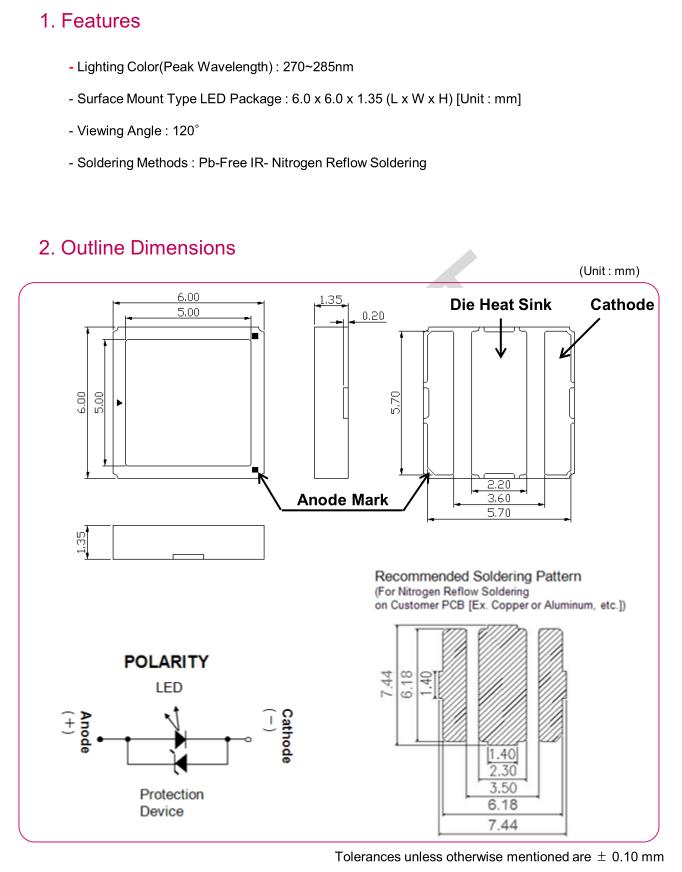

Surface Mount Type LED Package : 6.0 x 6.0 x 1.35 (L x W x H) [Unit : mm]

The applications of Low Power Consumption UVC LED :

1. Sterilization

2. Ozone Detection

3. Surface or water contamination Treatment

4. Protein Analysis

5. DNA Identification

6. Drug development

7. Optical sensing

8. Fluorescence Excitation

More details about UVC LED, please contact us : 1651063690jennifer@gmail.com (Jennifer)

Or Download

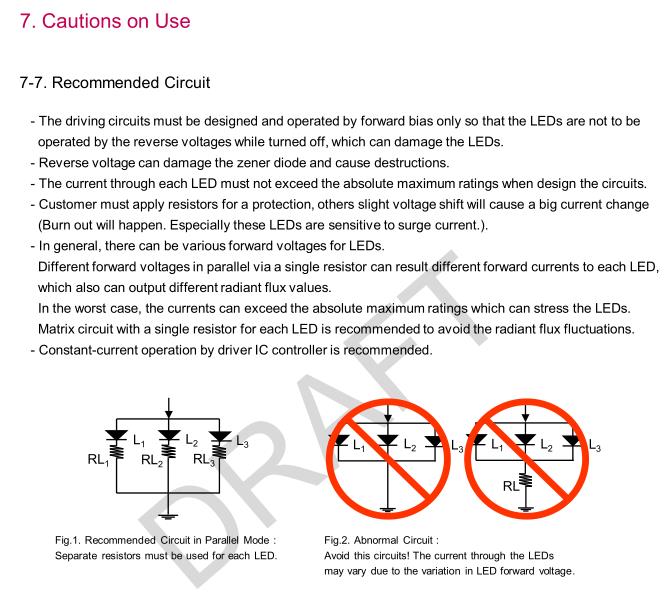

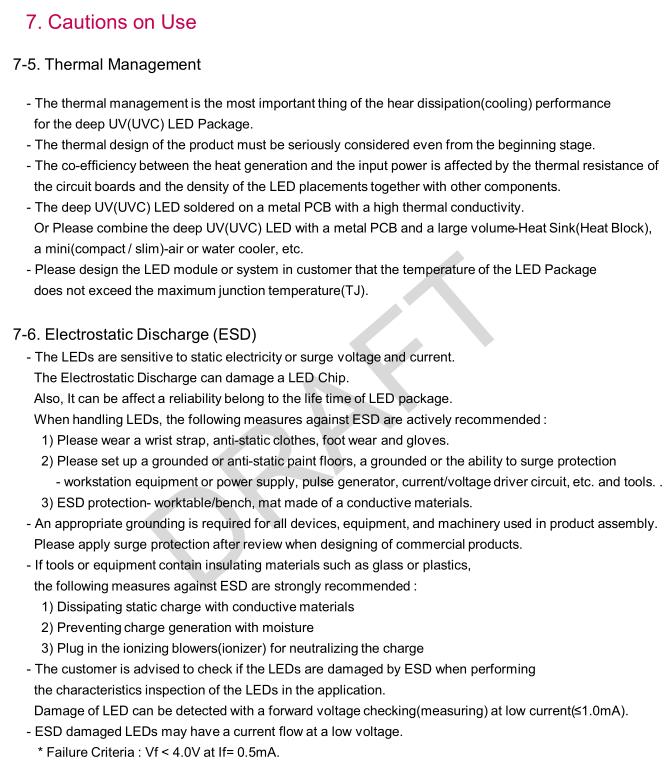

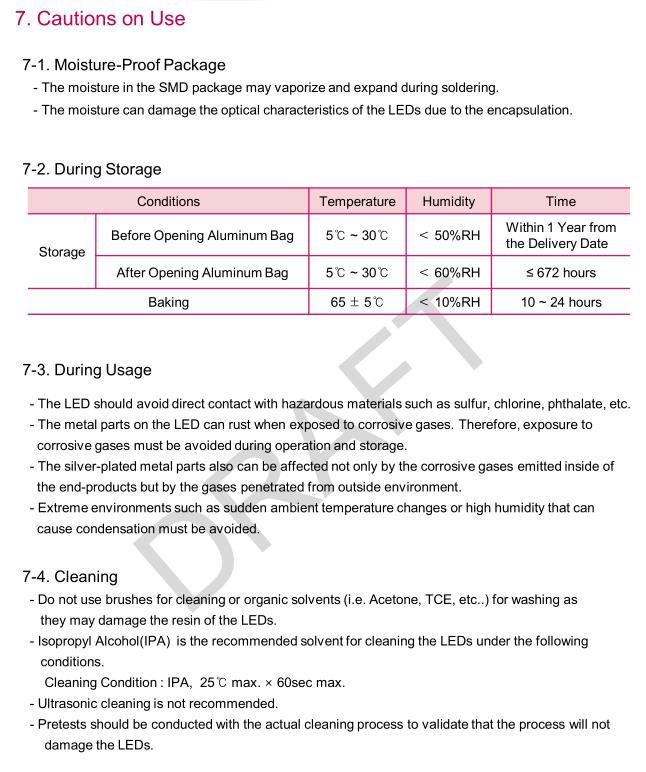

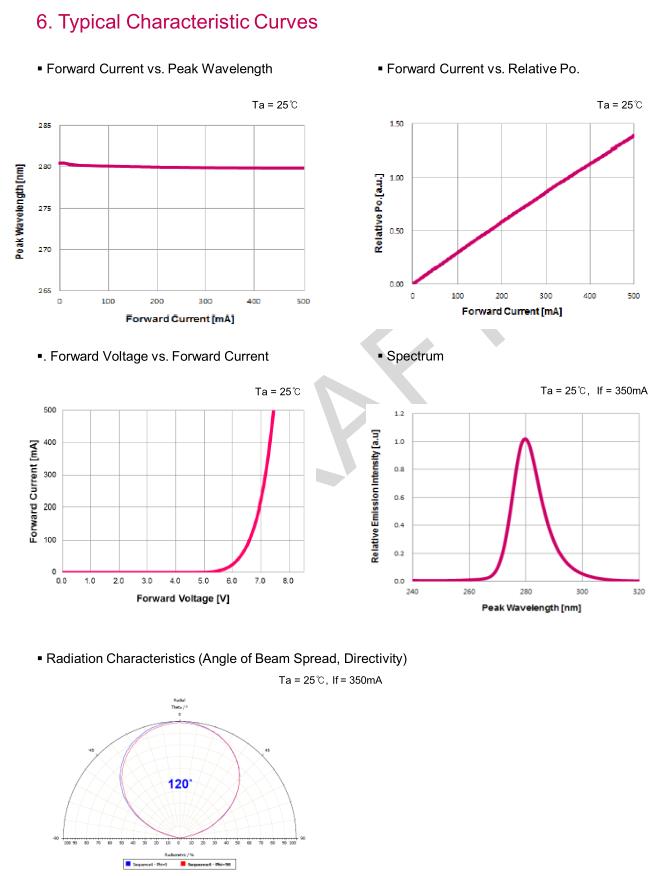

Specification of 278nm UVC LED :
